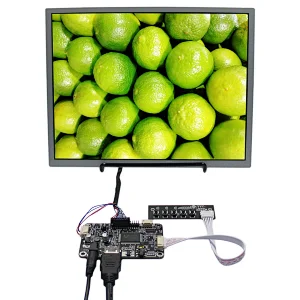

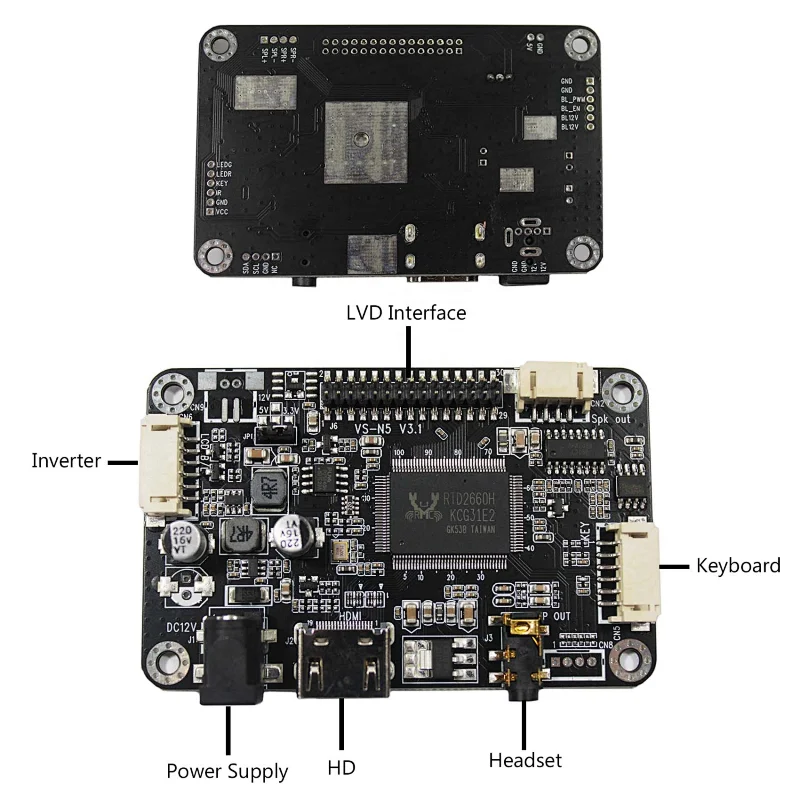

- LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

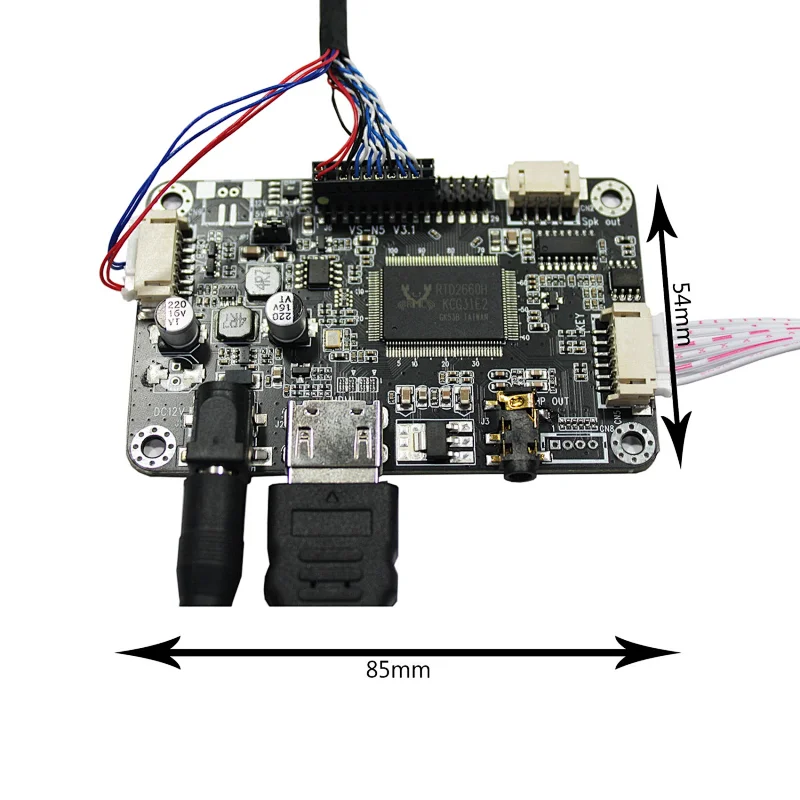

Board Size: 85mm x 54mm x 14mm - 12.1"LQ121S1L75 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 265× 205×10 (H×V×D)
Display Area 246 × 184.5 (H×V)
Brightness 330 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector
Backlight WLED

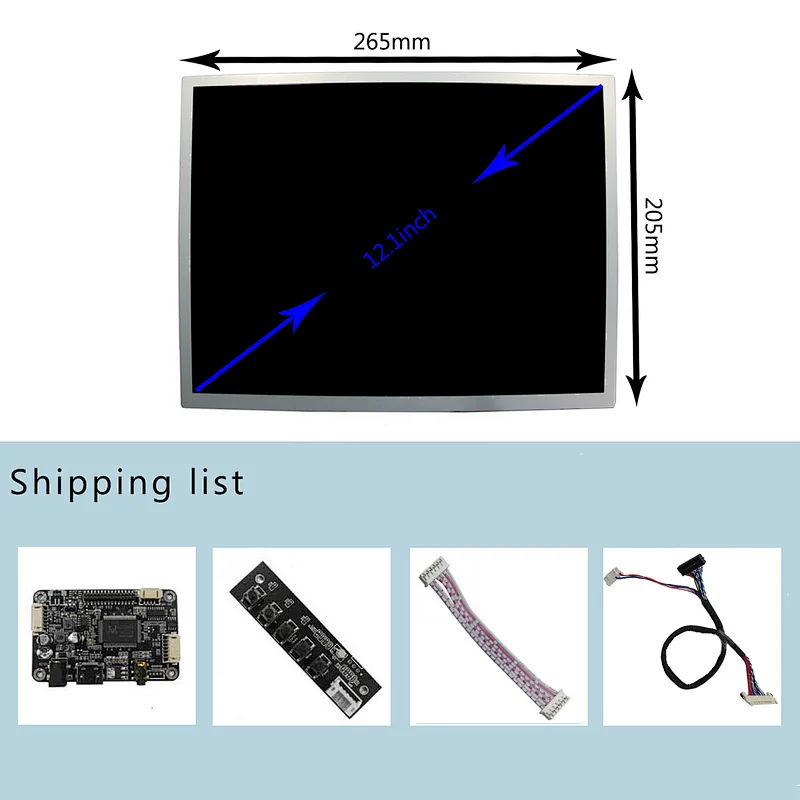

Input Voltage 3.3V (Typ.) - Packing list :
1× HDMI Audio LCD Controller Board
1× 12.1inch LQ121S1LG75 800X600 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cabl
