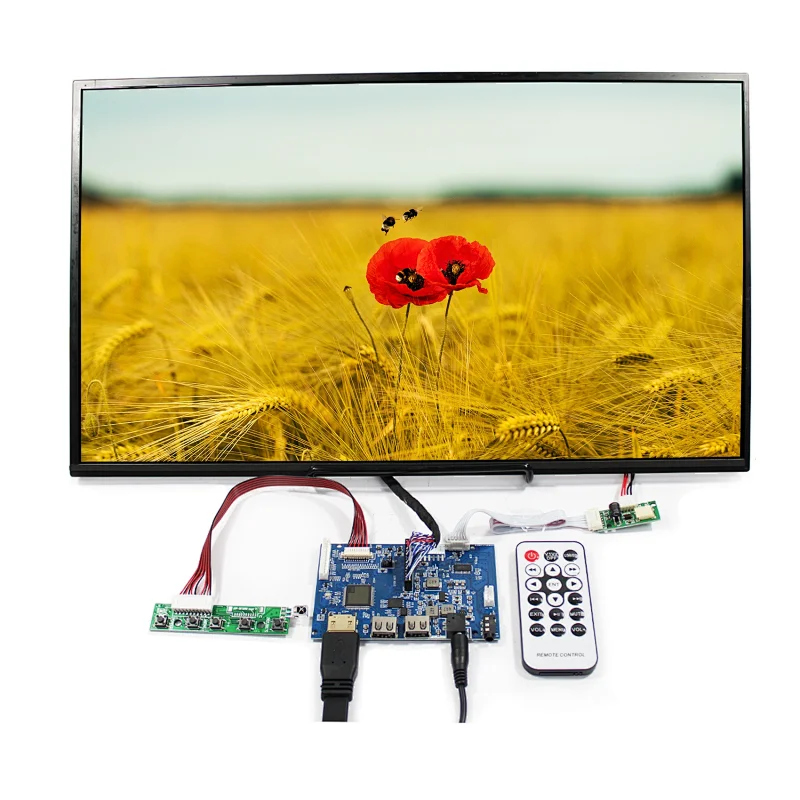

18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board
18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board

18.4inch IPS CLAA184FP01 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board

Model NO.
K002653 VS-TY2660H-V818 + CLAA184FP01
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
  • LCD Controller Board:
    HDMI USB Android LCD Controller Board Work for LVDS LCD Screen
    Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI1.4 USB
    USB Port:
    Support Video Play
    Support Connect Keyboard and mouse
    Support 5Vdc 500mA output
    Support OS
    Audio Input: HD-MI
    Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

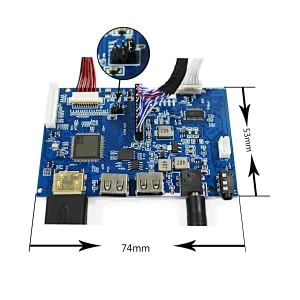

    Board Size: 74mm x 53mm x 12mm
  • 18.4"CLAA184FP01 1920X1080 LCD Screen:
    Pixel Format1920(RGB)×1080 [FHD]  119PPI
    Outline Size 422.5 × 248 × 6.3 mm (H×V×D)
    Bezel Area 413.11(H)×234.24(V) mm
    Brightness350 (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Signal Interface LVDS (2 ch, 8-bit) , 40 pins Connector
    BacklightWLED , 15K hours , W/O Driver
    Input Voltage 3.3V (Typ.)

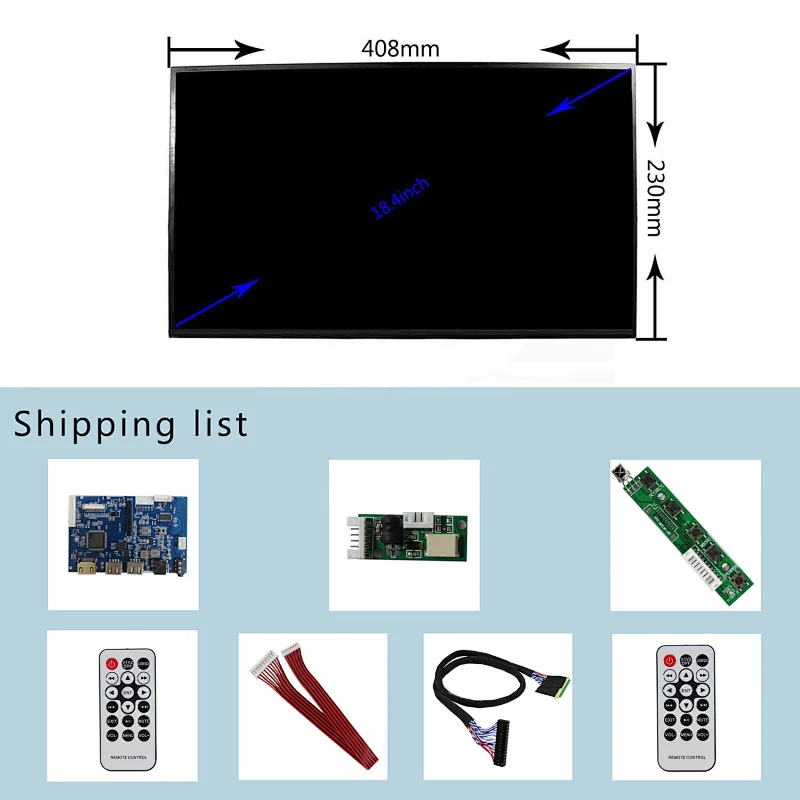

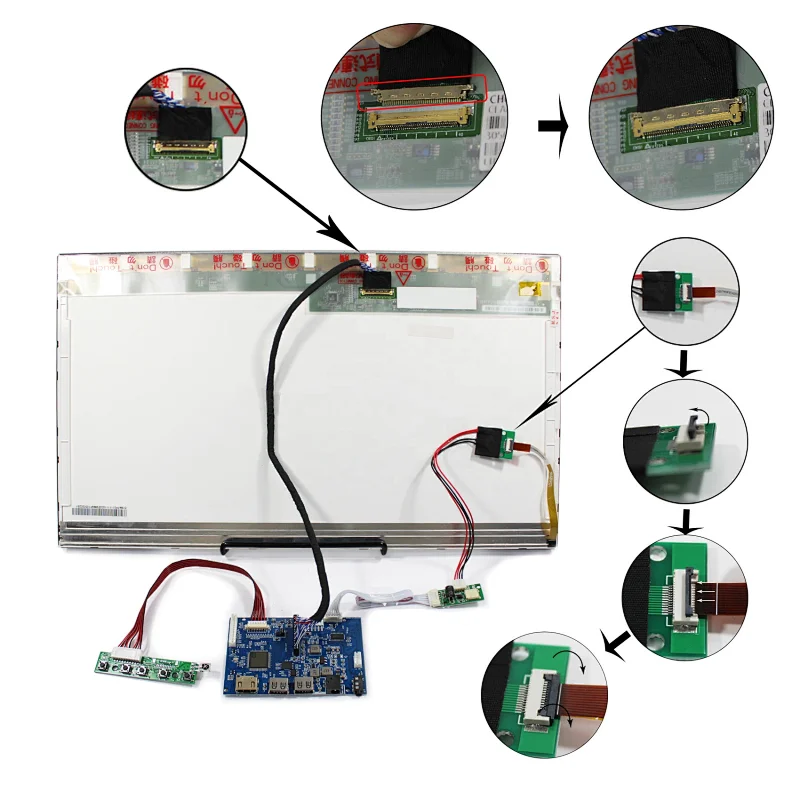

  • Packing list:
    1× HD-MI USB LCD Controller Board VS-TY2660-899
    1×18.4"CLAA184FP01 1920X1080 LCD Screen
    1× LVDS Cable
    1× Backlight Cable
    1× Keyboard With Cable
    1×Remote contro

Send Message

* clear input
*

Related Products

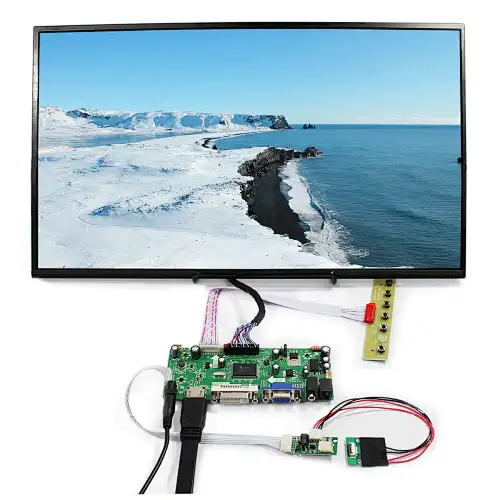

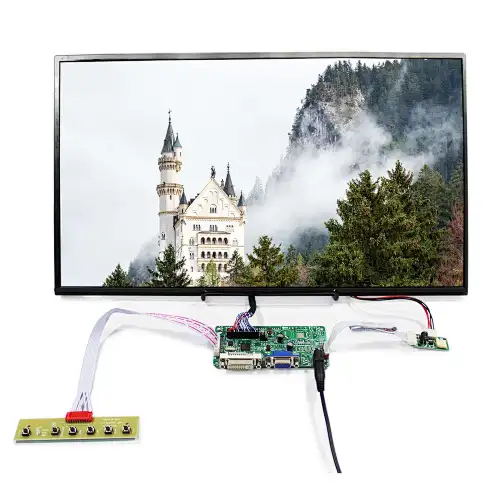

18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
Model NO. K002651-RT2270C-A + CLAA184FP01 1920X1080

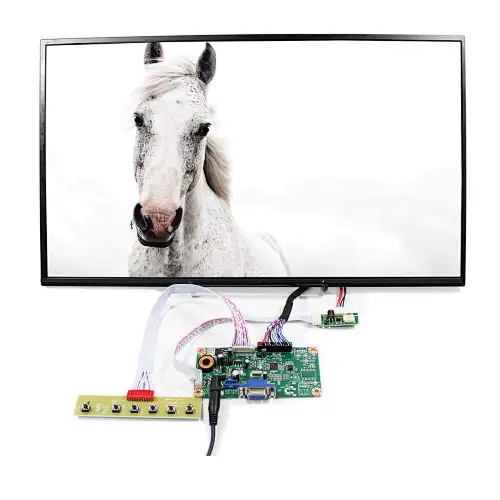

18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
