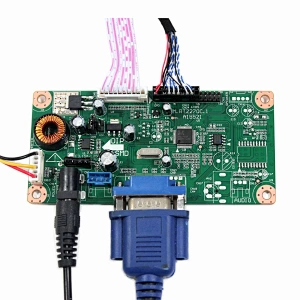

- LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 107mm x 52mm x 18mm - 8.0"PD080SL3 800X600 LCD Screen:
DisplayNew ModeTN, Normally White, Transmissive
Resolution 800(RGB)x600
Outline Size 200x152x10.8 (HxVxD)mm
Display Area 162x121.5 (HxV)mm
Brightness420 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/45/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

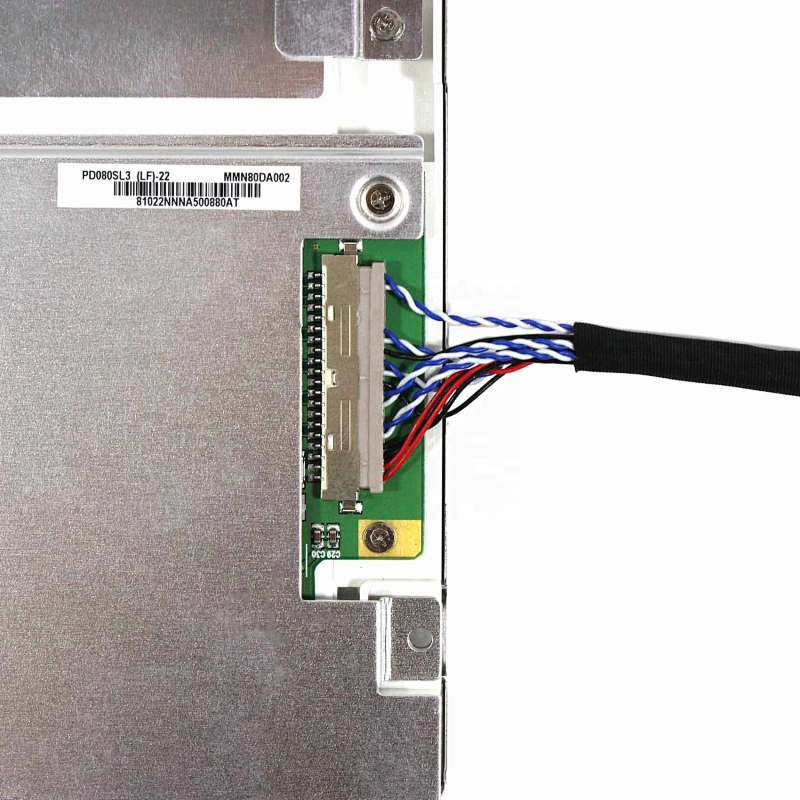

Signal Interface LVDS (1 ch, 6/8-bit), 20Pins Connector
Backlight WLED

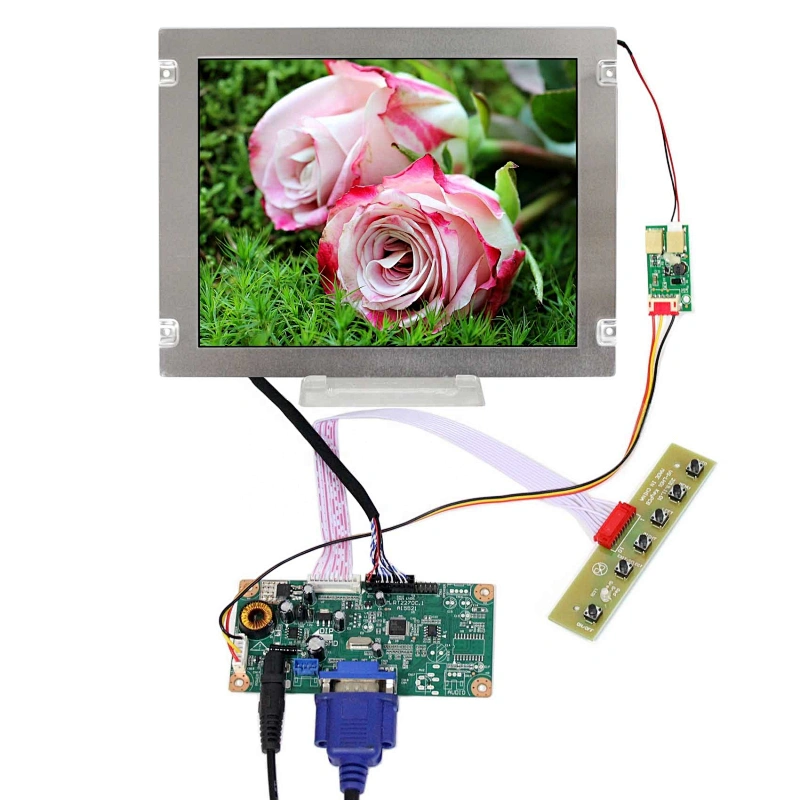

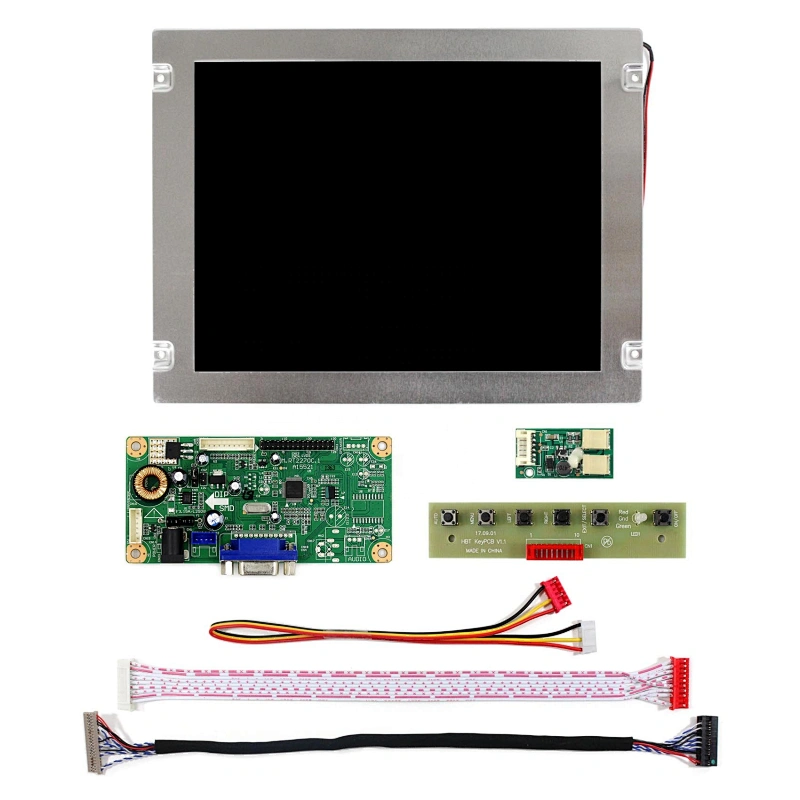

Input Voltage 3.3V (Typ.) - Packing list:
1× VGA LCD Controller Board RT2270C-A
1×8inch PD080SL3 800X600 LCD Screen
1× 20Pins LVDS Cable
1× Inverter Board
1×Backlight Cable
1× Keyboard With Cabl
