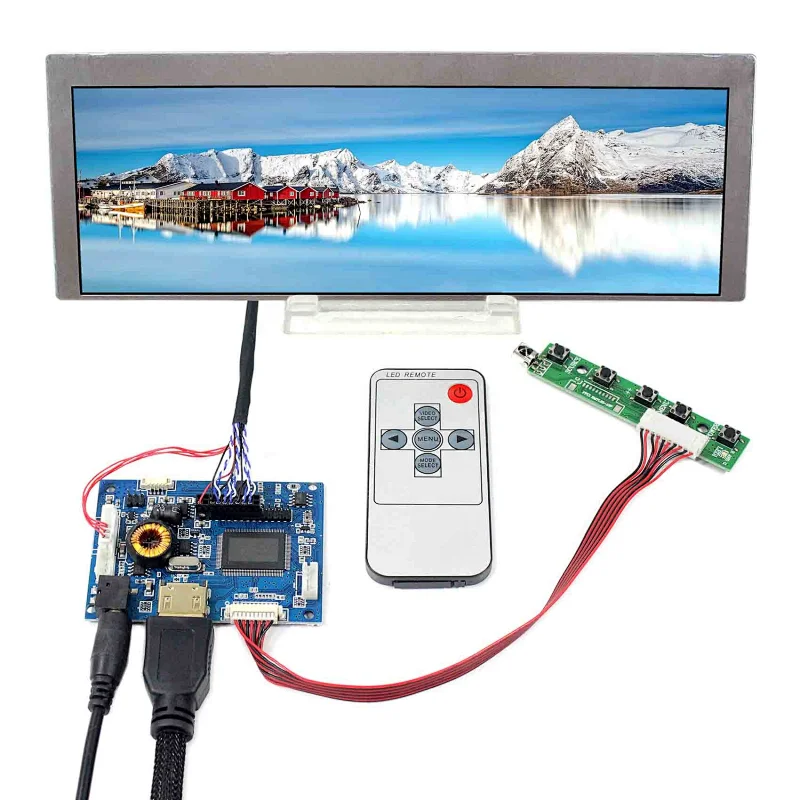

9.1" LCD Screen LQ091B1LW01 822X260 with HD MI controller board

Model NO.
K002066 VS-TY2660H-V661+DF14+LQ091B1LW01 822X260
Minimum order quantity:
1
Quantity:

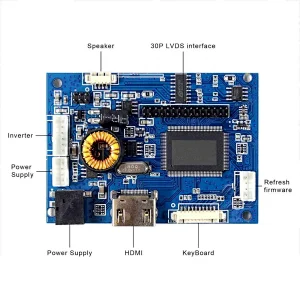

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    Audio Input: HDMI
    Audio Output: Speaker (4Pin PH2.0 connector)
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 74mm x 53mm x 12mm
  • 9.1"LQ091B1LW01 822X260 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 822RGB)×260
    Outline Size 240× 86×10.5(H×V×D)
    Display Area 219.5× 69.4 (H×V)
    Brightness 380 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

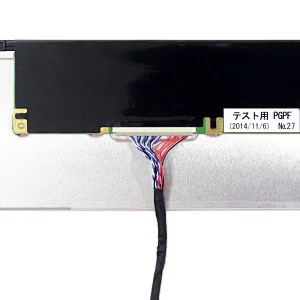

    Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

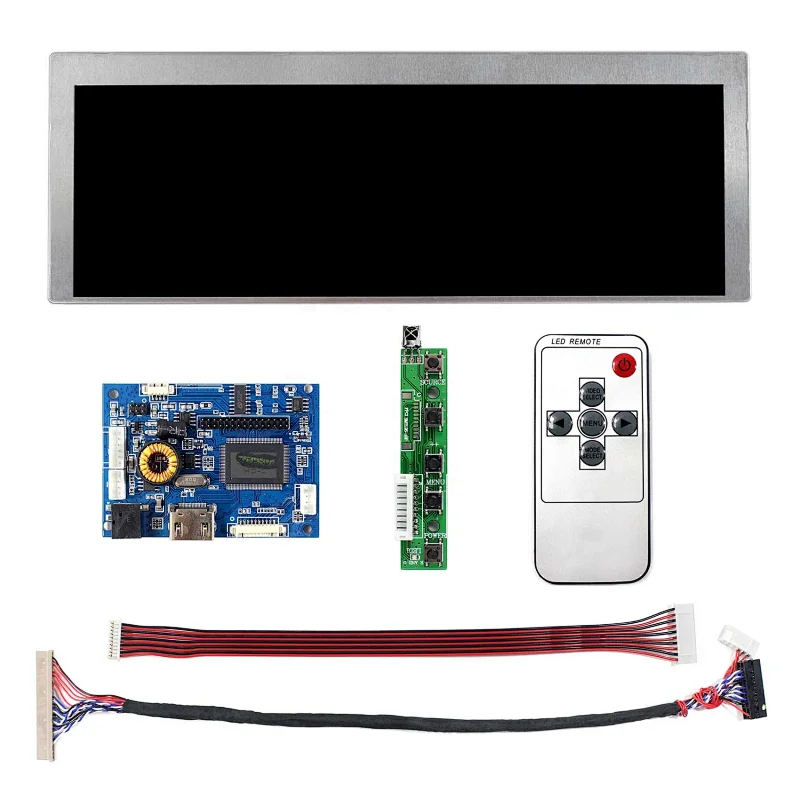

  • Packing list :
    1× HDMI Audio LCD Controller Board VS-TY2660H-V661
    PS: The menu can’t use because of this lcd screen is too small.Only ON/OFF and Source change can use.
    1× 9.1inch LQ091B1LW01 822X260 LCD Screen
    1× LVDS Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
