FPV board, 11.6" N116HSE-EJ1 EA1 Resolution 1920x1080 IPS LCD LCD Controller 11.6" lcd lcd controller circuit board

Model NO.
K001576 VS-V59AV-V1+N116SHE-EJ1/EA1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

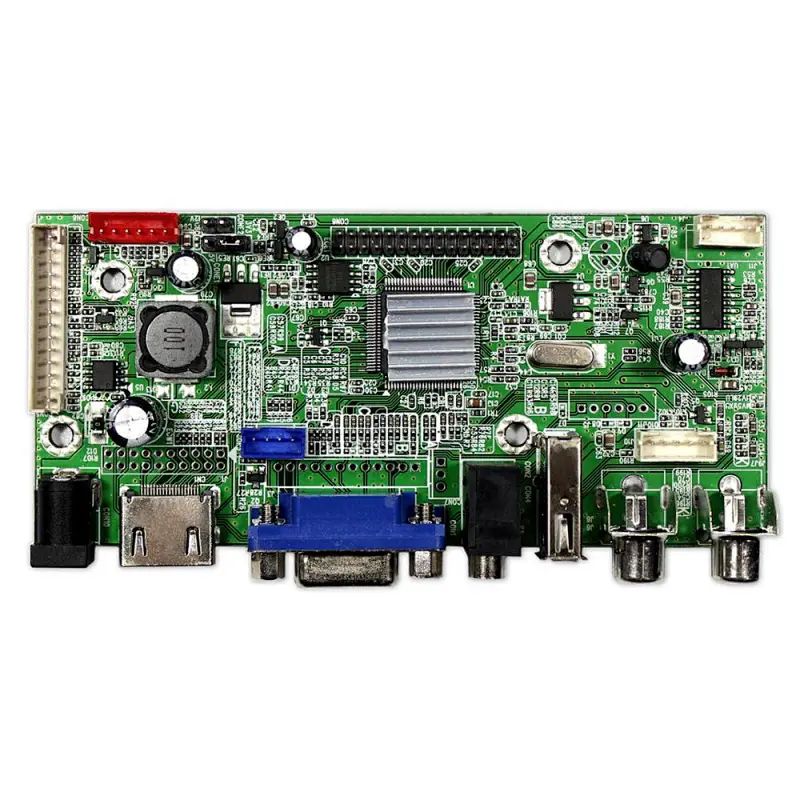

  • LCD Controller Board:
    HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
    USB Support Video
    AV1 AV2 Compatible With PAL And NTSC
    Video Input: HDMI VGA AV1 AV2 USB
    Audio Input: HDMI PC-Audio
    Audio Output: Speaker Connector
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:118mm x 54mm x 17mm

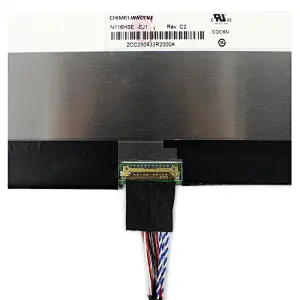

  • 11.6"LCD Screen N116HSE-EJ1 EA1:
    Display Mode AAS, Normally Black, Transmissive
    Resolution 1920（RGB)×1080
    Outline Size 268 × 156.9 × 2.5 (H×V×D)
    Display Area 258.32 × 146.18 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface eDP (2 Lanes) , Connector , 30 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

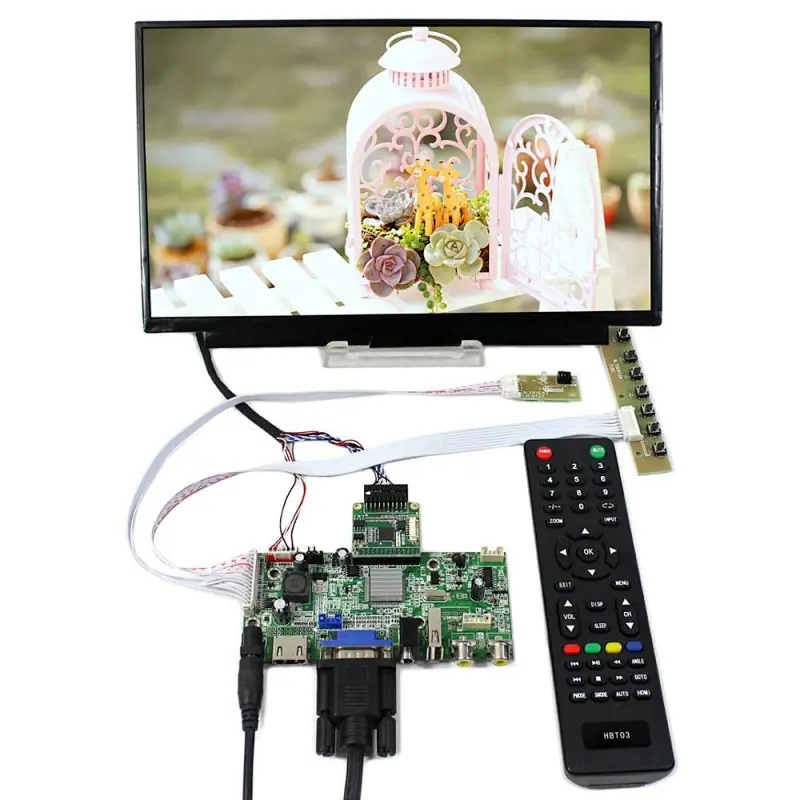

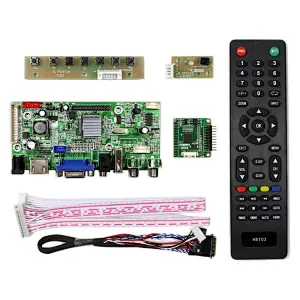

  • Packing list :
    1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
    1×11.6inch N116HSE-EJ1/EA1 1920X1080 IPS LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
