  5. HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
Print This Page
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen
HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen

HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch 1280x800 IPS LCD Screen HDMI VGA AV RT2668 LCD control Board KYV-N3 V1 EJ101IA-01G 10.1inch lcd panel 10.1inch 1280x800 IPS LCD Screen

Model NO.
K001787 KYV-N3 V1+EJ101IA-01G
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

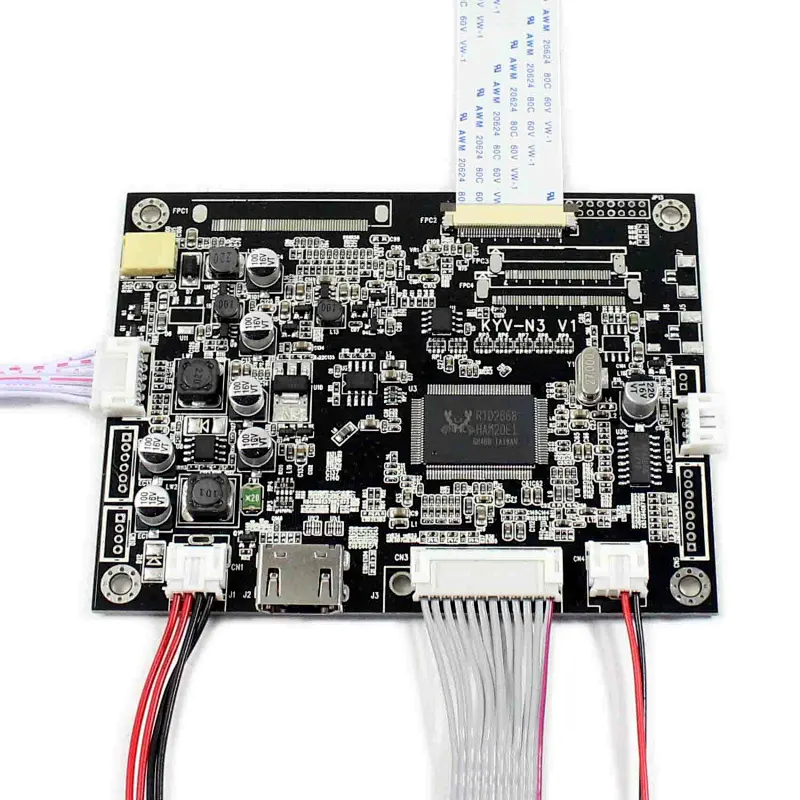

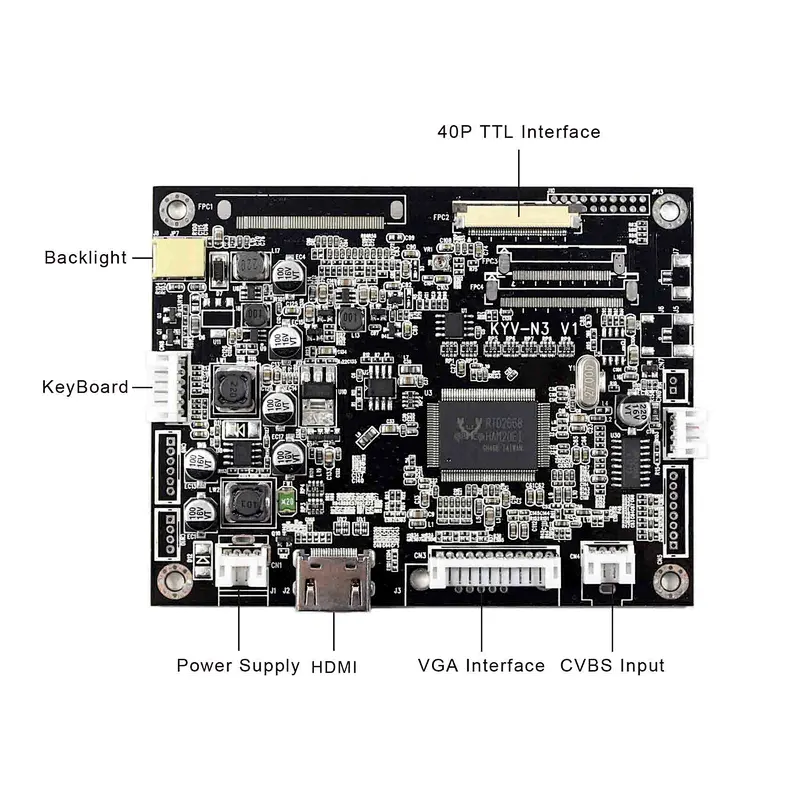

  • LCD Controller Board:
    HDMI VGA AV AUDIO LCD Board Work for 60Pin TTL LCD Screen
    Input Power Adapter: 12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: HDMI VGA AV
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 110mm x 85mm x 10mm
  • 10.1"EJ101IA-01G 1280X800 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 1280（RGB)×800
    Outline Size 229.46 × 149.1×4.66 (H×V×D)
    Display Area 216.96 × 135.6 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 8-bit) Connector , 40 pins
    Backlight WLED
    Input Voltage 2.5V (Typ.)

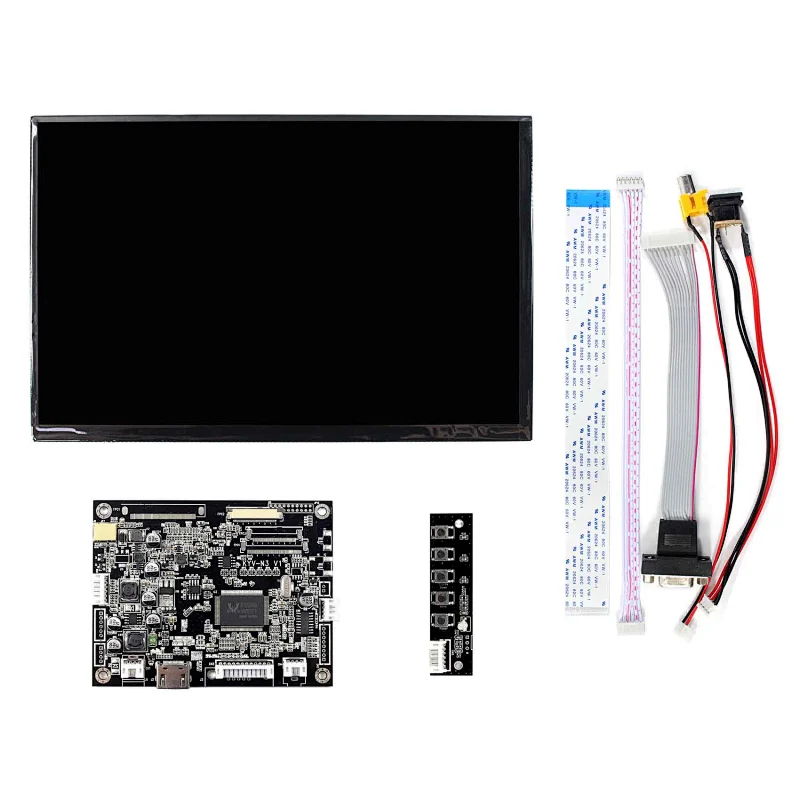

  • Packing list :
    1× HDMI+VGA+AV LCD Controller Board KYV-N3 V1
    1× 10.1inch EJ101IA-01G 1280X800 LCD Screen
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
