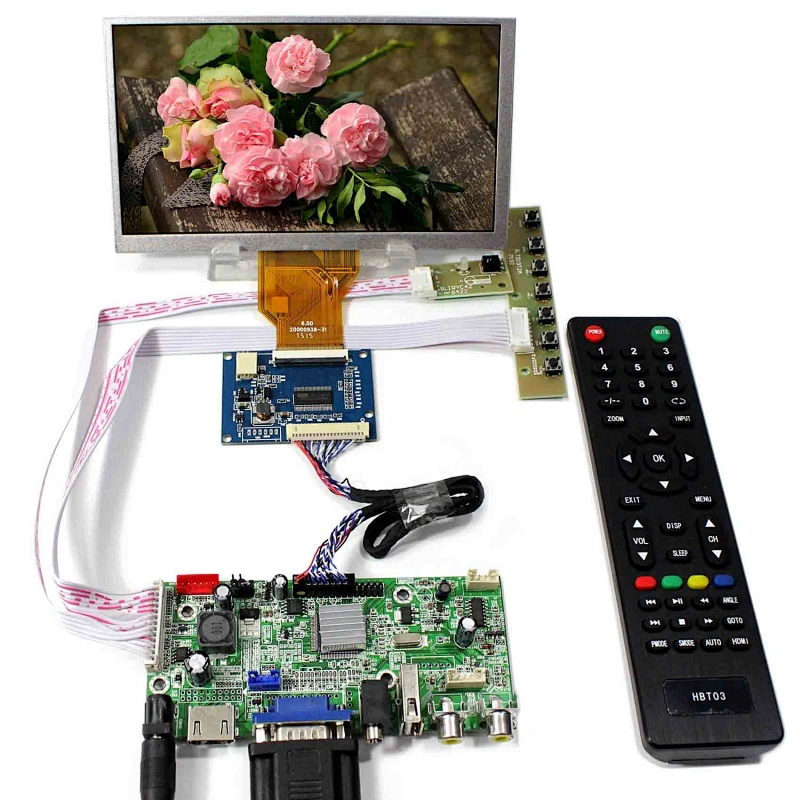

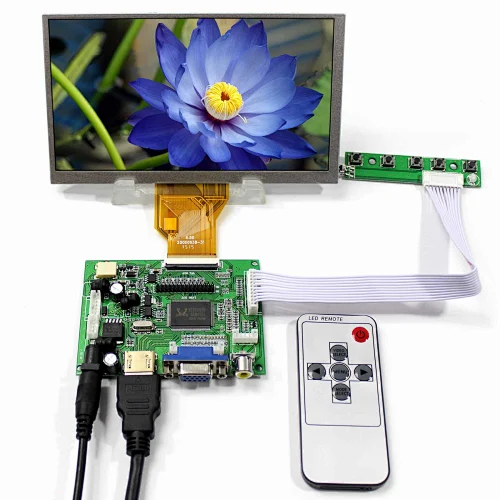

HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 6.5inch AT065TN14 800X480 LCD Screen

Quantity:

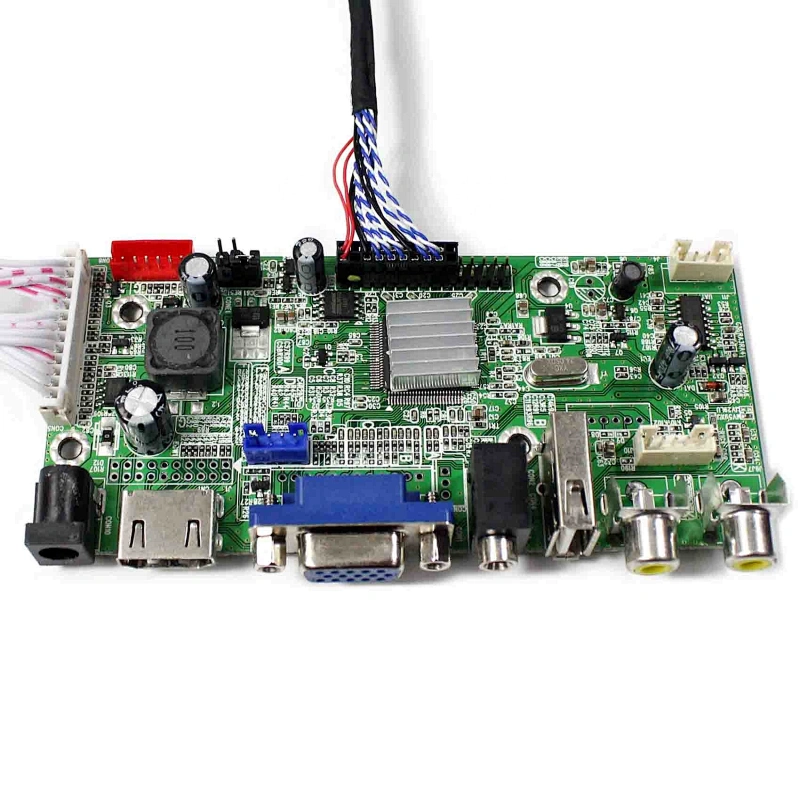

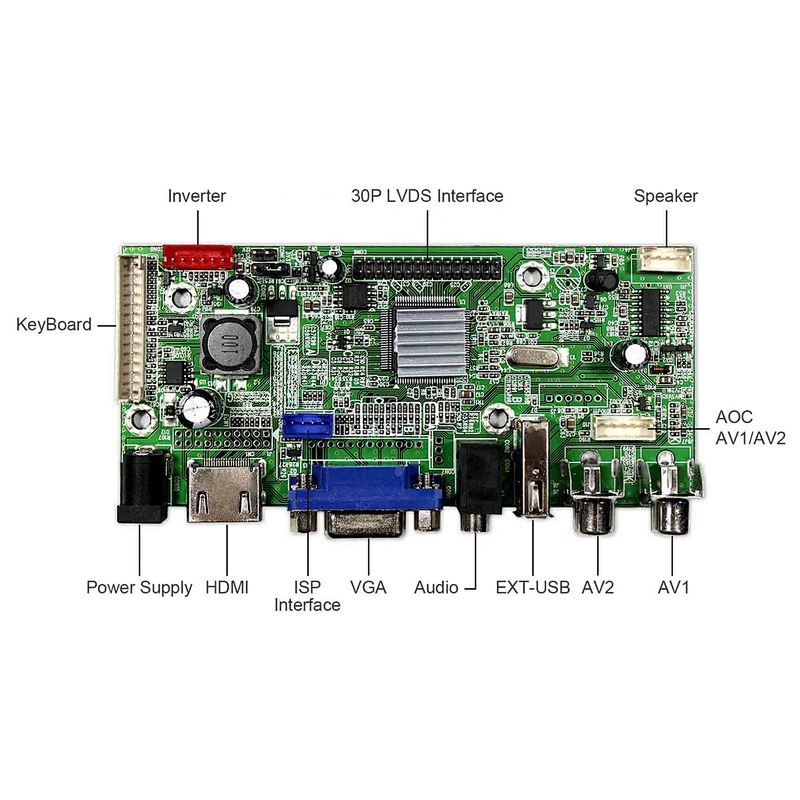

LCD Controller Board:
HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC

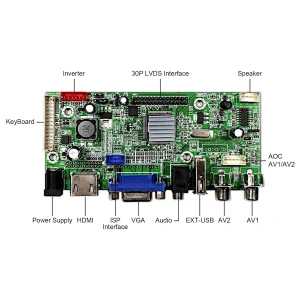

Video Input: HDMI VGA AV1 AV2 USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:118mm x 54mm x 17mm
6.5"AT065TN14 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 155.2 × 89.4×5.7 (H×V×D)
Display Area 143.4 × 76.7 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
1× 6.5inch AT065TN14 800X480 LCD Screen
1× Keyboard With Cable
1× Remote Control(Battery Not included)
