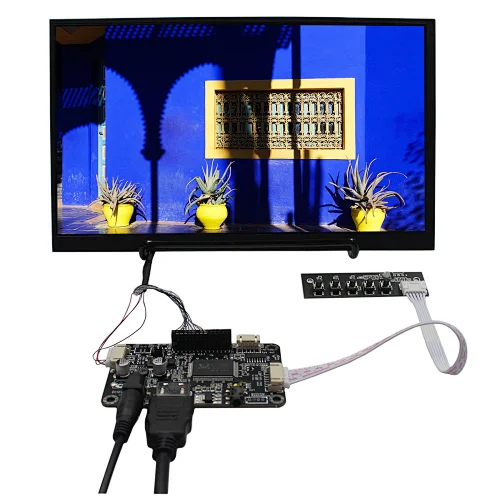

LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display
LCD control Board 68676 with 10.6inch 1366x768 lcd display

LCD control Board 68676 with 10.6inch 1366x768 lcd display

Model NO.
K000719 M.NT68676+10.6" lcd panel
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

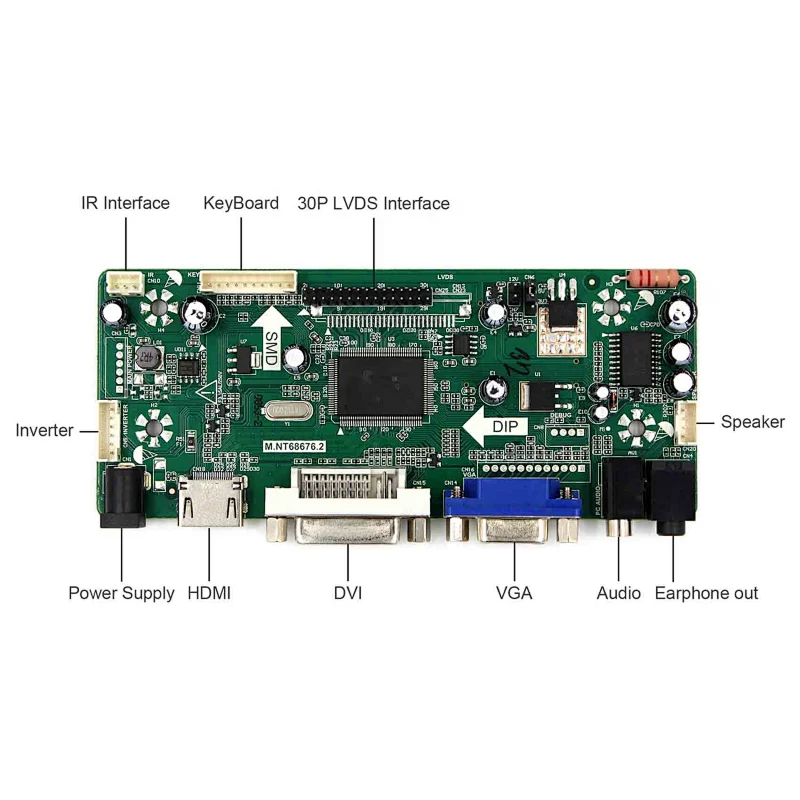

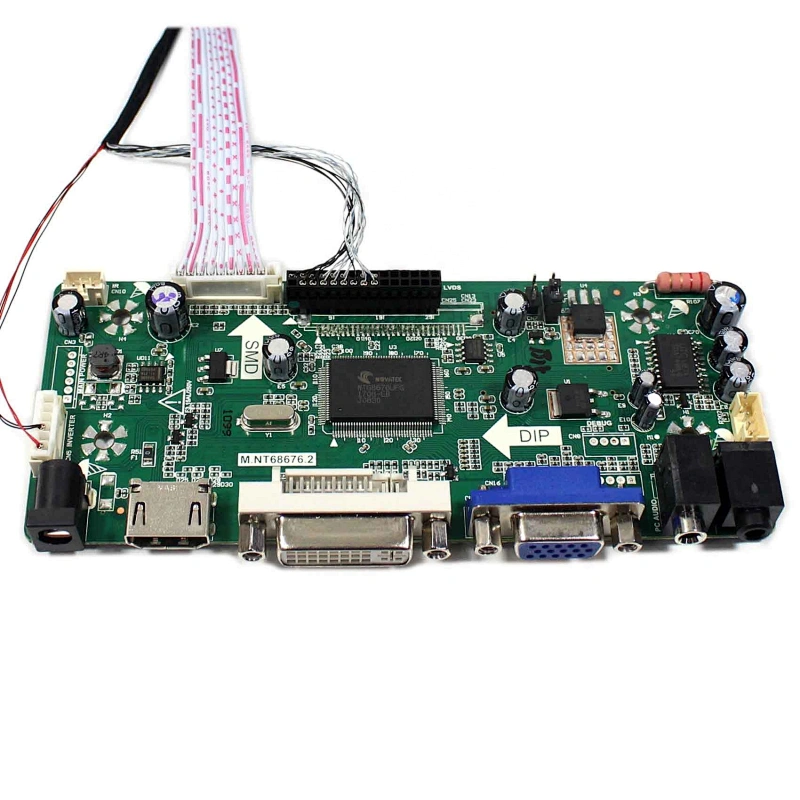

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm

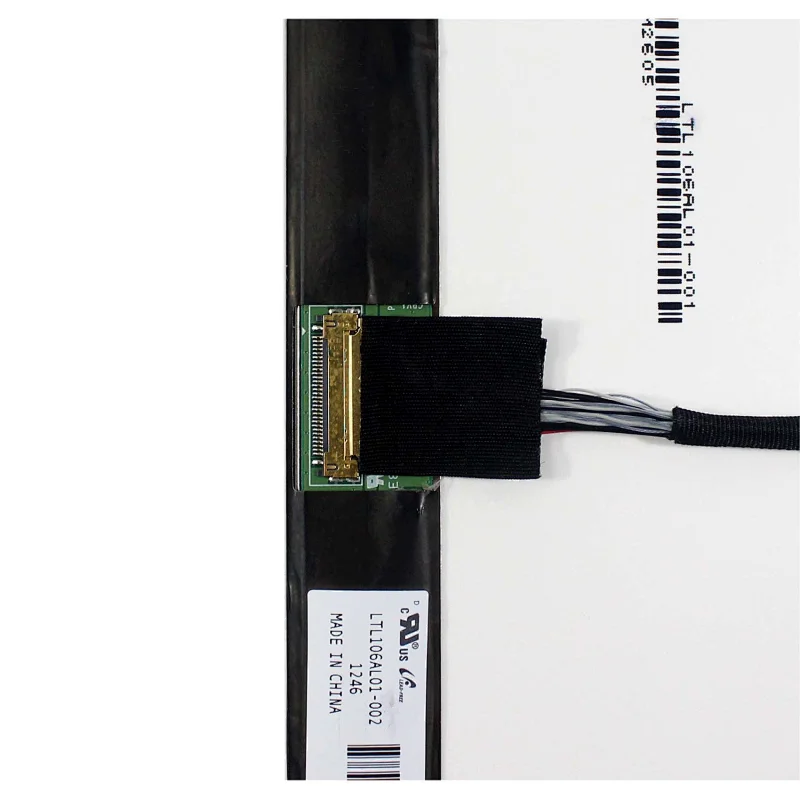

  • 10.6"LCD Screen LTL106AL01:
    Display Mode PLS, Normally Black, Transmissive
    Resolution 1366（RGB)×768
    Outline Size 246 × 149 × 2.5 (H×V×D)
    Display Area 234.72 × 132.03 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 8-bit) , Connector , 30 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

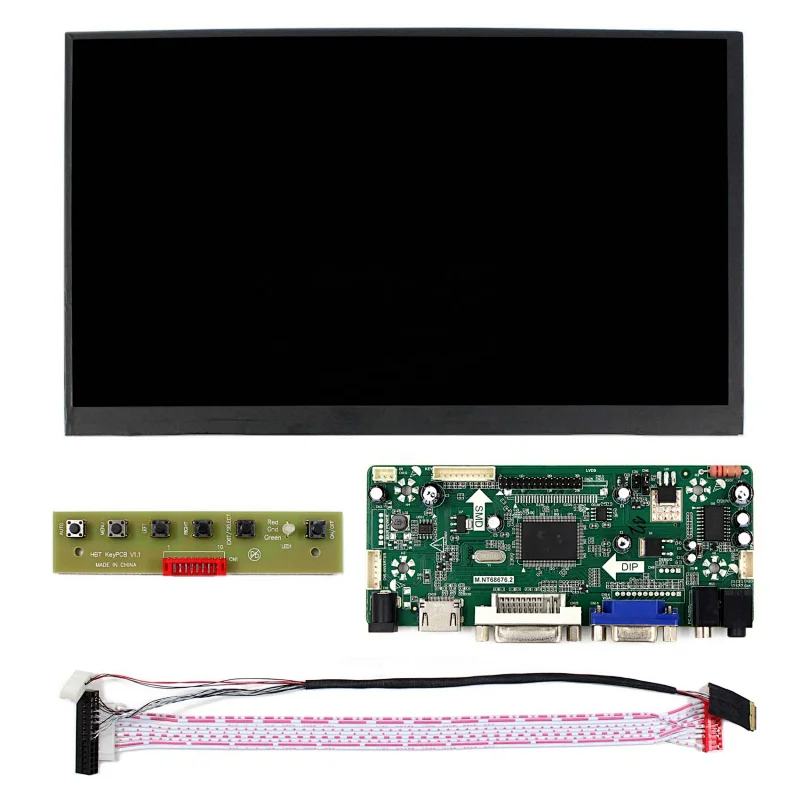

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1×10.6inch LTL106AL01 1366X768 IPS LCD Screen
    1× LVDS Cable
    1× Keyboard With Cable
