lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14
lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14
lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14
lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14
lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14
lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14
lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14
lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14
lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14

lcd control circuit board 6.5inch 800x480 colour tft lcd AT065TN14

Model NO.
K000123 VS-TY50-V1+A065TN14
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

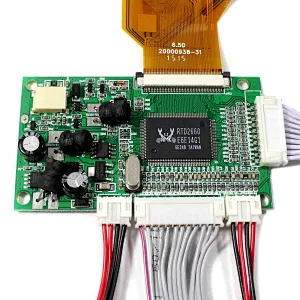

  • LCD Controller Board:
    VGA 2AV LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:77mm x 45mm x 12mm
  • 6.5"AT065TN14 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 155.2 × 89.4×5.7 (H×V×D)
    Display Area 143.4 × 76.7 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× VGA+2AV LCD Controller Board VS-TY50-V1
    1× 6.5inch AT065TN14 800X480 LCD Screen
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
