Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display
Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display

Lcd Controllers MINI Board , 17.3inch 1920x1080 EDP Interface LCD Display

Model NO.
K001636 VS-RTD2556HM-V1+N173HCE-E31
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

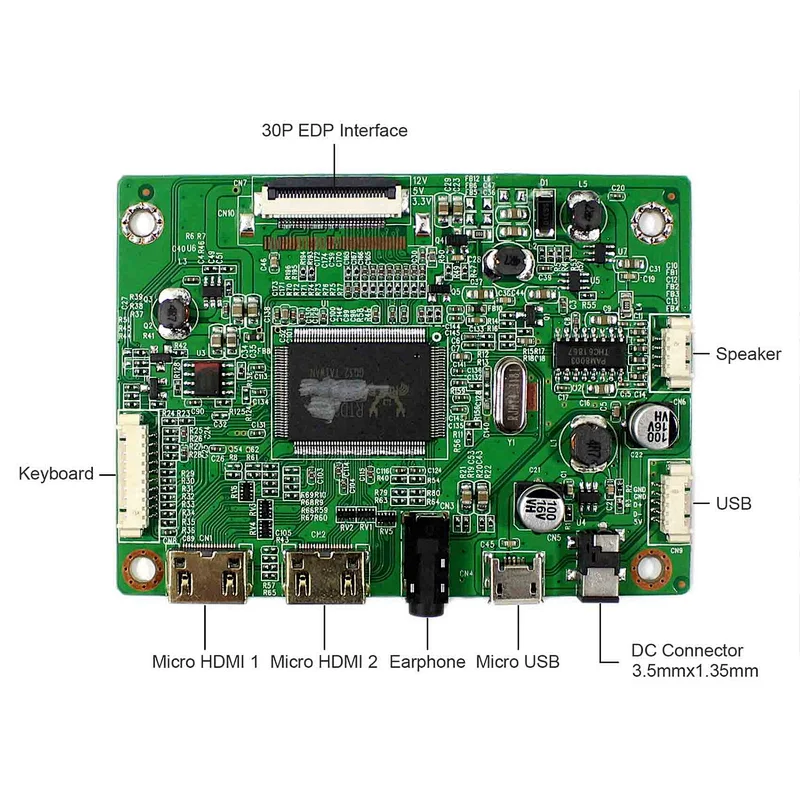

  • LCD Controller Board:
    HDMI Board Work for 30Pin EDP LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Audio Input: 2HDMI Mini
    Audio Output: Earphone
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:82mm x 60mm x 5mm
  • 17.3"LCD Screen N173HCE-E31:
    Display Mode AHVA, Normally Black, Transmissive
    Resolution 1920RGB)×1080
    Outline Size 399.5(W)×230.45(H) ×4(D) mm
    Display Area 381.88 (W)×214.81 (H) mm
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

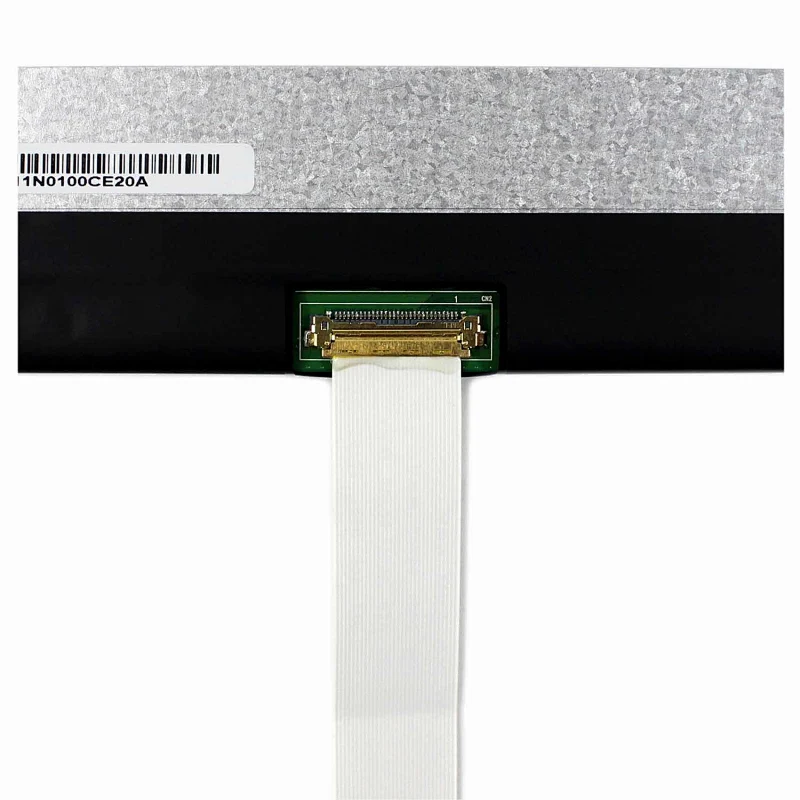

    Signal Interface eDP (2 Lanes) , Connector , 30 pins
    Backlight WLED
    Input Voltage  3.3V (Typ.)

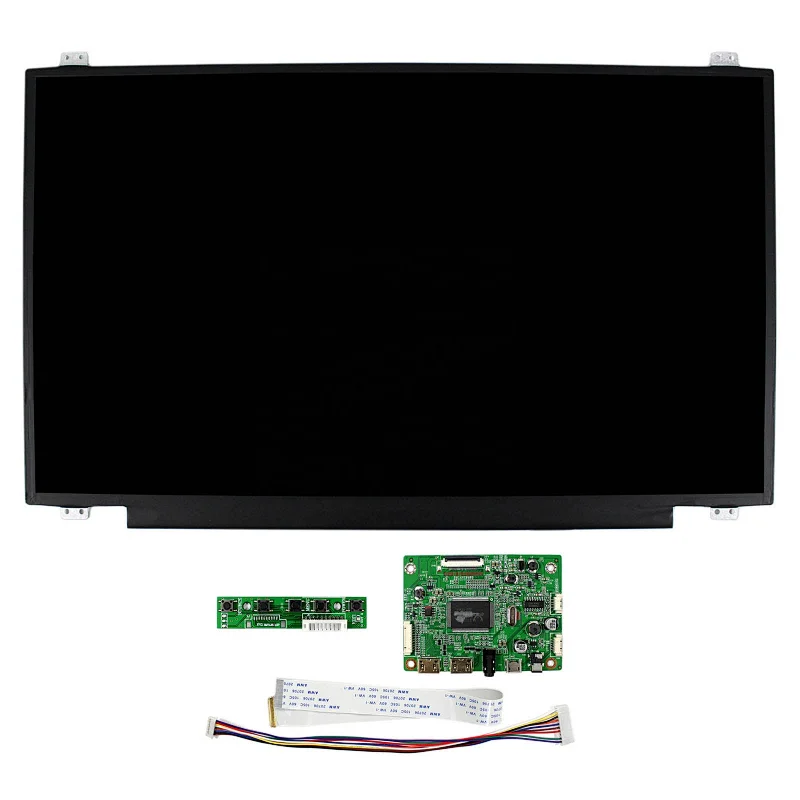

  • Packing list :

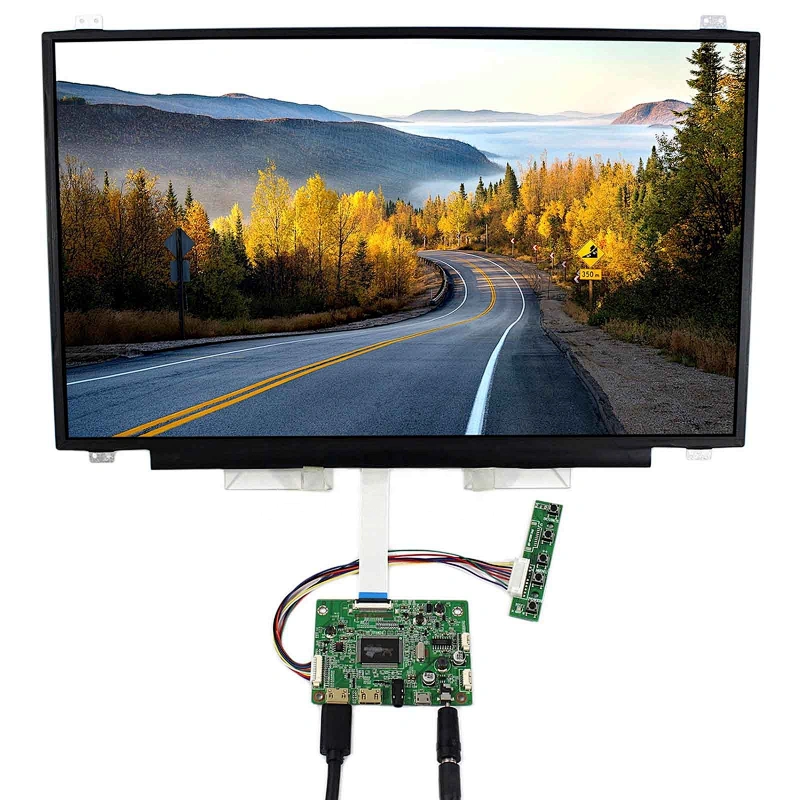

    1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1
    1×17.3inch N173HCE-E31 1920X1080 IPS LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
