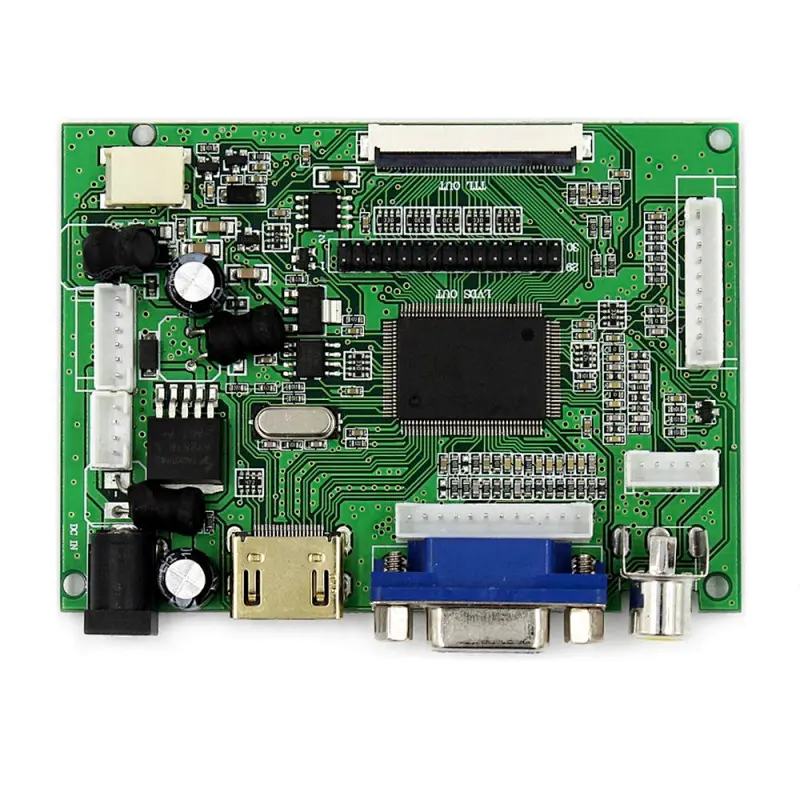

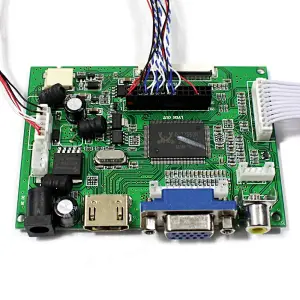

LCD Controller Board: HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen 50Pin TTL Connector for 7inch~10.1inch LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: HDMI VGA AV1 AV2 Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:91mm x 66mm x 12mm
7"N070ICG-LD1 1280X800 LCD Screen: Display Mode HS-IPS, Normally Black, Transmissive Resolution 1280RGB)×800 Outline Size 161 ×107×4.5 (H×V×D) Display Area 149.76 × 93.6 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 8-bit) , Connector , 39 pins Backlight LED Input Voltage 3.3V (Typ.)

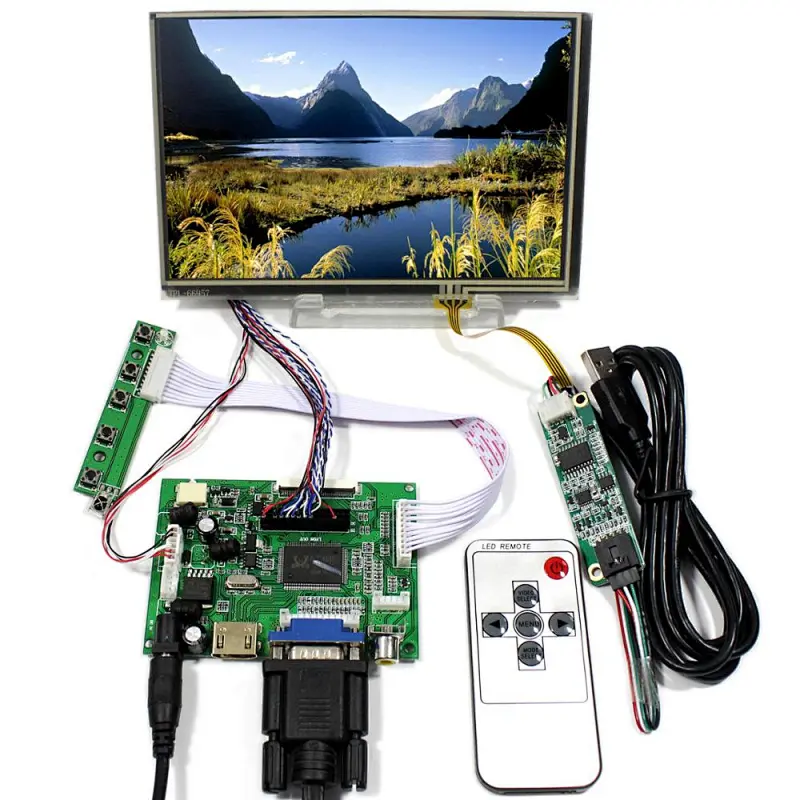

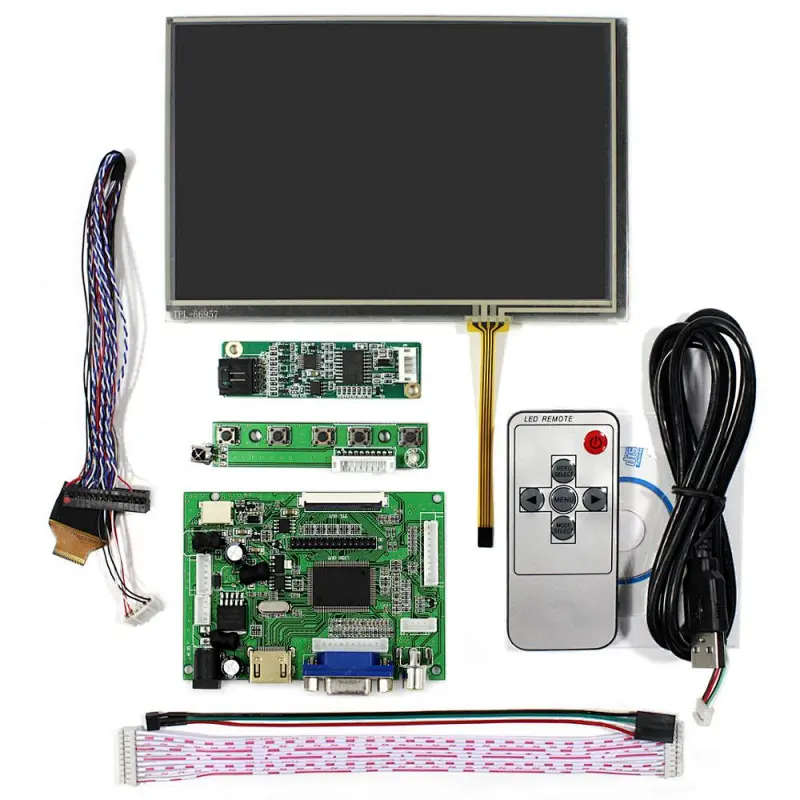

Packing list : 1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1 1× 7inch N070ICG-LD1 1280X800 LCD With Touch Panel 1× LVDS Cable 1× USB Controller Card 1× USB Cable 1× Extend Touch Cable 1× Keyboard With Cable 1× Remote Control(Battery Not included)
