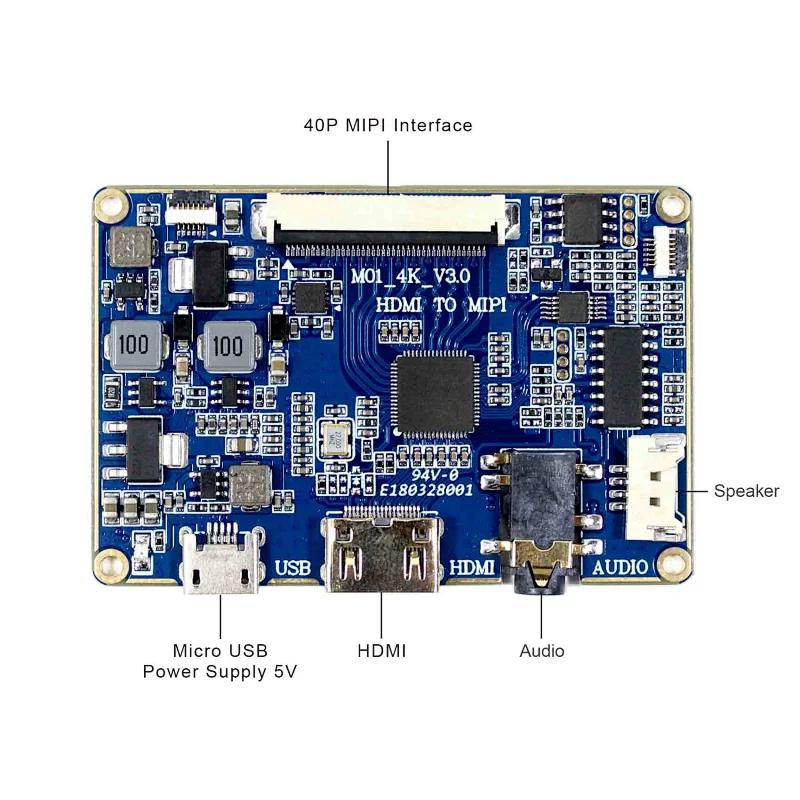

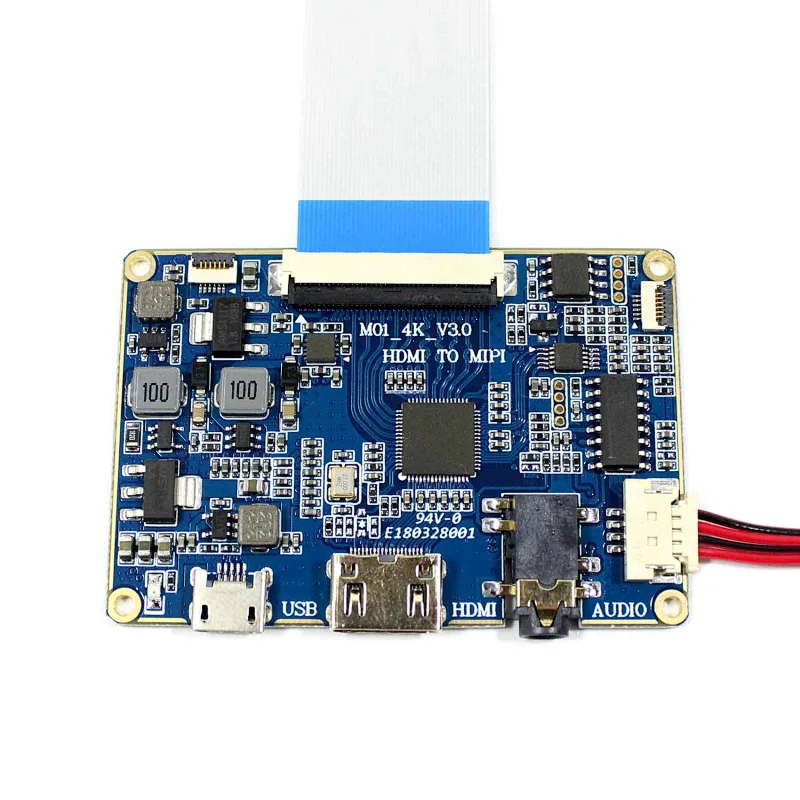

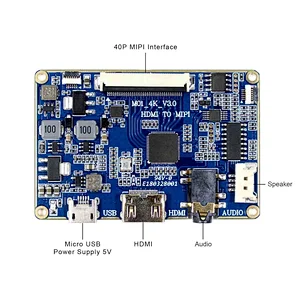

LCD Controller Board: HDMI Board Work for 40Pin Mipi LCD Screen Input Power Adapter: 5Vdc More than 1A. Mirco USB Come In Standby Model When Not Input Signal Standby Model <0.3W Audio Input: HDMI Audio Output: Speaker Earphone Board Size: 60mm x 40mm x 3mm
5.5"LS055R1SX04 1440X2560 LCD Screen: DisplayNew Mode2, Normally Black, Transmissive Resolution 1440RGB)×2560 Outline Size 70.94 ×128.49×1.45(H×V×D) Display Area 68.04× 120.96 (H×V) Brightness 450 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface MIPI (2 ch, 4 data lanes) , 50 pins , Connector Backlight WLED Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

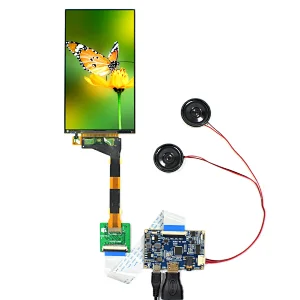

Packing list : 1× HDMI To Mipi LCD Controller Board VS-CXMIPI-V1 1× 5.5inch LS055R1SX04 1440X2560 LCD Screen 1× Signal Cable 1× Converter Board 1× 8ohm 2W Speaker
