HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board
HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board
HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board
HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board
HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board
HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board
HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board
HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board
HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board

HDMI LCD Controller Board VS-TY50-V2 and 50Pin TTL 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel display lcd tft lcd display lcd driver board

Model NO.
K001618 AT070TN93+TY50-V2+ Capacitive tp
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

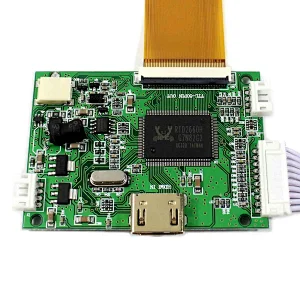

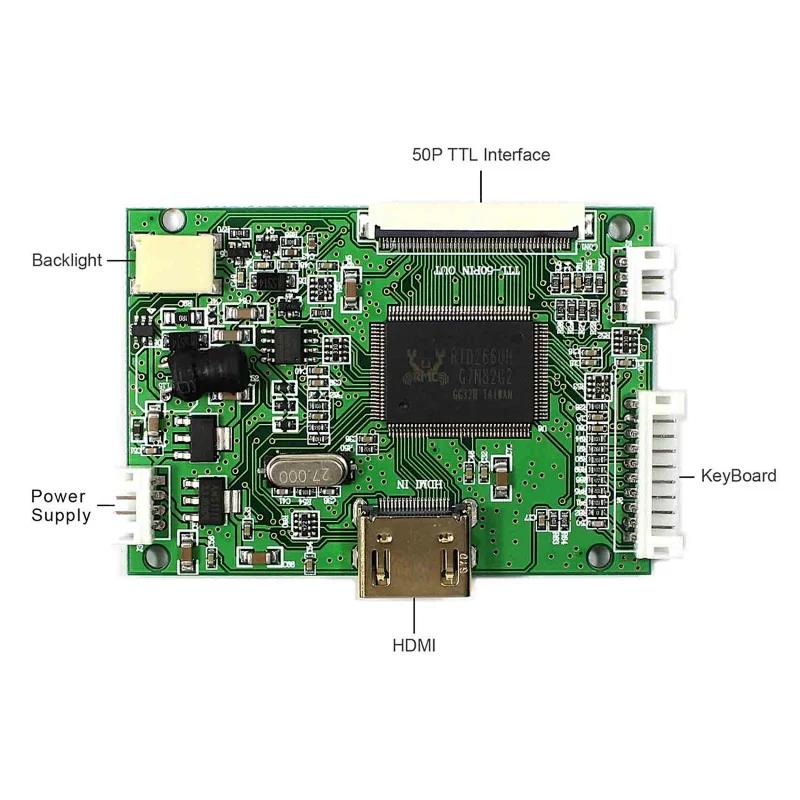

  • LCD Controller Board:
    HDMI LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:5Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 70mm x 50mm x 8mm
  • 7"AT070TN93 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800(RGB)×480
    Outline Size 165.2 × 96.62×3.5(H×V×D)
    Display Area 154.08 × 85.92 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

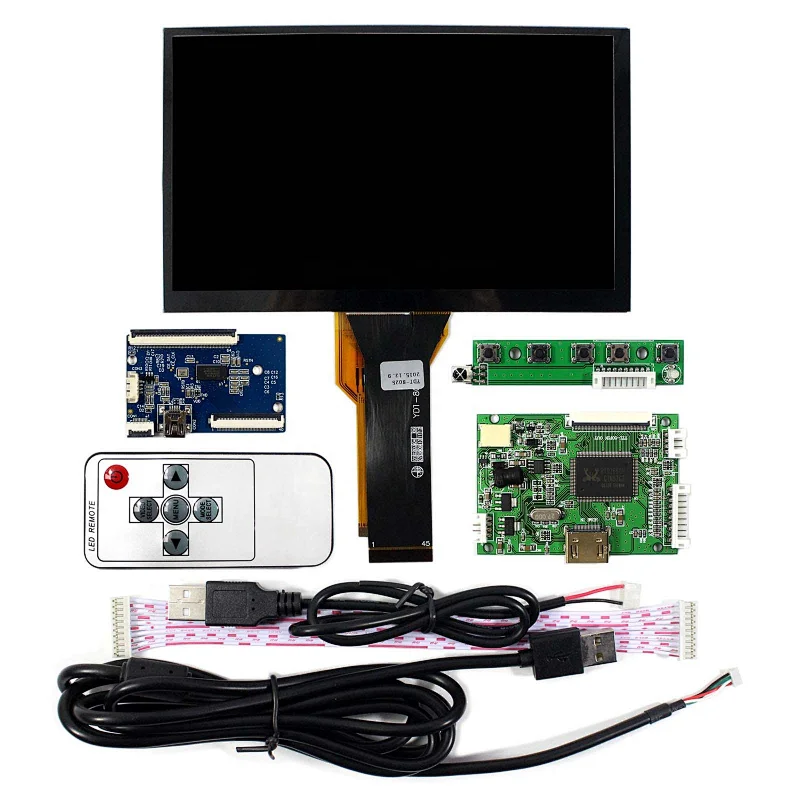

  • Packing list :
    1× HDMI LCD Controller Board VS-TY50-V2
    1× 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel VS070TC01-B1
    1× USB Controller Card
    1× USB Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
