HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen
HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen
HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen
HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen
HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen
HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen
HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen
HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen
HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen

HDMI Type C lcd Control Board Work for 30Pin EDP 11.6inch/13.3inch/14inch/15.6inch/17.3inch 1920x1080 LCD Screen

Model NO.
K002013 VS-RT2556T2K-40pin
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:
    HDMI Type C Control Board Work for 40Pin EDP LCD Screen
    Input Power Adapter: Type-C connector
    HDR: Support
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Input: Type-C Mini HDMI
    Output: eDP USB (max 500mA)
    Audio Output: Speaker
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
    Nederlands Korean Japanese

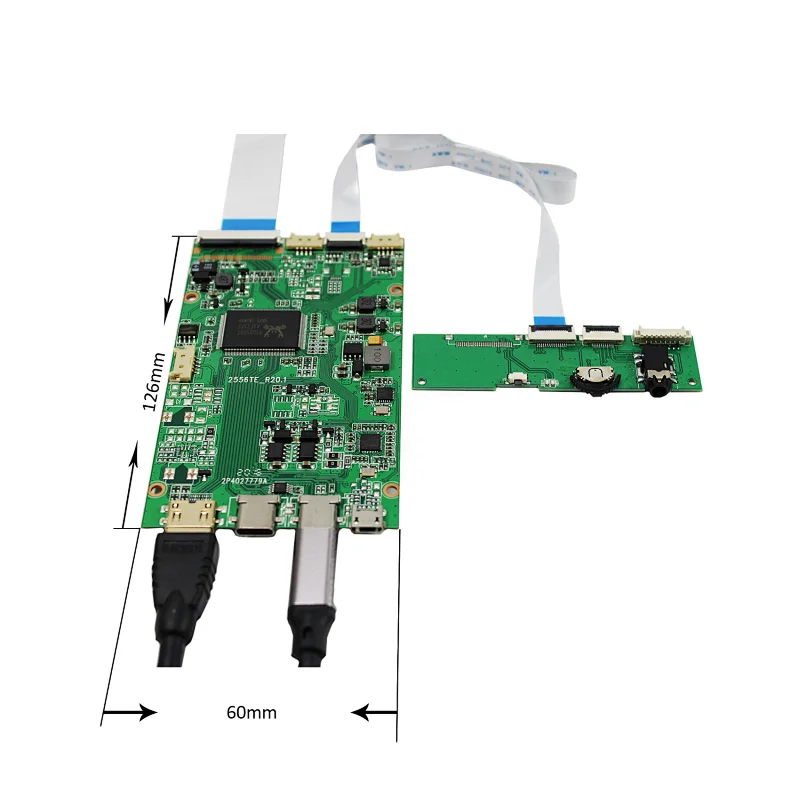

    Board Size: 126mm x 60mm x 4mm
  • Compatible Work With:
    11.6inch 1920x1080:
    N116HSE-EA1 N116HSE-EA2 N116HSE-EJ1 N116HSE-EB1
    13.3inch 1920x1080:
    N133HSE-EA1 N133HSE-EA3 N133HSE-EB1 N133HSE-EB3
    14inch 1920x1080:
    B140HAN01.0 B140HAN01.1 B140HAN01.2 B140HAN01.3
    15.6inch 1920x1080:
    B156HAN01.1 B156HAN01.2 B156HTN03.0 LP156WF4-SP
    N156HGE-EA1 NV156FHM-N31 NV156FHM-N41
    17.3inch 1920x1080:
    N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN01.0 B173HTN01.1
  • Packing list:
    1× HDMI LCD Controller Board VS-RTD2556HC-V2
    1× Signal Cable
    1× Keyboard With Cable
