LCD Controller Board: HDMI Board Work for 50Pin Mipi LCD Screen Input Power Adapter: 5Vdc More than 1A. Come In Standby Model When Not Input Signal Standby Model <0.3W Audio Input: HDMI Board Size: 65mm x 64mm x 3mm
5.5"LS055R1SX04 1440X2560 LCD Screen: DisplayNew Mode2, Normally Black, Transmissive Resolution 1440RGB)×2560 Outline Size 70.94 ×128.49×1.45(H×V×D) Display Area 68.04× 120.96 (H×V) Brightness 450 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface MIPI (2 ch, 4 data lanes) , 50 pins , Connector Backlight WLED Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

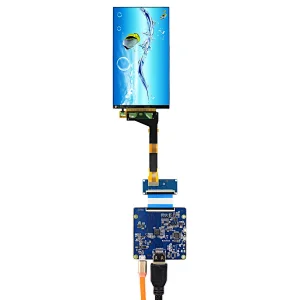

Packing list : 1× HDMI To Mipi LCD Controller Board VS-HDMITMIPI-V1 1× 5.5inch LS055R1SX04 1440X2560 LCD Screen 1× Signal Cable 1× Converter Board

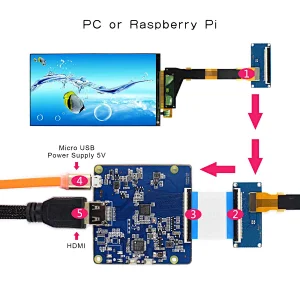

Instuction: 1. When HDMI signal is not accept. It shows black Image and LED flashing on main board. Please change HDMI source for test. 2. When HDMI accept. It shows correct image and LED is blue. This Board work with PC and Raspberry Pi. The image not support Scaling. It shows image depend on HDMI input source. Turn On： a、Connect Converter Board With LCD Screen Interface b、Connect Converter Board With 60Pin Cable c、Connect Main Board With 60Pin Cable d、Insert HDMI Type Cable e、Turn On 5Vdc or USB as Power Supply Turn Off： a、Turn Off 5Vdc or Remove USB Power Adapter b、Remove HDMI Cable c、Disconnect Main Board With 60Pin Cable d、Disconnect Converter Board With 60Pin Cable e、Disconnect 60Pin Cable With LCD Screen For PC: 1. Most of MIPI screen for vertical display.Need to adjust computer graphics mode. 2. Replication Mode - Extended mode - Vertical and Horizontal adjustment. For Raspberry Pi 1. The Main Board Four Locating Holes Compatible With Raspberry Pi. 2. Different Raspberry Pi are set differently. Please connect with Raspberry Pi Technical support.
