  4. DF19-14P 2ch 6bit LVDS cable Length=250mm Compatible Work With: LTM10C306L LTM10C306K LTM10C306S LTM10C306Y
Print This Page

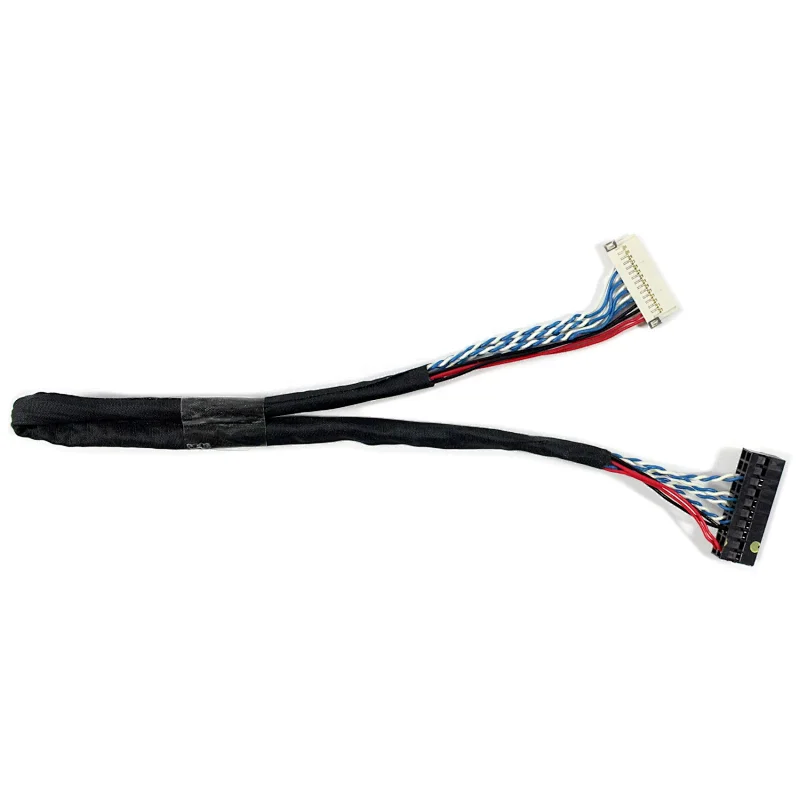

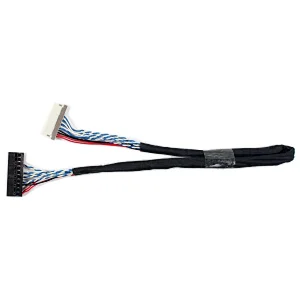

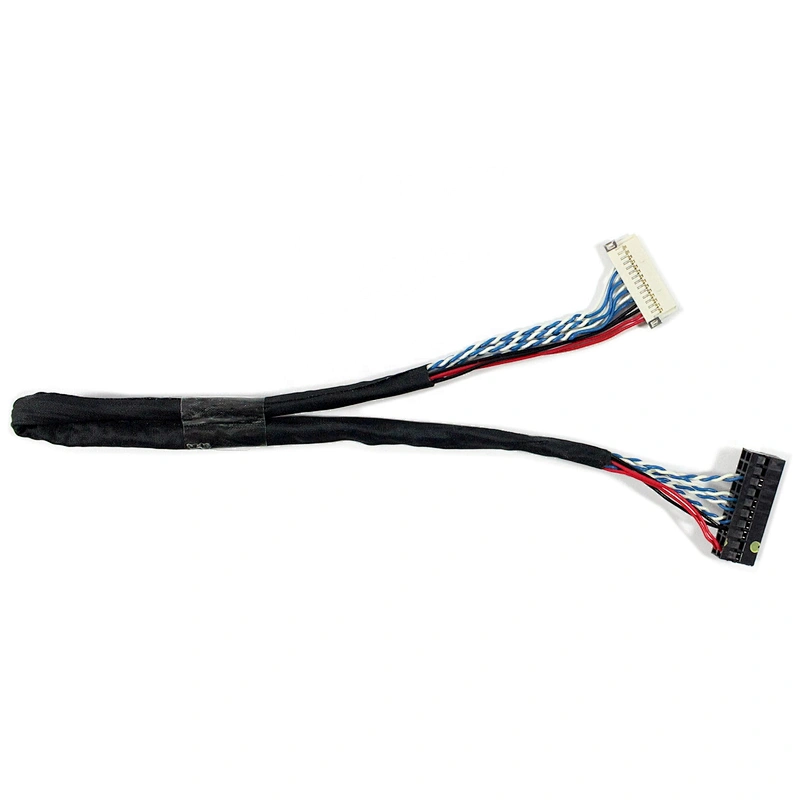

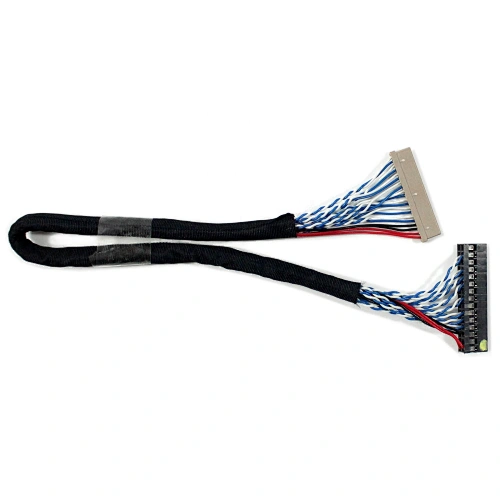

DF19-14P 2ch 6bit LVDS cable Length=250mm Compatible Work With: LTM10C306L LTM10C306K LTM10C306S LTM10C306Y
DF19-14P 2ch 6bit LVDS cable Length=250mm Compatible Work With: LTM10C306L LTM10C306K LTM10C306S LTM10C306Y
DF19-14P 2ch 6bit LVDS cable Length=250mm Compatible Work With: LTM10C306L LTM10C306K LTM10C306S LTM10C306Y
DF19-14P 2ch 6bit LVDS cable Length=250mm Compatible Work With: LTM10C306L LTM10C306K LTM10C306S LTM10C306Y
DF19-14P 2ch 6bit LVDS cable Length=250mm Compatible Work With: LTM10C306L LTM10C306K LTM10C306S LTM10C306Y

DF19-14P 2ch 6bit LVDS cable Length=250mm Compatible Work With: LTM10C306L LTM10C306K LTM10C306S LTM10C306Y

Model NO.
E000014 DF19-14P
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Connection the LCD Controller Board:
    PIN #SIGNAL NAMEDESCRIPTION
    1VSELPower for panel
    2VSELPower for panel
    3VSELPower for panel
    4GNDGround
    5GNDGround
    6GNDGround
    7RXO0-Negative LVDS differential data input
    8RXO0+Positive LVDS differential data input
    9RXO1-Negative LVDS differential data input
    10RXO1+Positive LVDS differential data input
    11RXO2-Negative LVDS differential data input
    12RXO2+Positive LVDS differential data input
    13GNDGround
    14GNDGround
    15RXOC-Negative LVDS differential clock input
    16RXOC+Positive LVDS differential clock input
    17RXO3-No Connection
    18RXO3+No Connection
    19RXE0-LVDS EVEN 0 - Signal
    20RXE0+LVDS EVEN 0 + Signal
    21RXE1-LVDS EVEN 1 - Signal
    22RXE1+LVDS EVEN 1 + Signal
    23RXE2-LVDS EVEN 2 - Signal
    24RXE2+LVDS EVEN 2 + Signal
    25GNDGround
    26GNDGround
    27RXEC-LVDS EVEN Clock - Signal
    28RXEC+LVDS EVEN Clock + Signal
    29RXE3-LVDS EVEN 3 - Signal
    30RXE3+LVDS EVEN 3 + Signal
  • Connection the LCD Screen:
    1VCCPower Supply
    2VCCPower Supply
    3GNDGround
    4GNDGround
    5Odd_RxIN0-Negaive LVDS differential data input
    6Odd_RxIN0+Positive LVDS differential data input
    7Odd_RxIN1-Negaive LVDS differential data input
    8Odd_RxIN1+Positive LVDS differential data input
    9Odd_RxIN2-Negaive LVDS differential data input
    10Odd_RxIN2+Positive LVDS differential data input
    11Odd_RxCLKIN-Negaive LVDS differential clock input
    12Odd_RxCLKIN+Positive LVDS differential clock input
    13NCNo Connection
    14NCNo Connection
  • Compatible Work With:
    LTM10C306L LTM10C306K LTM10C306S LTM10C306Y

  • Packing list :
    1× DF19-14P 2ch 6bit LVDS cable Length=250mm
