Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32
Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32

Type C HDMI LCD Controller Board Compatible With 15.6 inch 3840x2160 4K LCD Screen NV156QUM-N44 NV156QUM-N32

Model NO.
K002524 VS-RT2795T4K-V5 Type-C
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

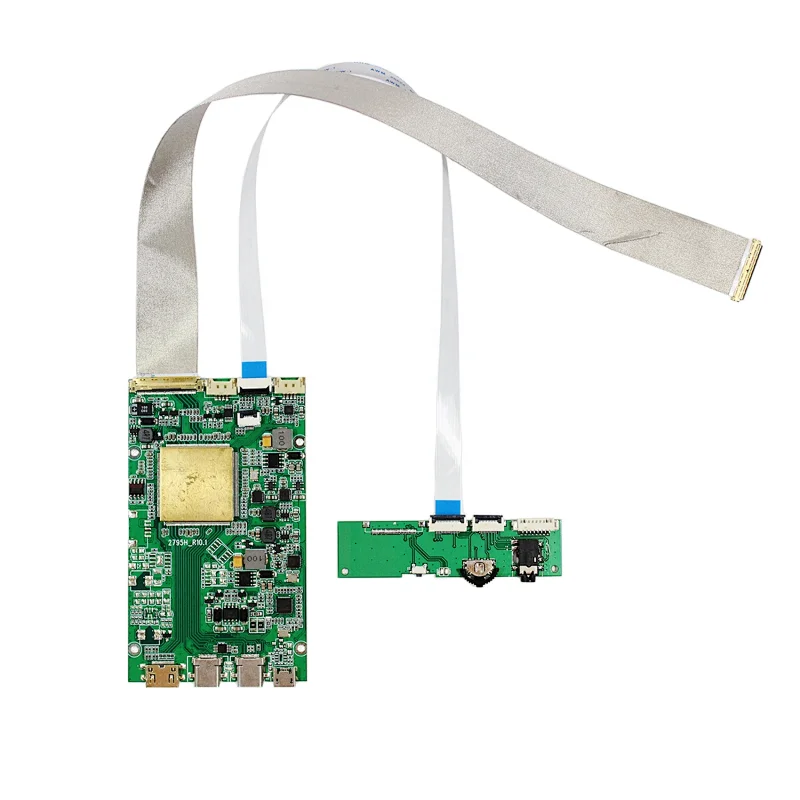

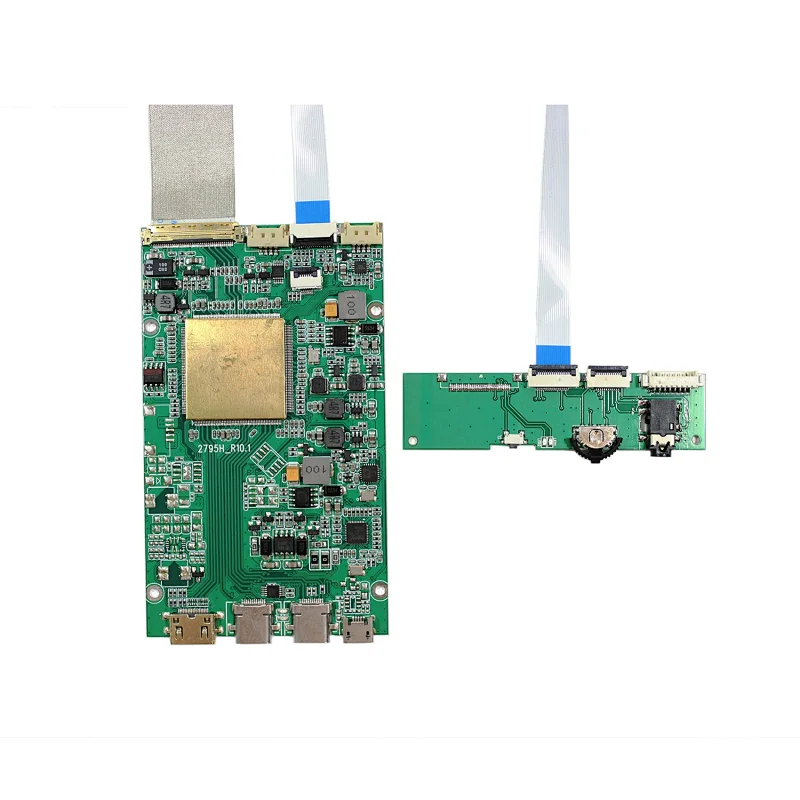

  • LCD Controller Board:
    Type C HDMI Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
    Input Power Adapter: PD 5V dc Type C 18W
    Come In Standby Model When Not Input Signal
    Standby Model <1.2W
    HDR: Support
    Video Input
    HDMI (HDMI 2.0 max 3840x2160 60Hz Support HDCP2.2)
    Type-C (Data Transmission Image Display 5V Max 3A output)
    Audio Output: Earphone
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 104.0mm x 62mm x 5mm
  • Compatible Work With:

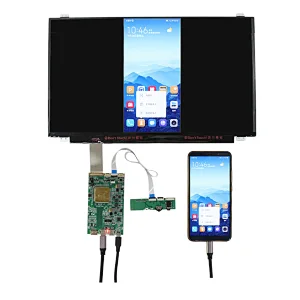

    15.6 inch 3840x2160 4K LCD Screen
    NV156QUM-N44
    NV156QUM-N32

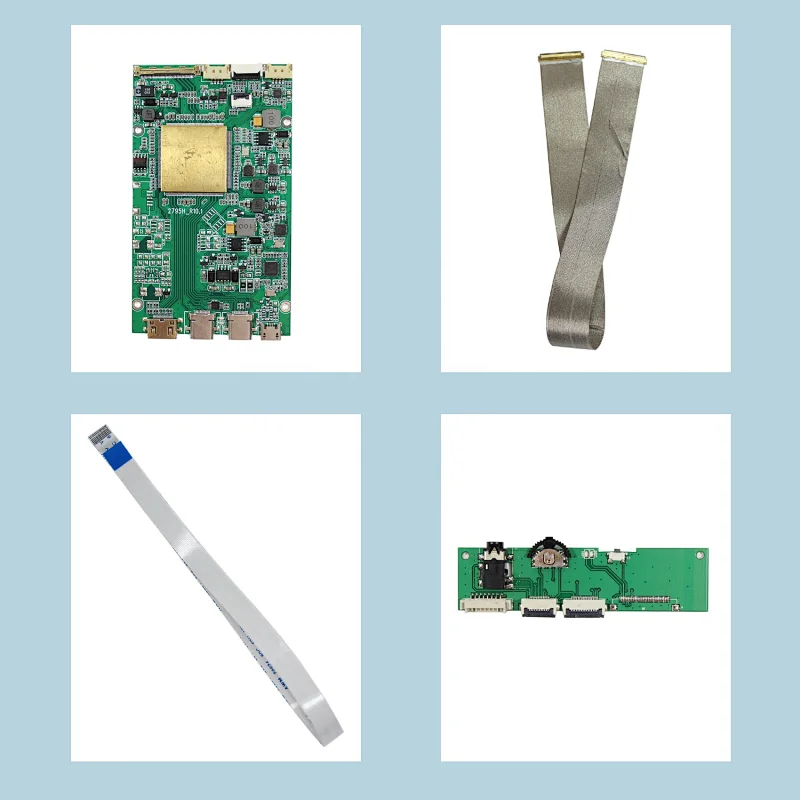

  • Packing list:
    1× Mini HDMI Type C LCD Controller VS-RT2795T4K-V5
    1× Signal Cable
    1× Keyboard With Cable
