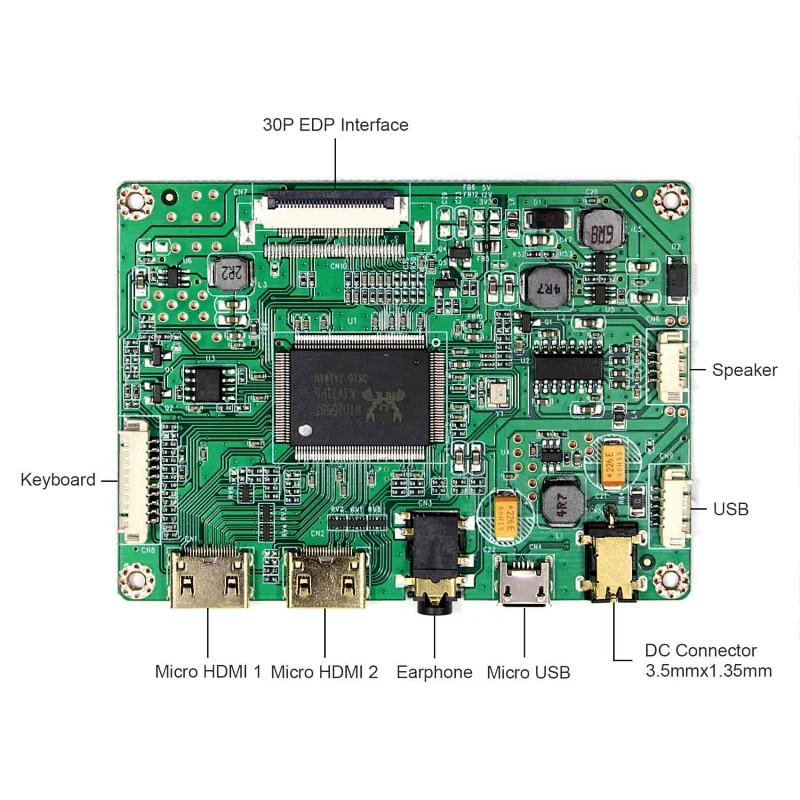

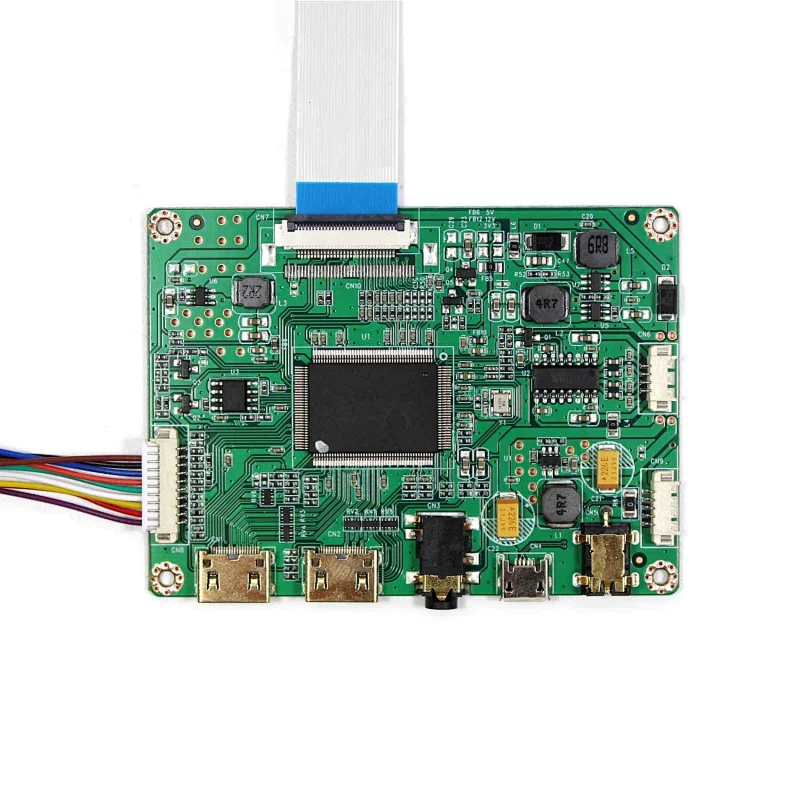

LCD Controller Board: HDMI Board Work for 30Pin EDP LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <0.3W Audio Input: 2HDMI Mini Audio Output: Earphone OSD: Brightness Contrast VOL+ VOL- Language And So On Language: English French German Spanish Italian And So On Board Size:82mm x 60mm x 5mm

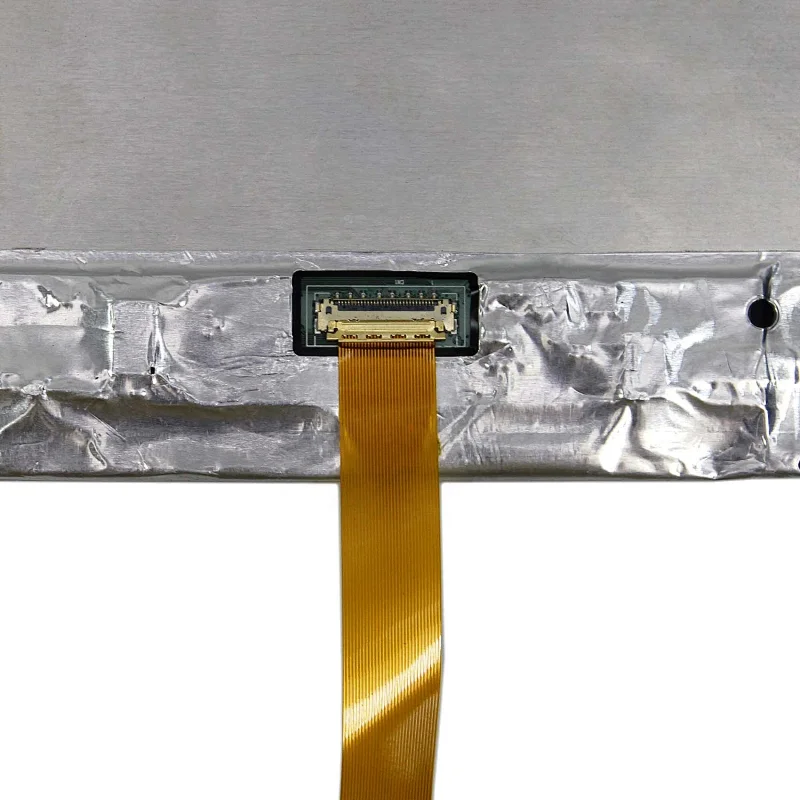

13.3"N133HCG-G52 1920X1080 LCD Screen: Display Mode AAS, Normally Black, Transmissive Resolution 1920(RGB)×1080 Outline Size 299.5×176.9×4(H×V×D) Display Area 293.7×165.2(H×V) Brightness 500 cd/m² (Typ.) Contrast Ratio 1500:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface eDP (4 Lanes), Connector, 30pins Backlight WLED Input Voltage 3.3V (Typ.)

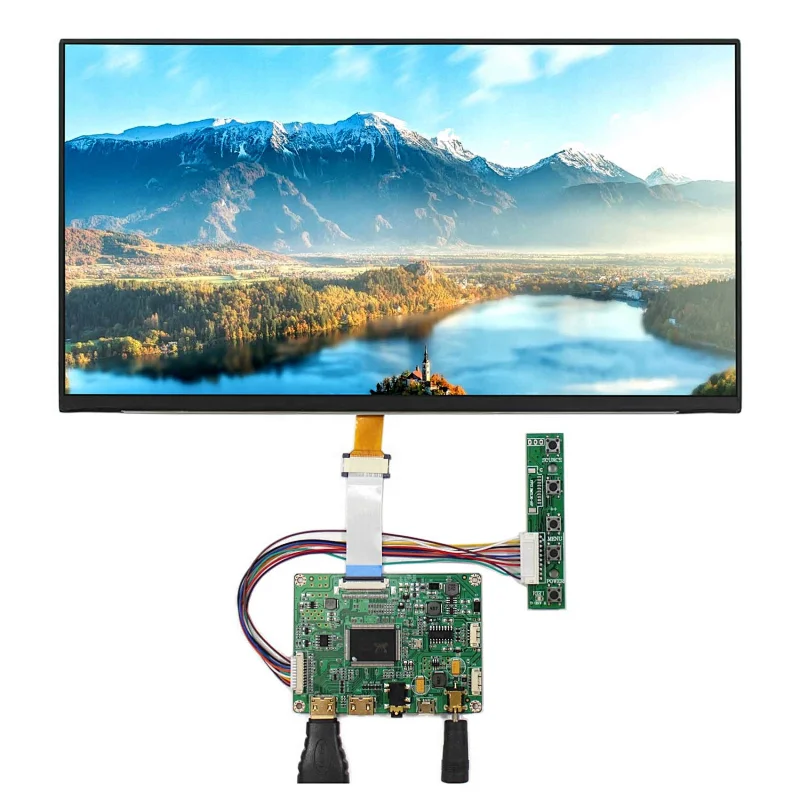

Packing list: 1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1 1× 13.3inch N133HCG-G52 1920X1080 LCD Screen 1× Converter Board 1× Signal Cable 1× Keyboard With Cable When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc. Micro USB output 5Vdc 500mA. When use Micro USB as input. Power Supply Input Voltage 5Vdc. When use 5Vdc as input. Power Supply Input current more than 2A. When use 12Vdc as input. Power Supply Input current more than 1A.
