- LCD Controller Board:
- HD-MI Type C Control Board Work for 40Pin EDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini HD-MI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese

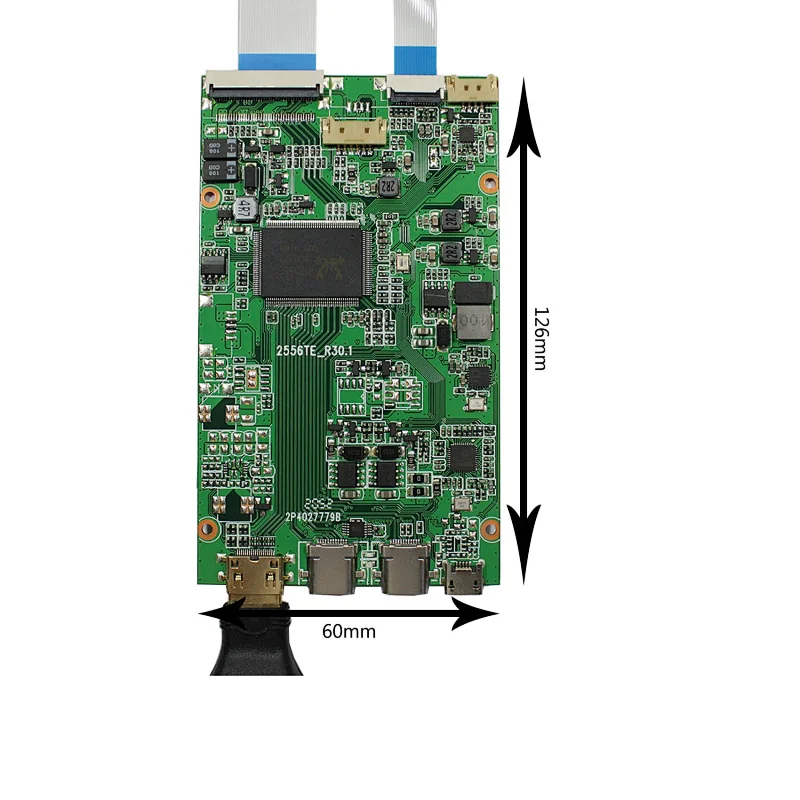

Board Size: 126mm x 60mm x 4mm - 13.3"VS133M1JW15 1920X1080 LCD Screen:
Display Mode AAS, Normally Black, Transmissive
Resolution 1920(RGB)×1080
Outline Size 299.5×176.9×4(H×V×D)
Display Area 293.7×165.2(H×V)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes), Connector, 30pins
Backlight WLED

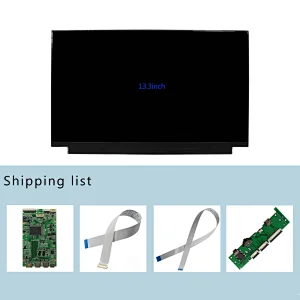

Input Voltage 3.3V (Typ.) - Packing list:

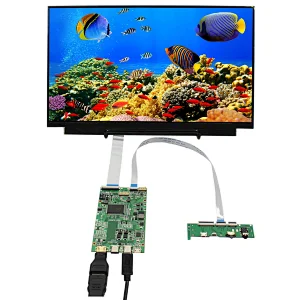

1× HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1× 13.3inch VS133M1JW15 1920X1080 LCD Screen
1× Signal Cable
1× Keyboard With Cable
