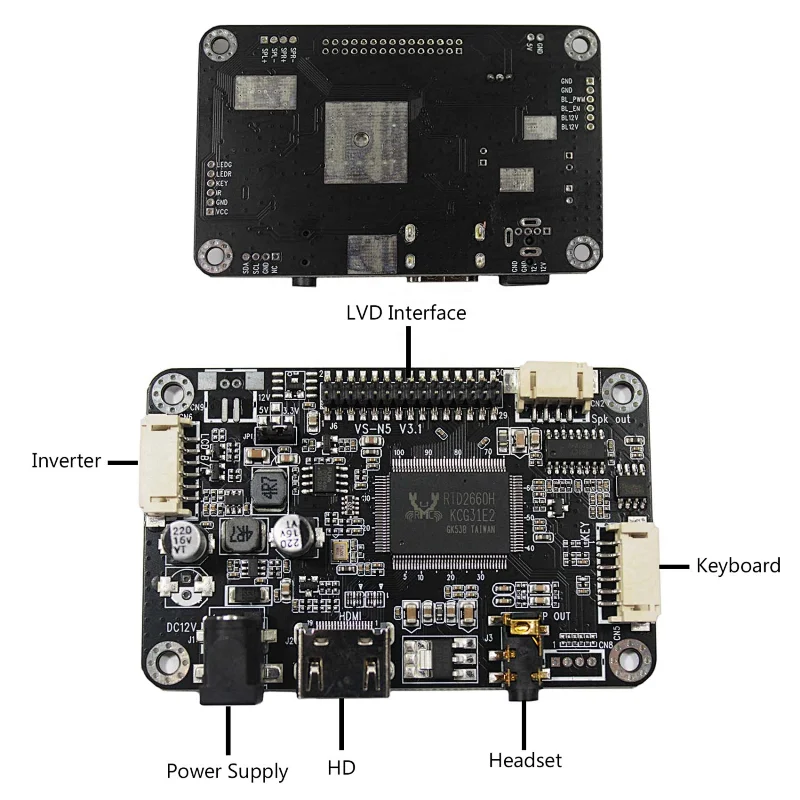

- LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

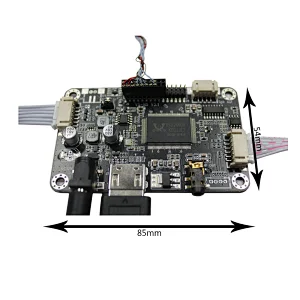

Board Size: 85mm x 54mm x 14mm - 5.6"LTD056ET3A 1024X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution1024(RGB)×600 , WSVGA

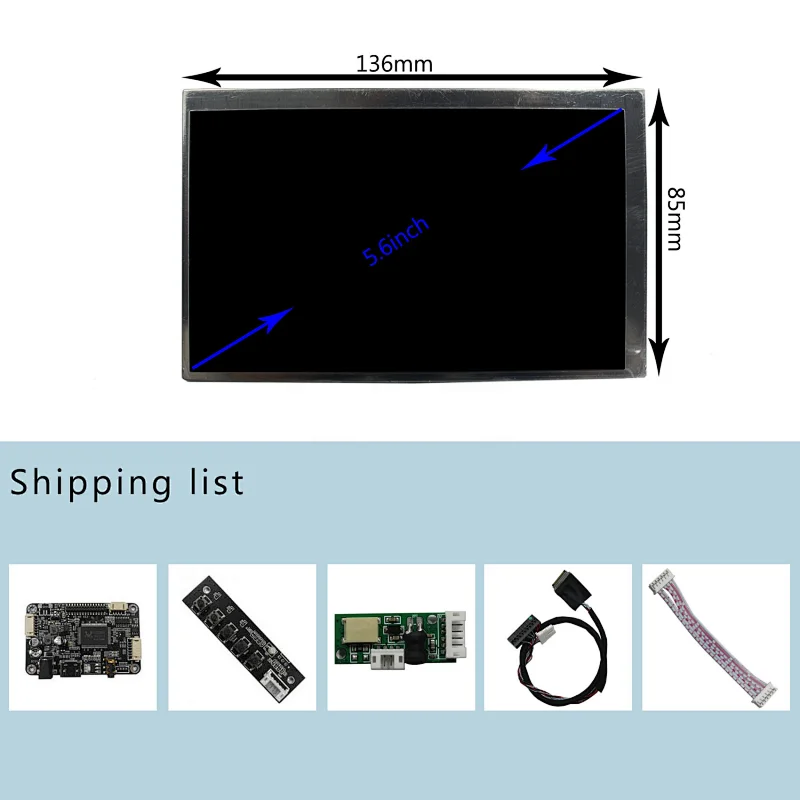

Outline Size 136.8 × 85.9×4.9 (H×V×D)
Display Area 122.88 × 72 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 40/40/20/30 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 25 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.) - Packing list :

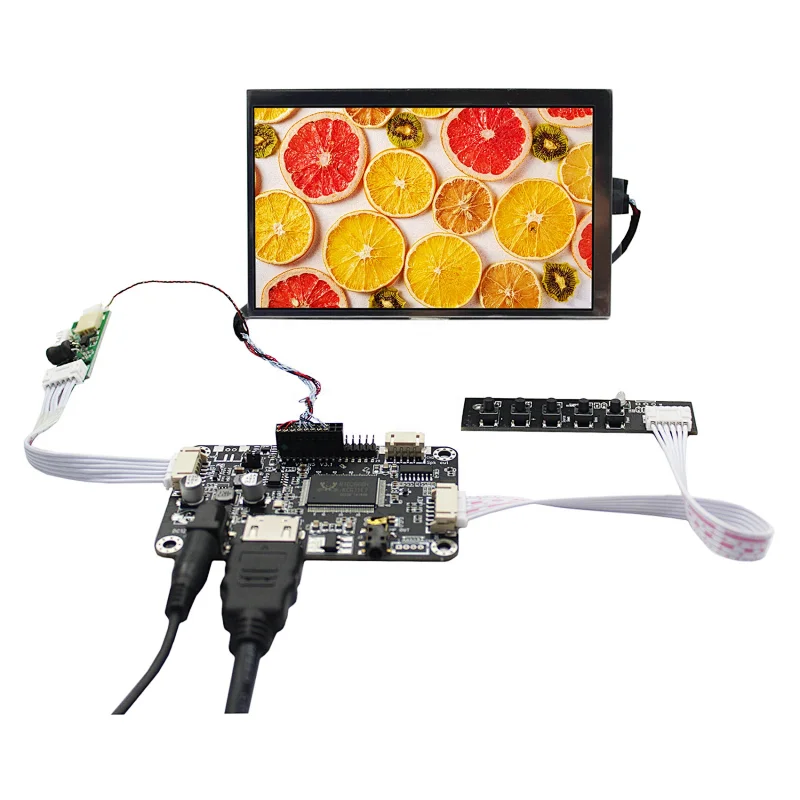

1× HDMI Audio LCD Controller Board
1× 5.6inch LTD056ET3A 1024X600 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
