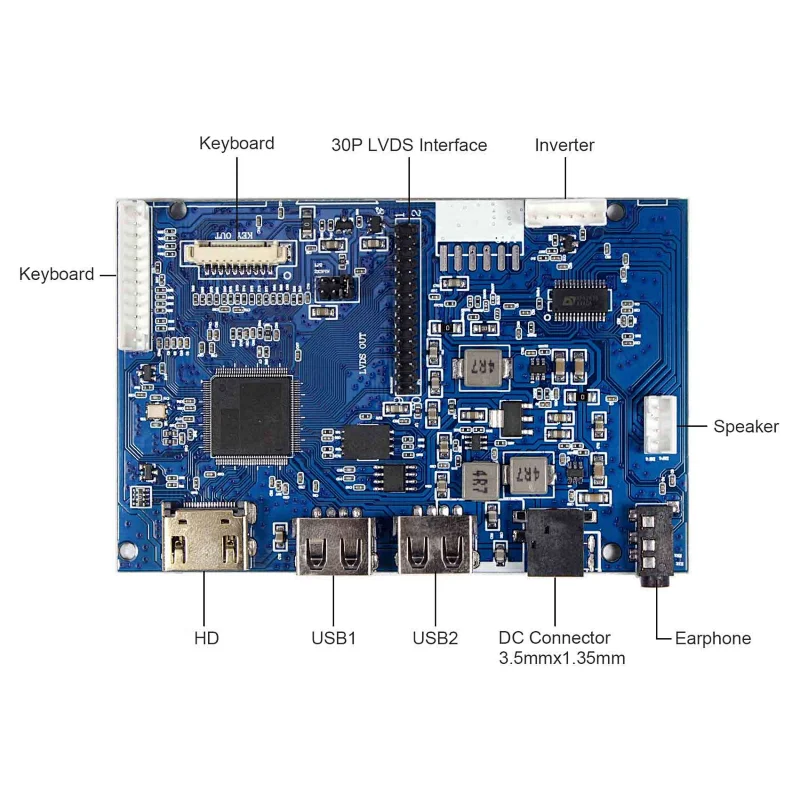

- LCD Controller Board:
HD-MI USB Android LCD Controller Board Work for LVDS LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI 1.4 USB
USB Port:
Support Video Play
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm - 21.5"1920x1080 1000nit LCD Screen:
Display Mode MVA, Normally Black, Transmissive
Resolution 1920(RGB)×1080, FHD, 102PPI
Outline Size 487.664(W)×279.286(H) ×1.29(D) mm
Display Area 476.064(W)×267.786(H) mm
Brightness 1000 cd/m²
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥20)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight WLED

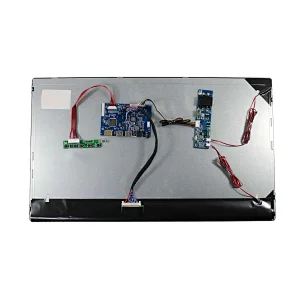

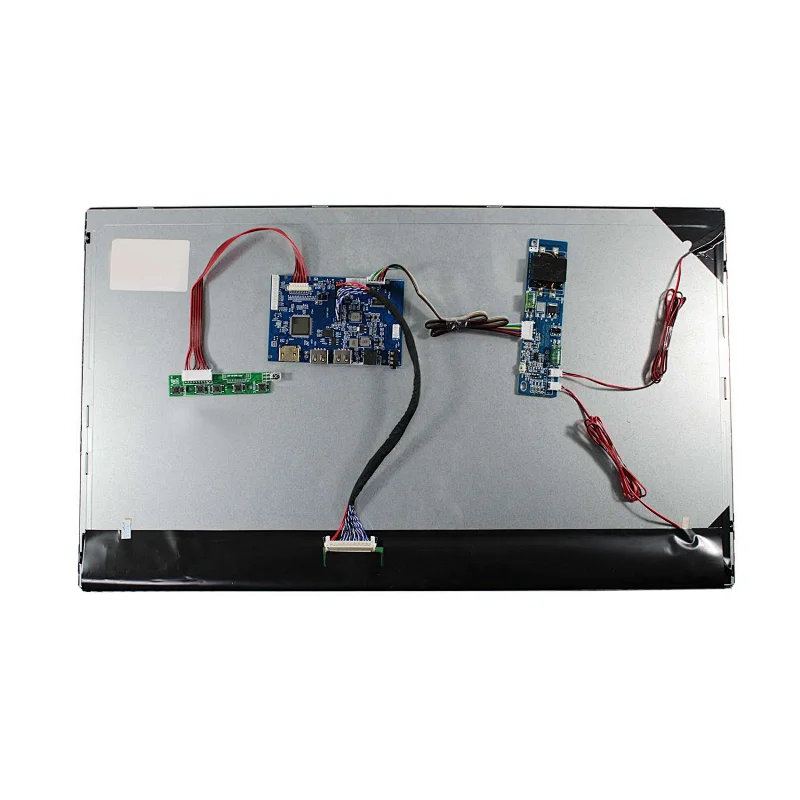

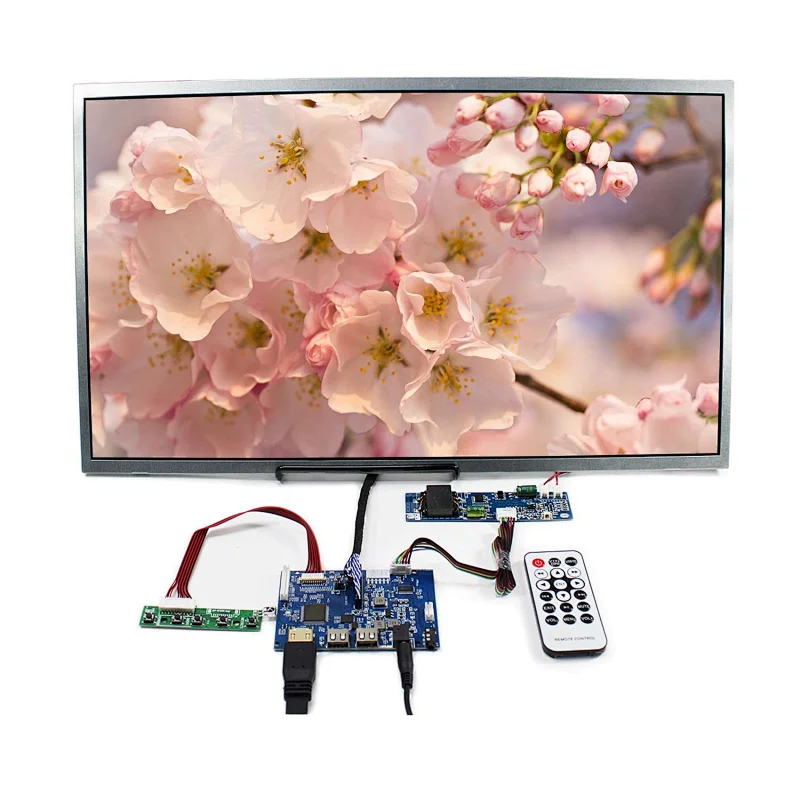

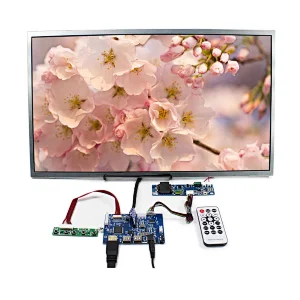

Input Voltage 5.0V (Typ.) - Packing list:
1× HD-MI VGA USB LCD Controller Board VS-TY2660-899
1× 21.5"1920X1080 1000nit LCD Screen

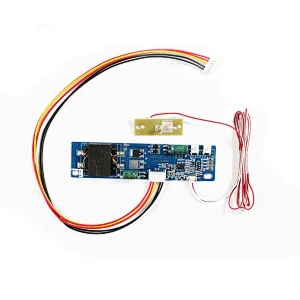

1× Inverter Board
1× Backlight Cable
1× Keyboard With Cable
