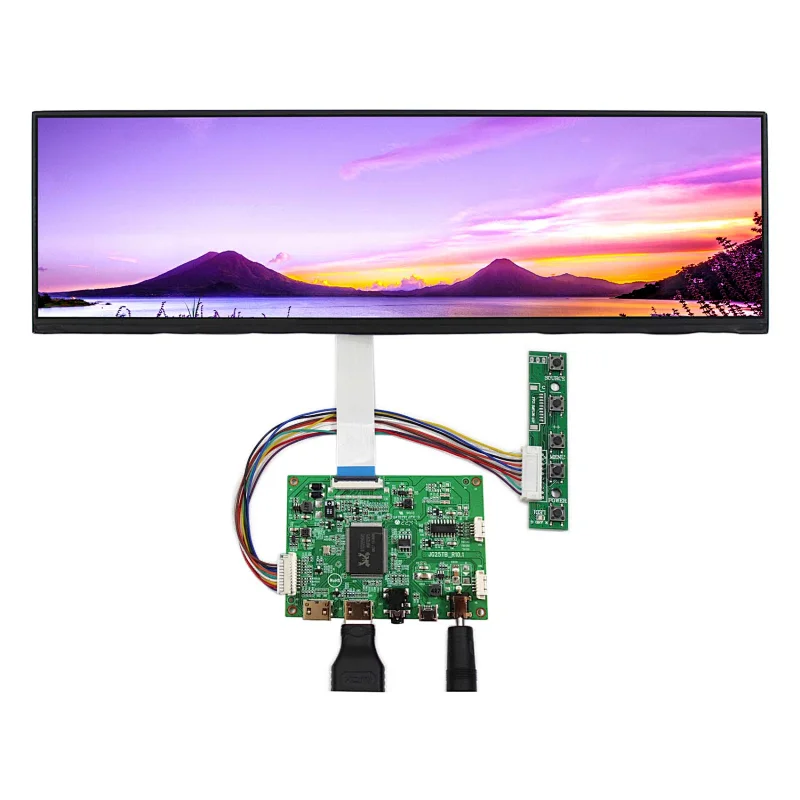

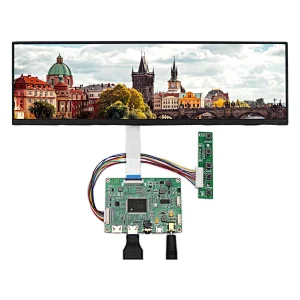

EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system
EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system

EDP 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen work with HD MI Board for mall /car/ navigation/ shelves booking system

Model NO.
K002566 VS-RTD2556HM-V1+NV126B5M-N41 1920X515
Delivery:
EXW or FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

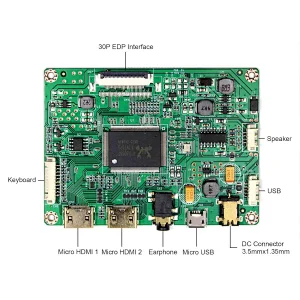

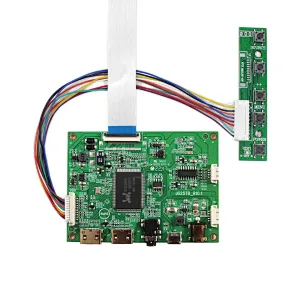

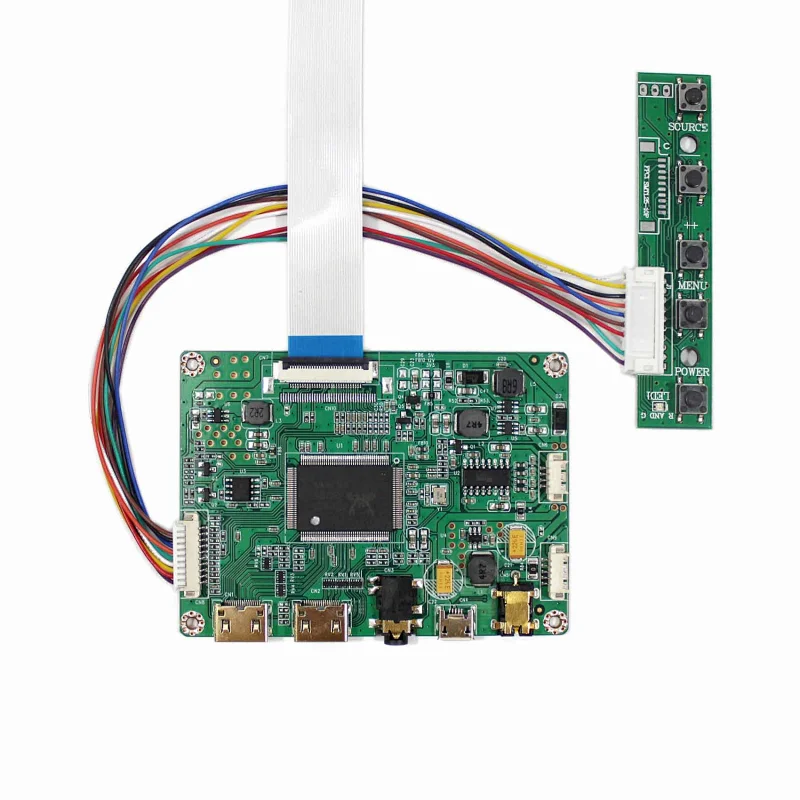

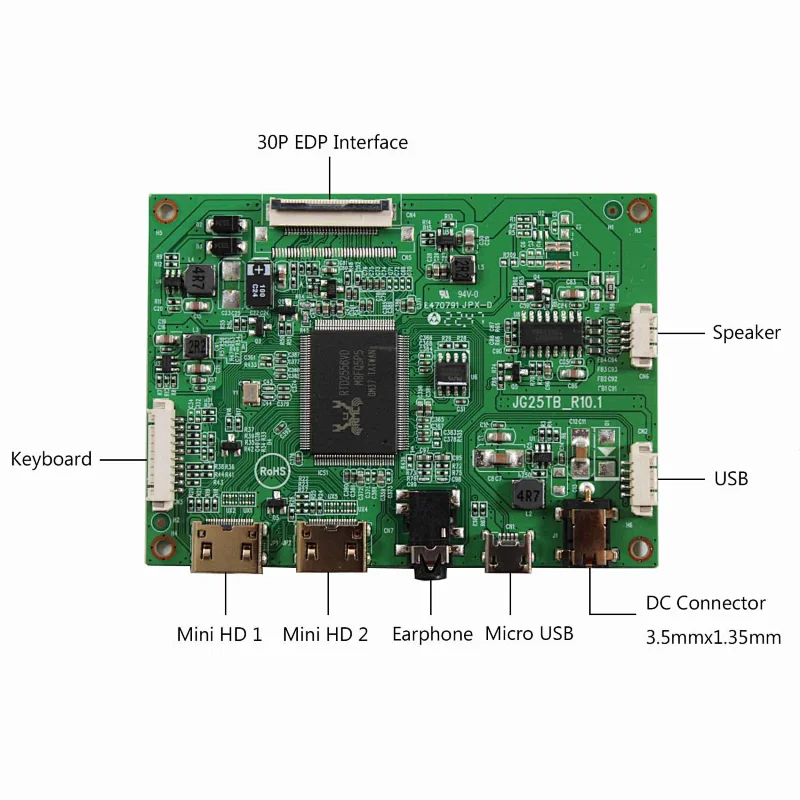

  • LCD Controller Board:
    HDMI Board Work for 30Pin EDP LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Audio Input: 2HDMI Mini
    Audio Output: Earphone
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English French German Spanish Italian And So On

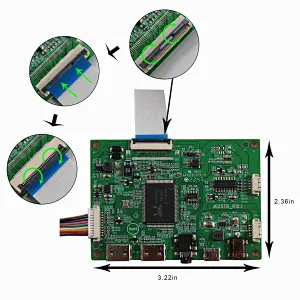

    Board Size: 82mm x 60mm x 5mm

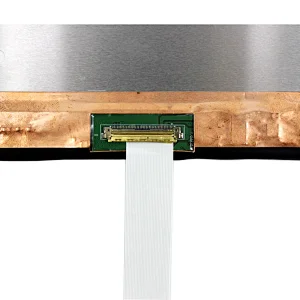

  • 12.6"NV126B5M-N41 1920X515 LCD Screen:
    Display New ModeADS, Normally Black, Transmissive
    Resolution 1920RGB)×515
    Outline Size 315.61×94.02×5.3(H×V×D)
    Display Area 309.31×82.97 (H×V)
    Brightness250 cd/m² (Typ.)
    Contrast Ratio 1200:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface eDP (2 Lanes), Connector,40pins
    Backlight  WLED
    Input Voltage 3.3V (Typ.)

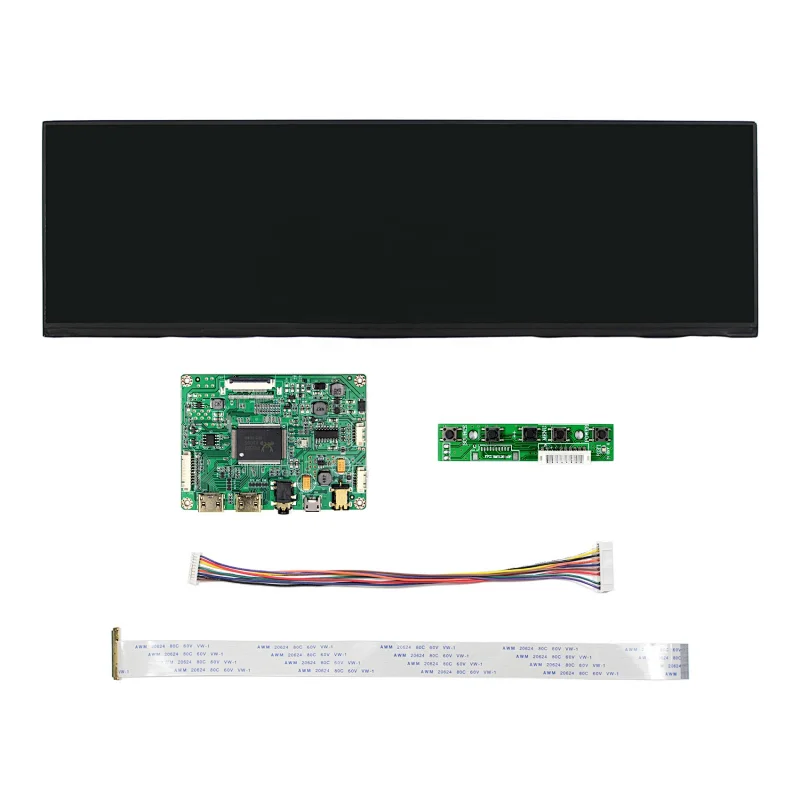

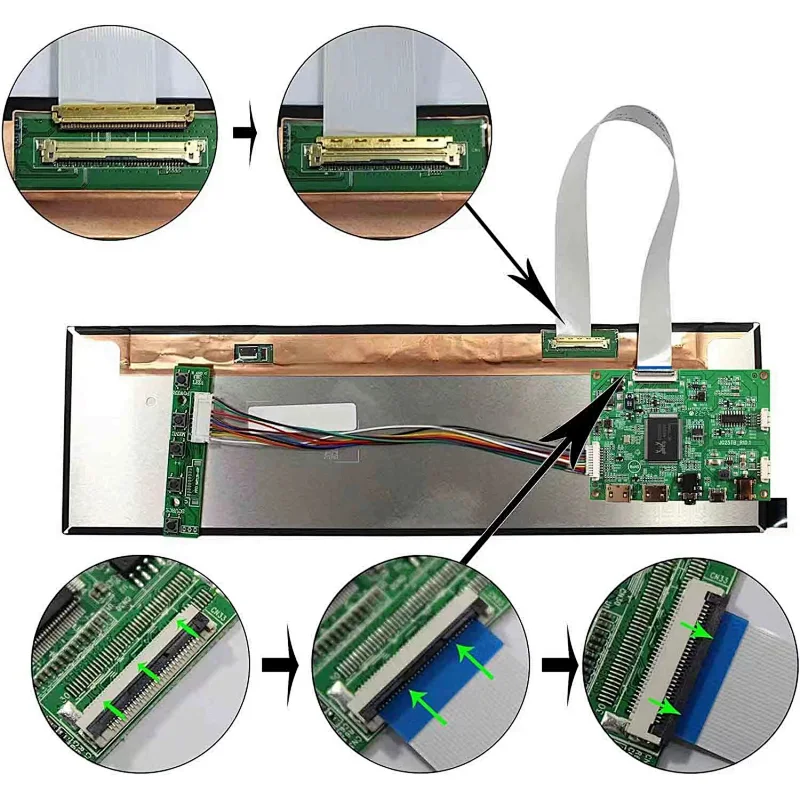

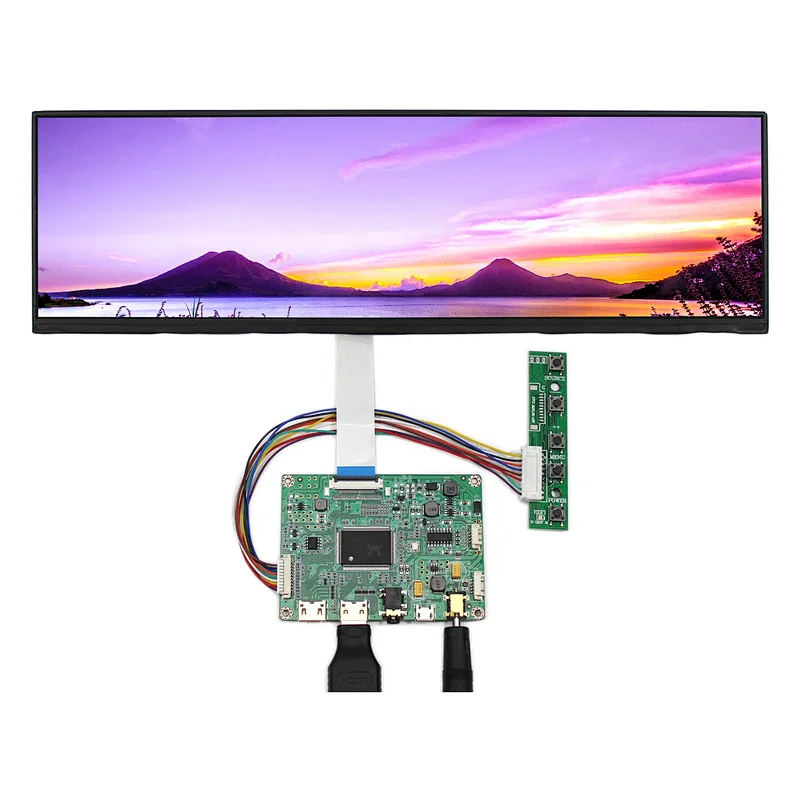

  • Packing list:
    1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1
    1× 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
    When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.
    Micro USB output 5Vdc 500mA.
    When use Micro USB as input. Power Supply Input Voltage 5Vdc.
    When use 5Vdc as input. Power Supply Input current more than 2A.
    When use 12Vdc as input. Power Supply Input current more than 1A

Send Message

* clear input
*

Related Products

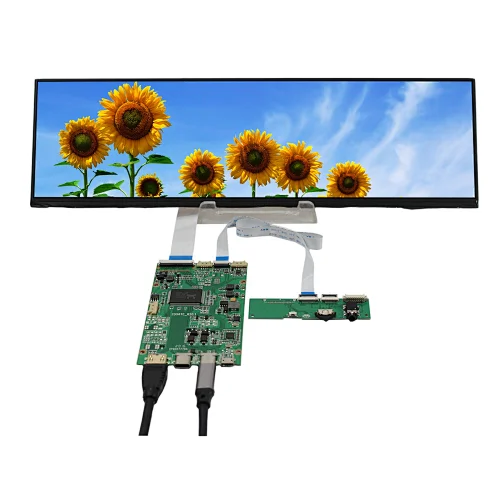

HDM I Type C Control Board work with 12.6" NV126B5M-N41 1920X515 LCD Screen for shopping shelf display
HDM I Type C Control Board work with 12.6" NV126B5M-N41 1920X515 LCD Screen for shopping shelf display
Model NO. K002638 VS-RT2556T2K+NV126B5M-N41 1920X515

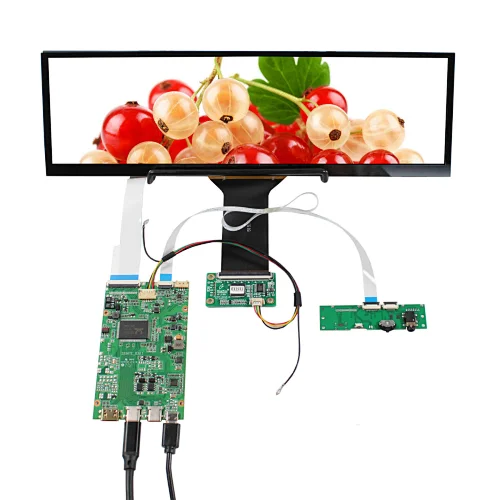

HD-MI Board Work for 30Pin 12.6" NV126B5M-N41 1920X515 EDP touch panel LCD Screen
