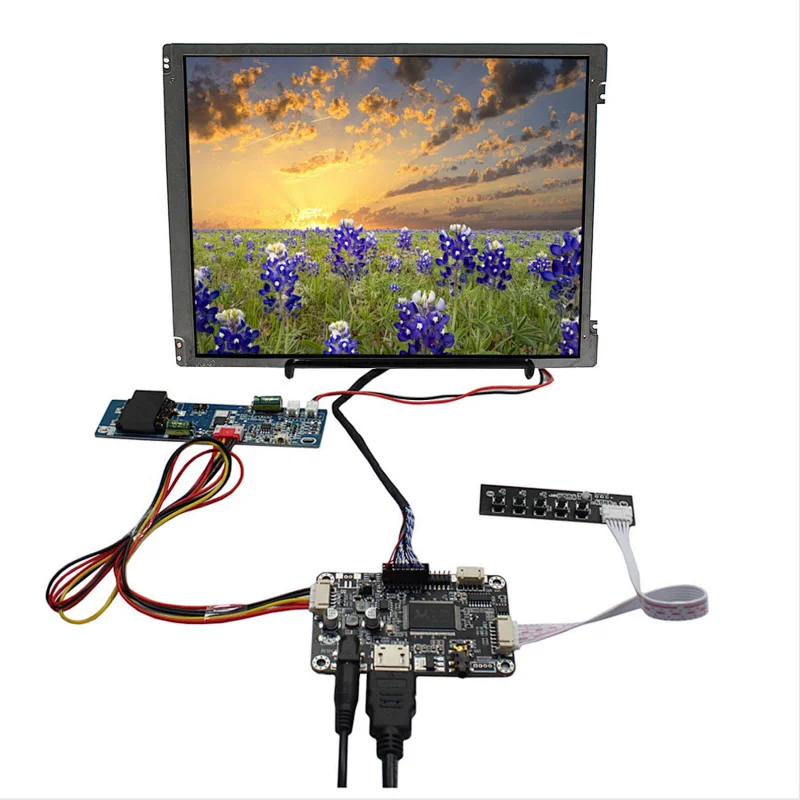

10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board

10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI Audio LCD Controller Board

Model NO.
K002805 VS-N5V3.1H+G104SN03-1000
Minimum order quantity:
1
Quantity:

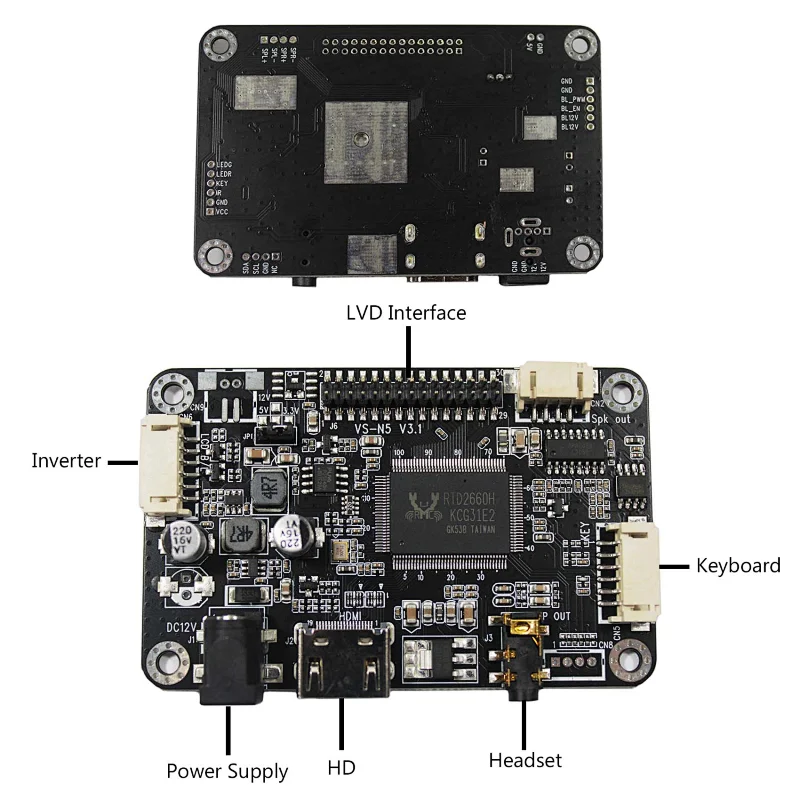

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm

10.4" 1000nit 800X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×600

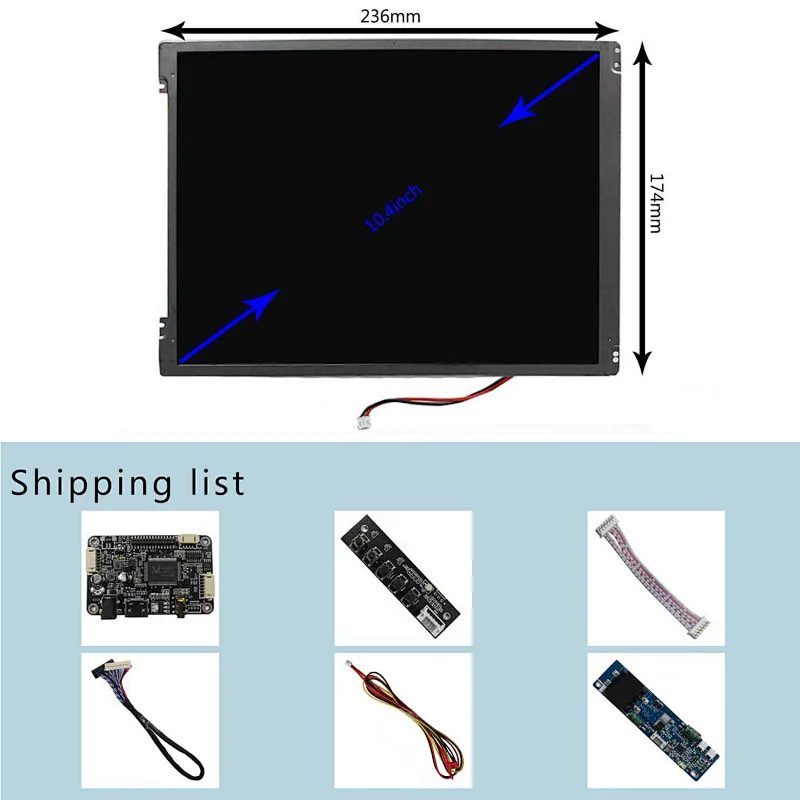

Outline Size 236 ×174.3×4.9 (H×V×D)
Display Area 211.2 ×158.4 (H×V)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

Packing list :
1× HDMI Audio LCD Controller Board
1×10.4inch 1000nit 800X600 LCD Screen
1× Converter Board

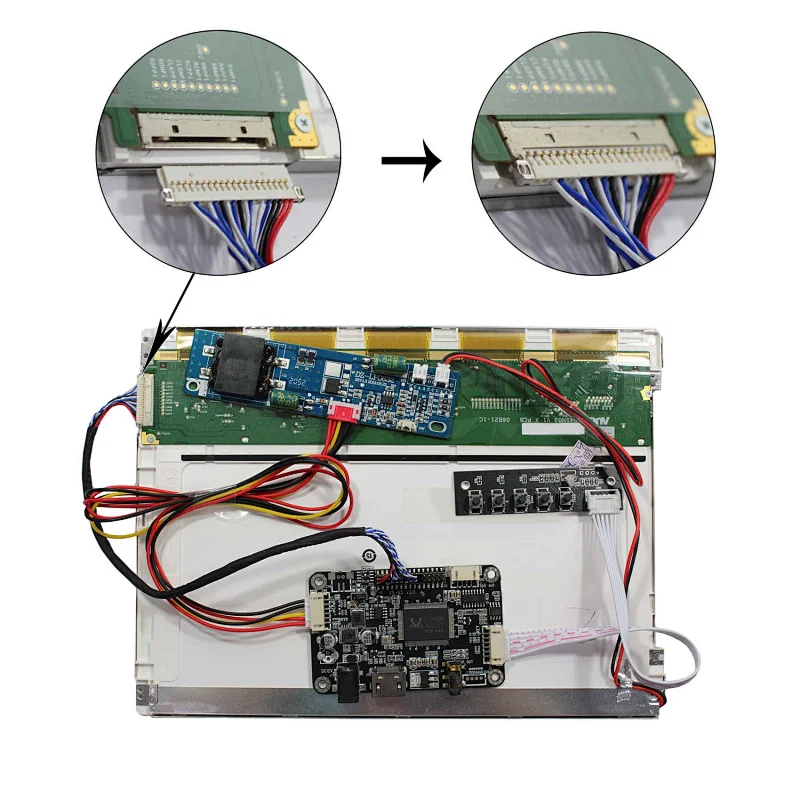

1× LVDS Cable
1× Keyboard With Cable


Send Message

* clear input
*

Related Products

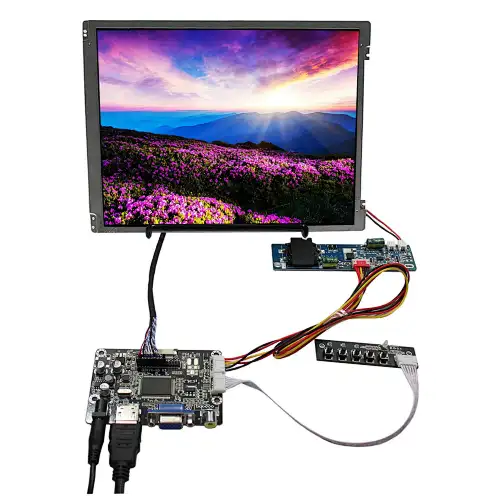

10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
10.4inch 800X600 1000nit High Brightness LCD Screen With HDMI VGA AV USB RF LCD Controller Board
Model NO. K002804 T.SK105A.03+G104SN03-1000 800X600 1000nit

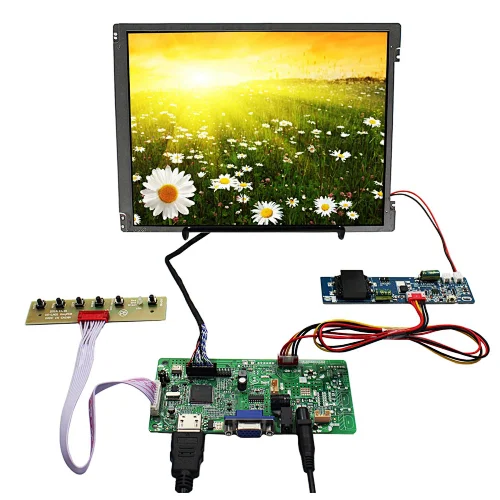

HDMI VGA AV LCD Controller Board with 10.4inch 800X600 1000nit TFT- LCD Screen
