19.0" 1280X1024 1000nit High Brightness LCD Screen With HDMI VGA DVI LCD Controller Board

Model NO.
K002684-M.NT68676+G190ETN01.1 1280X1024
Minimum order quantity:
1
Quantity:

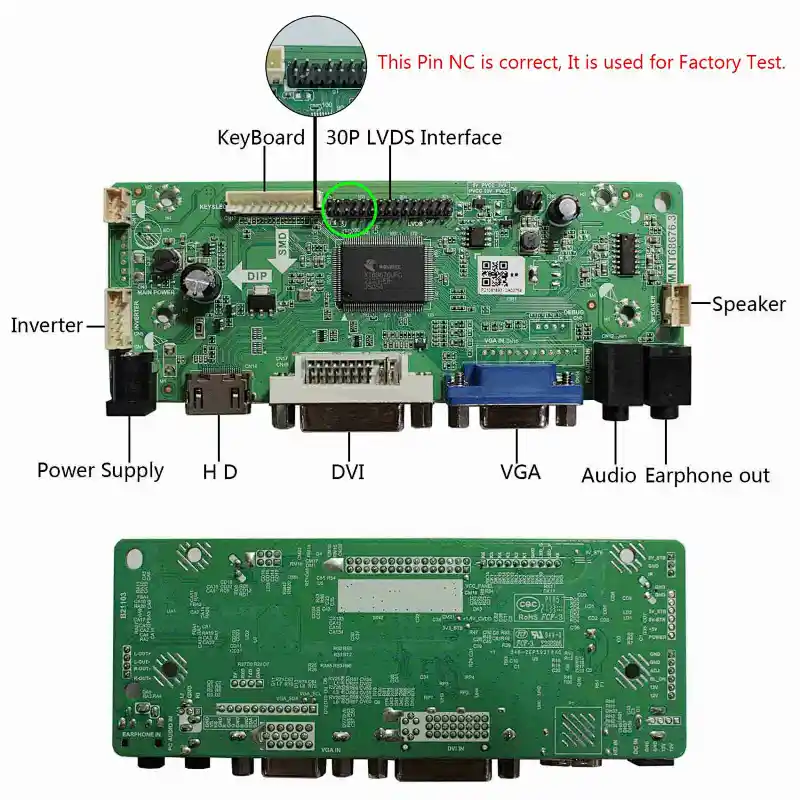

LCD Controller Board:
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

19.0"G190ETN01-1000 1024X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280(RGB)×1024, SXGA, 86PPI
Outline Size 396(W)×324(H) ×11.7(D) mm
Display Area 376.32(W)×301.056(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  35.0V (Typ.)

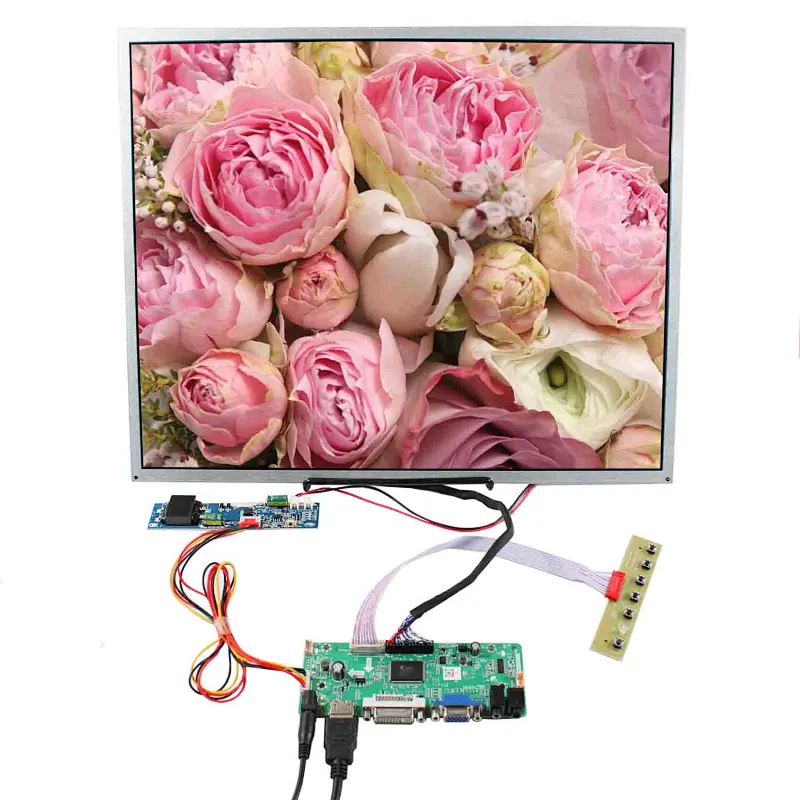

Packing list:
1× HDMI VGA DVI LCD Controller Board M.NT68676
1×19.0"G190ETN01-1000 1280X1024 LCD Screen

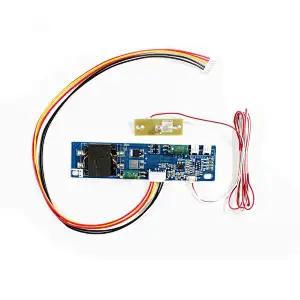

1× Inverter Board
1×Backlight Cable
1× Keyboard With Cable
