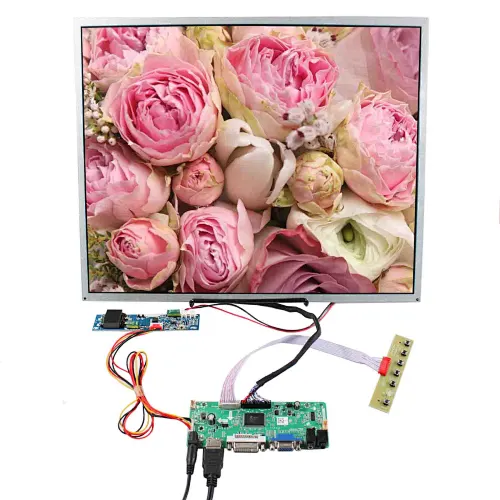

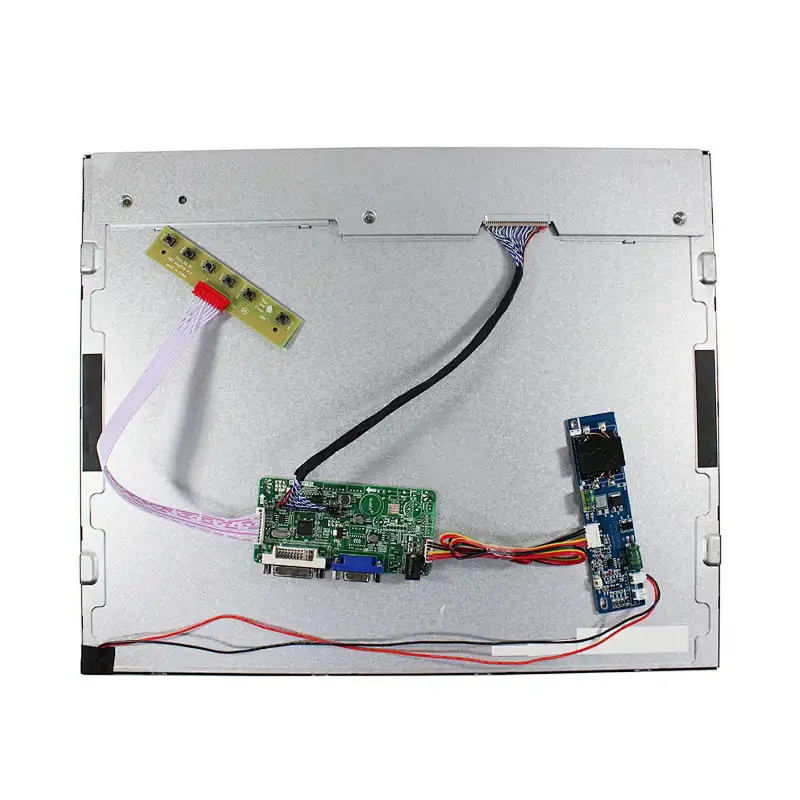

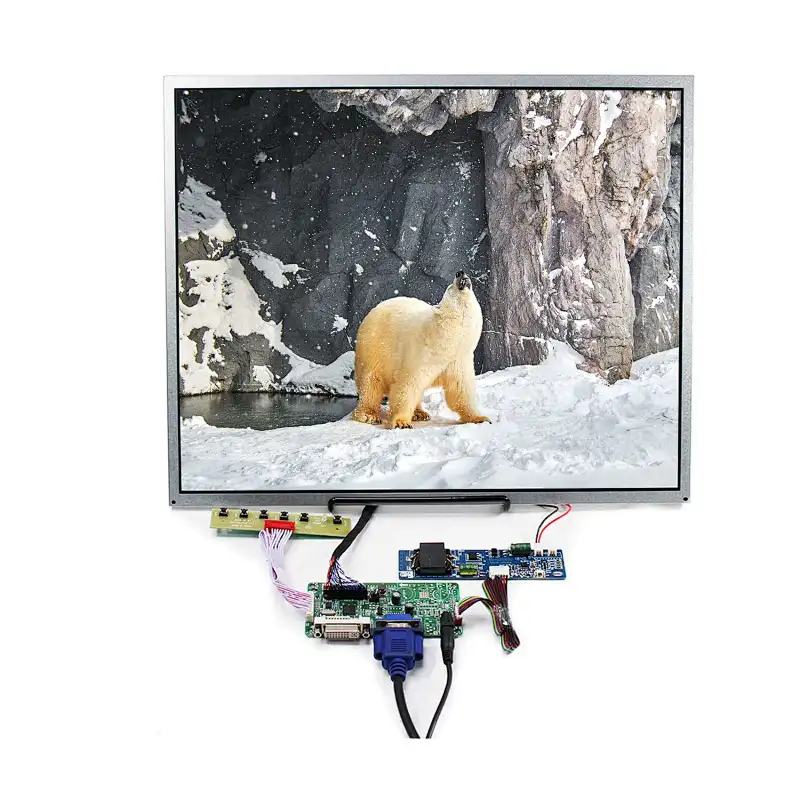

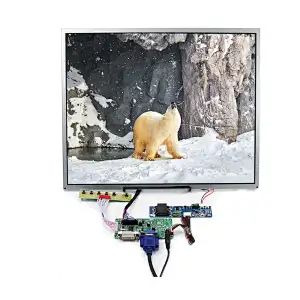

19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board
19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board

19inch 1280X1024 Outdoor Screen 1000nit LCD Display Panel with VGA DVI LCD Controller Board

Model NO.
K002687-RT2281+G190ETN01.1 1280X1024
Minimum order quantity:
1
Quantity:
LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

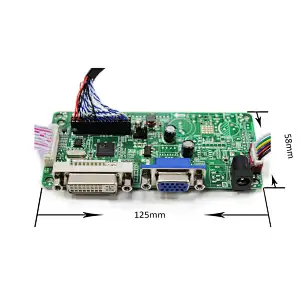

Board Size: 125mm x 58mm x 17mm

19.0"G150XGE-L04 1024X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280(RGB)×1024, SXGA, 86PPI
Outline Size 396(W)×324(H) ×11.7(D) mm
Display Area 376.32(W)×301.056(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  35.0V (Typ.)

Packing list:
1× VGA+DVI LCD Controller Board RT2281
1×19.0"G190ETN01.1 1280X1024 LCD Screen
1× LVDS Cable

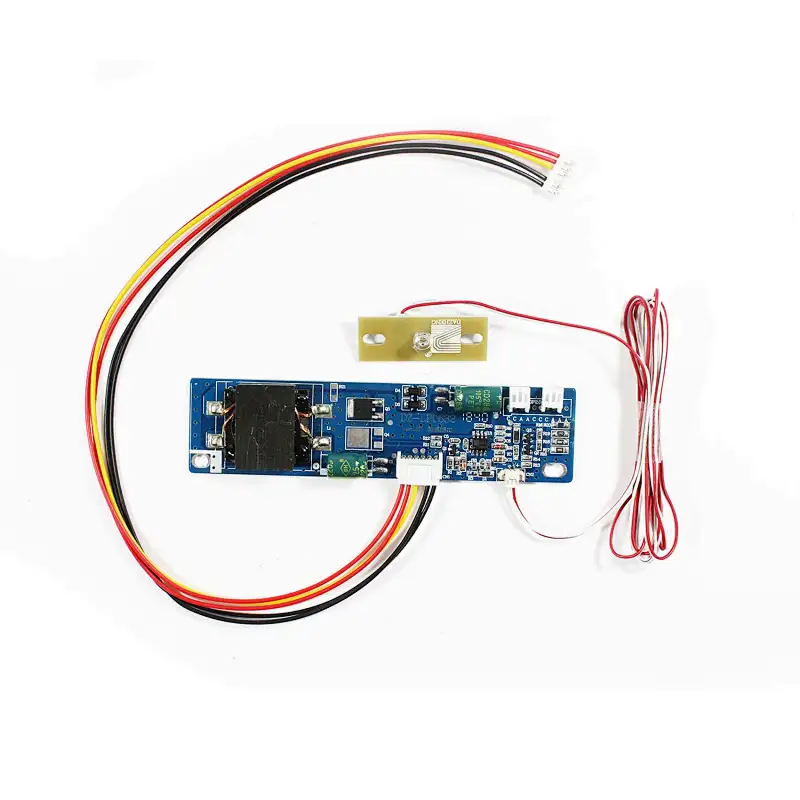

1× Backlight Cable
1× Keyboard With Cable
