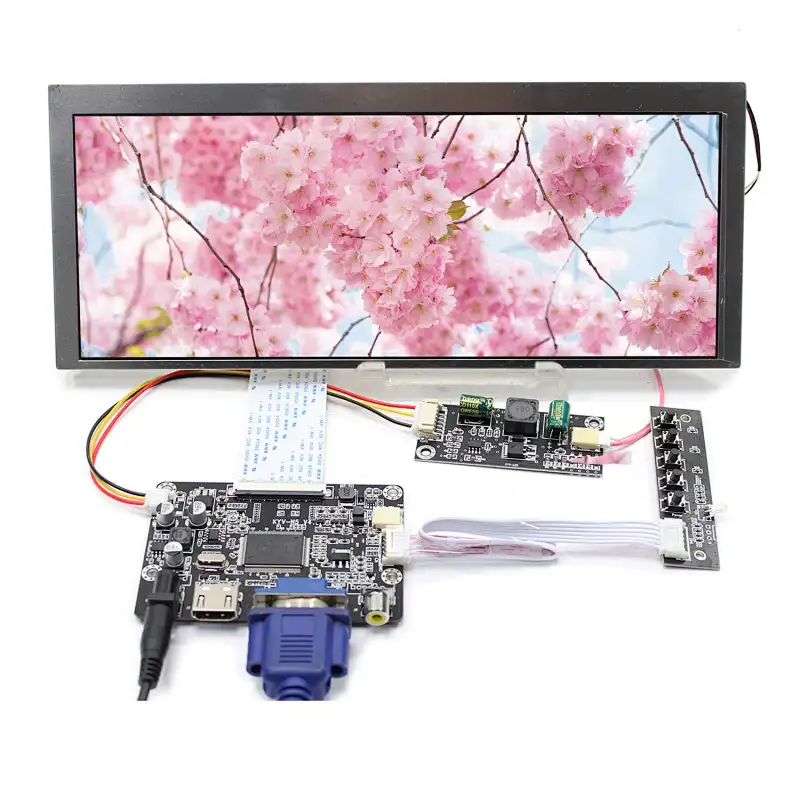

10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board
10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board

10.3inch CLAA103WA01 XN 1280x480 800 nit TFT-LCD Screen with HD-MI VGA AV LCD Controller Board 10.3inch 1280x480 lcd screen 10.3inch CLA103WA01 XN lcd 10.3inch with lcd driver board hdmi vga av lcd controller board

Model NO.
K002715 VS-KYV-N5 V4 60pin+CLAA103WA01 XN 1280X480
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

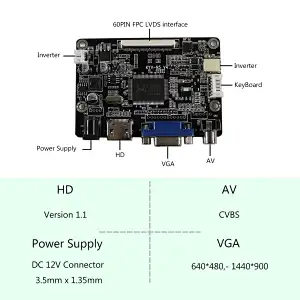

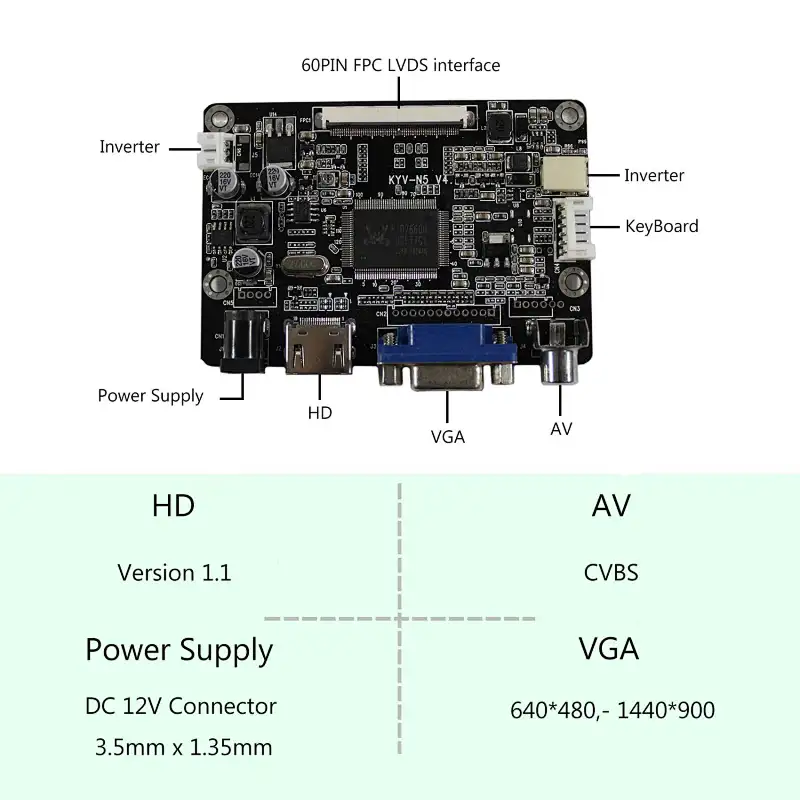

LCD Controller Board:
HD-MI VGA AV LCD Board Work for LVDS Interface LCD Screen
60Pin FPC LVDS Connector for 8inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 62mm x 15mm

10.3"CLAA103WA01 XN 1280x480 LCD Screen:
Display Mode HFFS, Normally Black, Transmissive
Resolution 1280RGB)×480
Outline Size 265.2× 109.8×7.5 (H×V×D)
Display Area 243.84×91.44 (H×V)
Brightness 800 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Signal Interface LVDS(1ch 6bit/8bit) FPC 60Pin
Backlight  WLED
Input Voltage  3.3V /13V(Typ.)

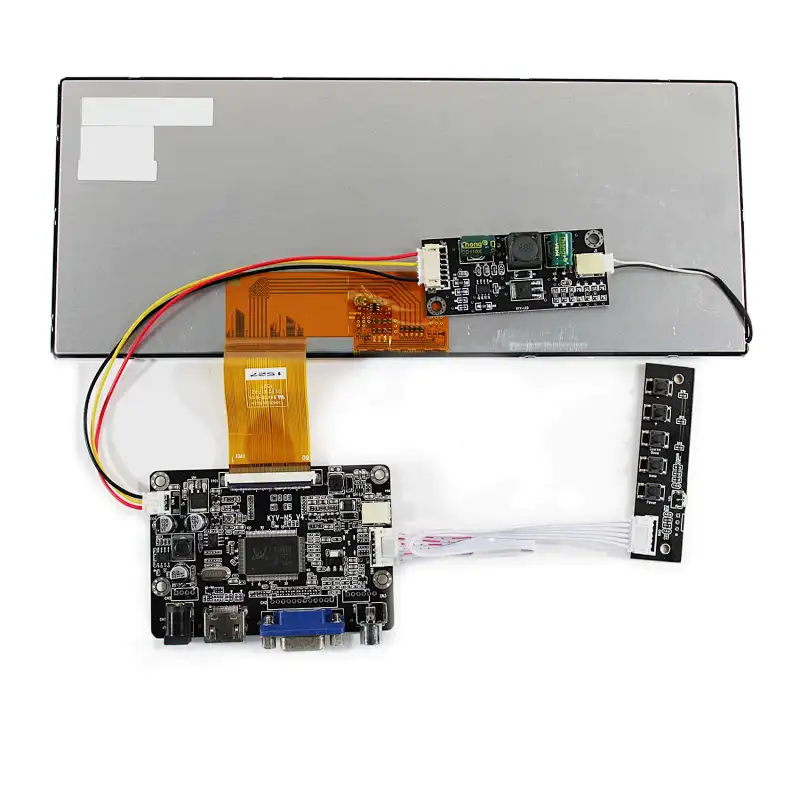

Packing list:
1× HD-MI VGA AV LCD Controller Board KYV-N5 V4
1× 10.3"CLAA103WA01 XN 1280x480 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
