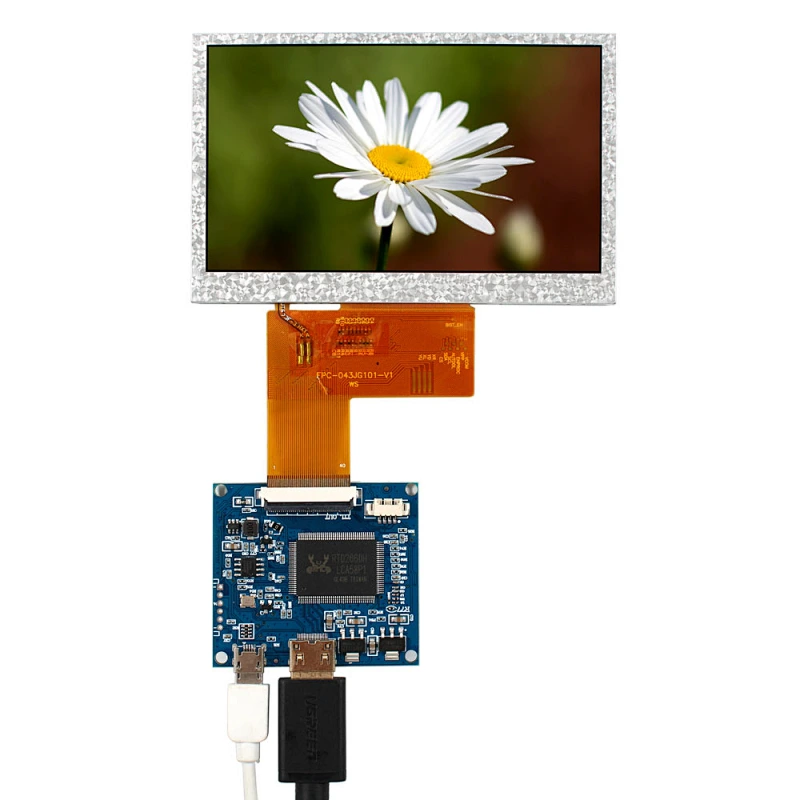

4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board
4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board
4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board
4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board
4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board
4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board
4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board
4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board
4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board

4.3inch VS043T-006A 800X480 Brightness 1000nit TFT-LCD Screen With HDMI LCD Controller Board

Model NO.
K003003-HDHMI 5V+VS043T-006A-1000 800x480 ips
Minimum order quantity:
1
Quantity:
LCD Controller Board:
HD-mini LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter: DP 5V-9V dc More than20W.
Come In Standby Model When Not Input Signal
Video Input: HD-mini
OSD: No

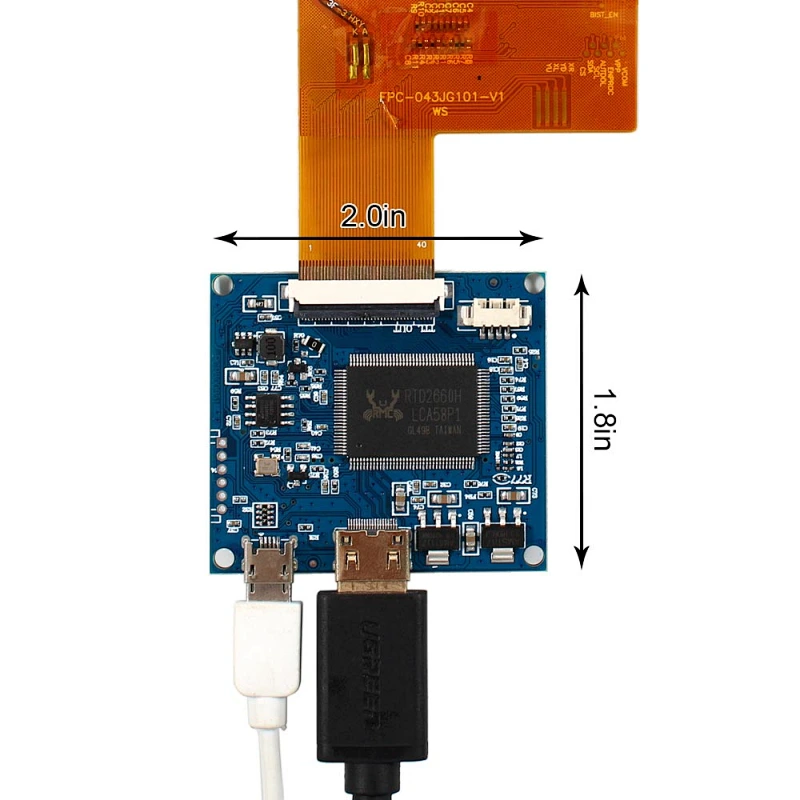

Board Size:52mm x 46mm x 6mm
4.3"VS043T-006A 800X480 IPS LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 800(RGB)×480
Outline Size 105.5 × 67.2×3.1 (H×V×D)
Display Area 95.04 × 53.86 (H×V)
Brightness1000 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

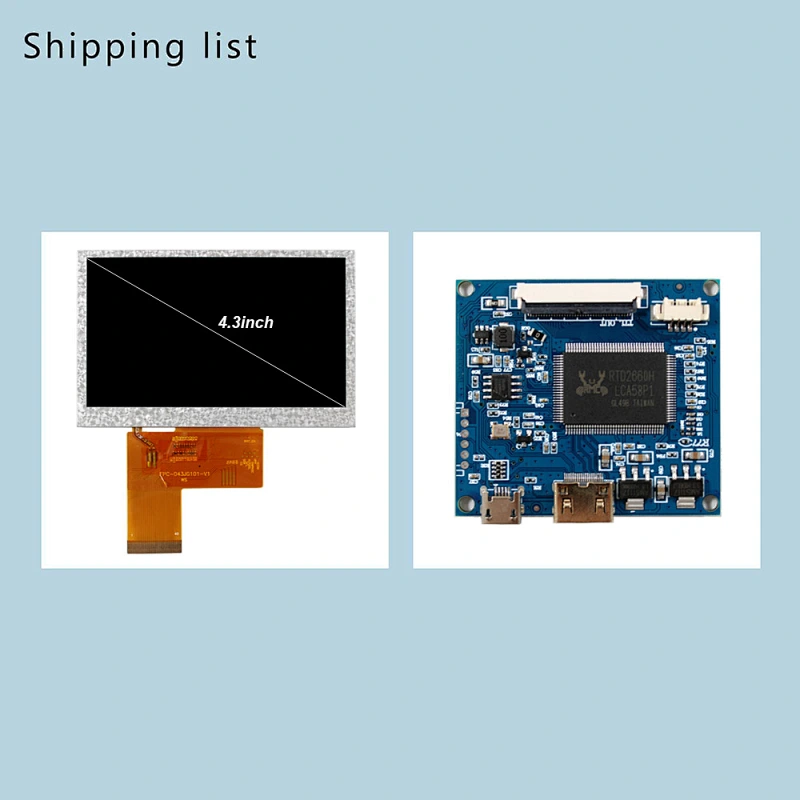

Packing list:
1×HDMI LCD Controller Board VS-TY2660V1-851
1× 4.3inch VS043T-006A 800X480 LCD Screen
