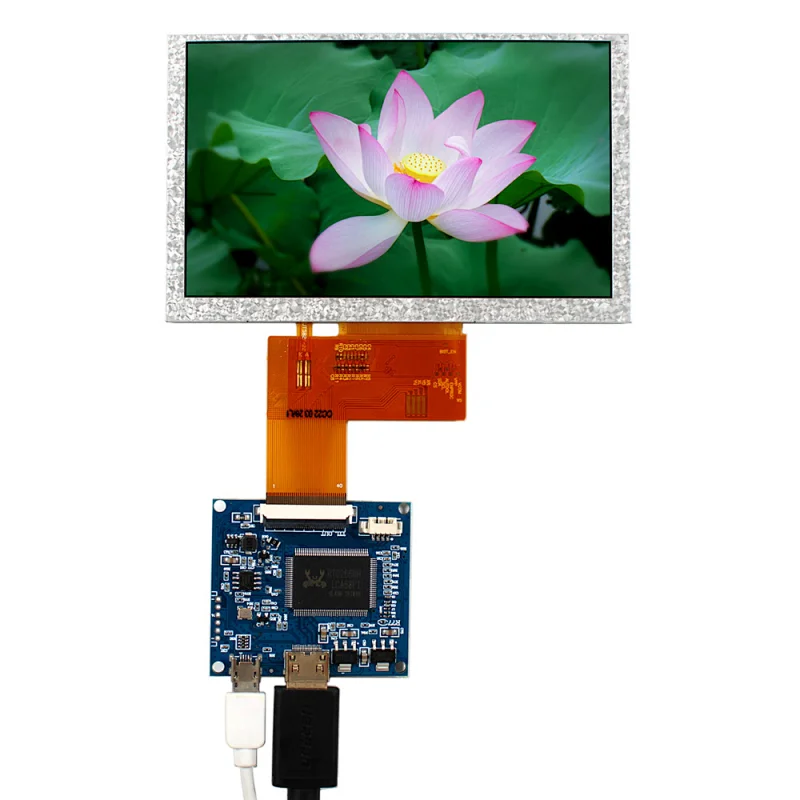

5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board
5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board
5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board
5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board
5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board
5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board
5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board
5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board
5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board

5inch VS050T-006 800X480 IPS High Brightness 1000nit TFT-LCD Screen with HDMI LCD Controller Board

Model NO.
K003004-VS-TY2660V1-851 DHMI 5V+VS050T-006A-1000 800x480 ips
Minimum order quantity:
1
Quantity:
LCD Controller Board:
HD-mini LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter: DP 5V-9V dc More than20W.
Come In Standby Model When Not Input Signal
Video Input: HD-mini
OSD: No

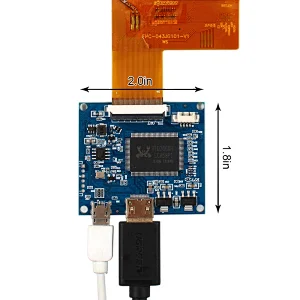

Board Size:52mm x 46mm x 6mm
5"VS050T-006A 800X480 IPS LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800（RGB)×480
Outline Size 120.7 × 76.3×3.3 (H×V×D)
Display Area 108 × 64.8 (H×V)
Brightness1000 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface Parallel
(1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list:
1×HDMI LCD Controller Board VS-TY2660V1-851
1× 5inch VS050T-006 800X480 IPS LCD Screen
