10.4inch VS140T-003A 1024x768 IPS LCD Screen Touch Panel with HD-MI USB VAG AUDIO LCD Board lcd panel touch screen lcd panel with touch screen

10.4inch VS140T-003A 1024x768 IPS LCD Screen Touch Panel with HD-MI USB VAG AUDIO LCD Board lcd panel touch screen lcd panel with touch screen

Model NO.: K002890-VS-M5V4.1 HDMI+VS104T-003A +TP
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

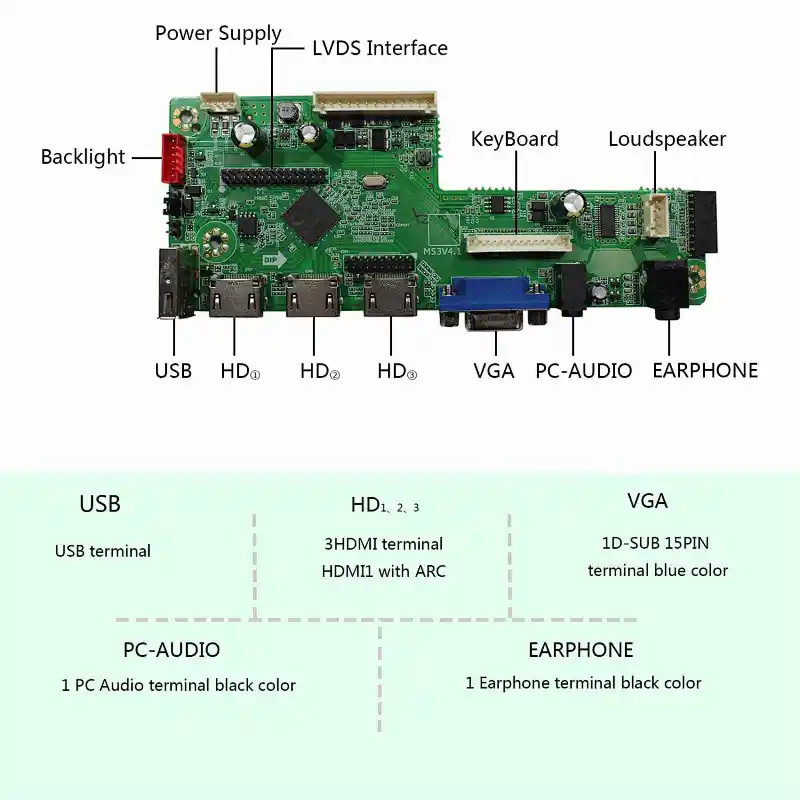

LCD Controller Board:
3X HD-MI VGA USB Audio LCD Controller Board for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI USB VGA
Audio Input: HD-MI
Audio Output: Speaker Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English Chinese French German Spanish Italian Russian Portuguese

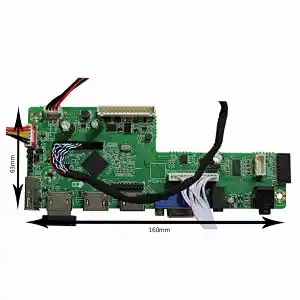

Board Size: 160mm x 63mm x 17mm

10.4"VS104T-003A 1024X768 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024(RGB)×768[XGA]
Outline Size 225.8 × 174.3×5.6(H×V×D)
Display Area 211.2× 158.48 (H×V)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

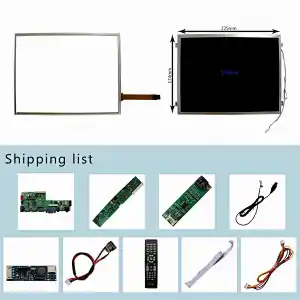

Packing list :
1× HD-MI USB VAG AUDIO LCD Board VS-M53V4.1
1× 10.4inch VS140T-003A 1024x768 IPS LCD Screen Touch Panel VS104TP-A1
1× LVDS Cable
1× Inveter Board
1×Keyboard With Cable
1× USB Controller Card
1× USB Cable
1× Remote Control (Battery Not included)
