11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd
11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd

11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 IPS LCD Screen With HDMI LCD Controller Board 11.6inch N116HSE-EJ1 N116HSE-EA1 1920X1080 N116HSE-EJ1 N116HSE-EA1 hdmi controller for lcd

Model NO.
K001459-VS-RTD2556H-V1+N116HSE
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

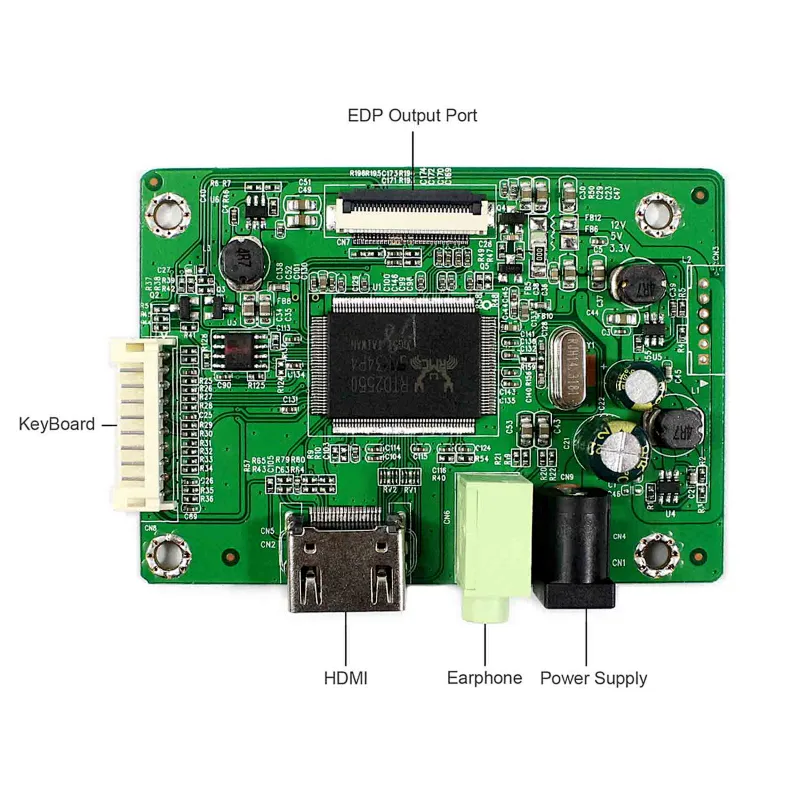

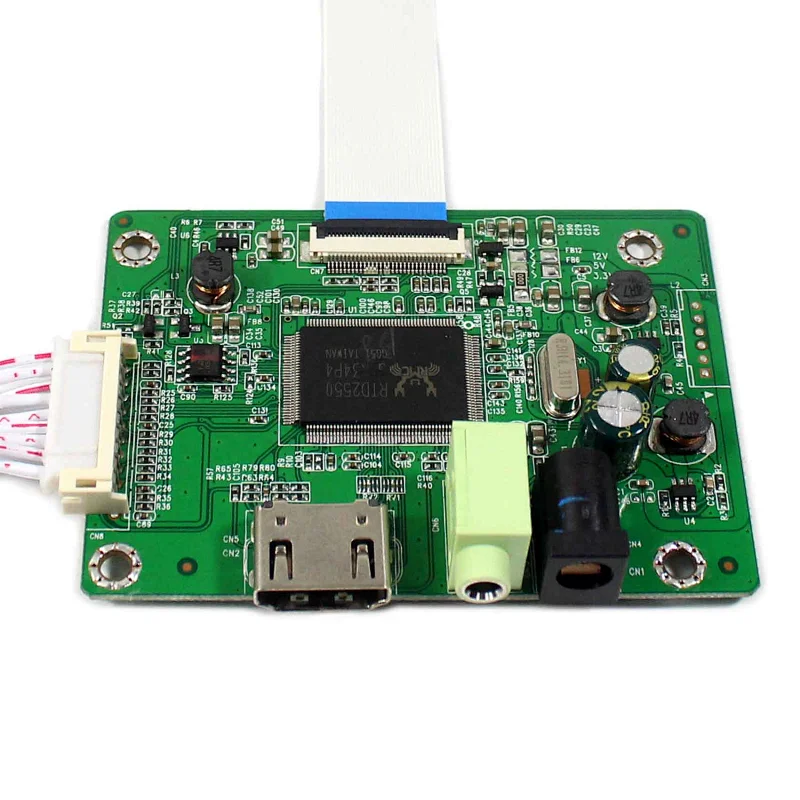

LCD Controller Board:
HDMI Board Work for 30Pin EDP LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size:77mm x 55mm x 16mm

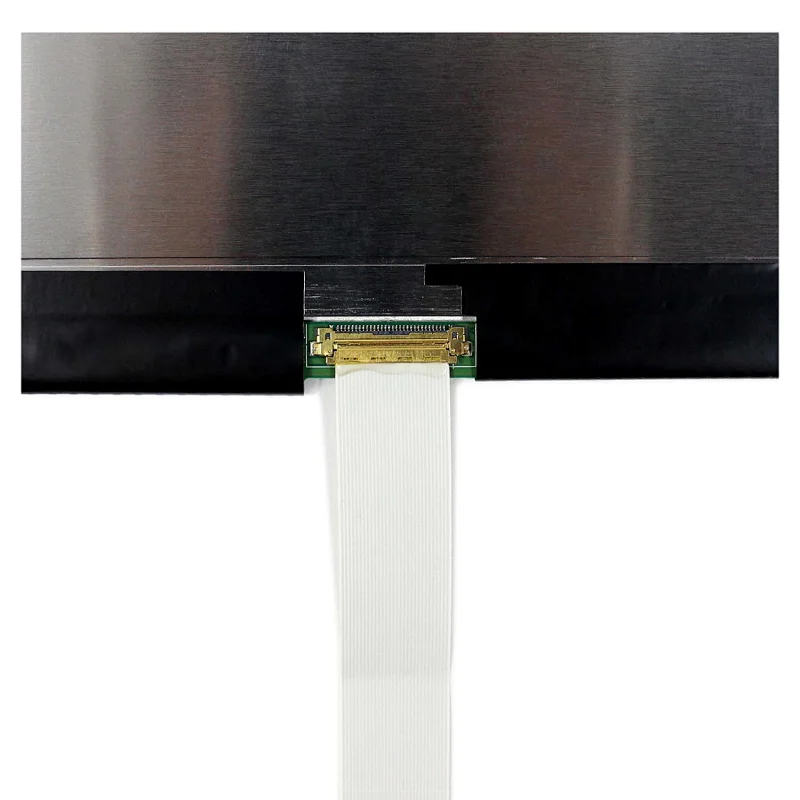

11.6"LCD Screen N116HSE-EJ1 EA1:
Display Mode  AAS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 268 × 156.9 × 2.5 (H×V×D)
Display Area 258.32 × 146.18 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

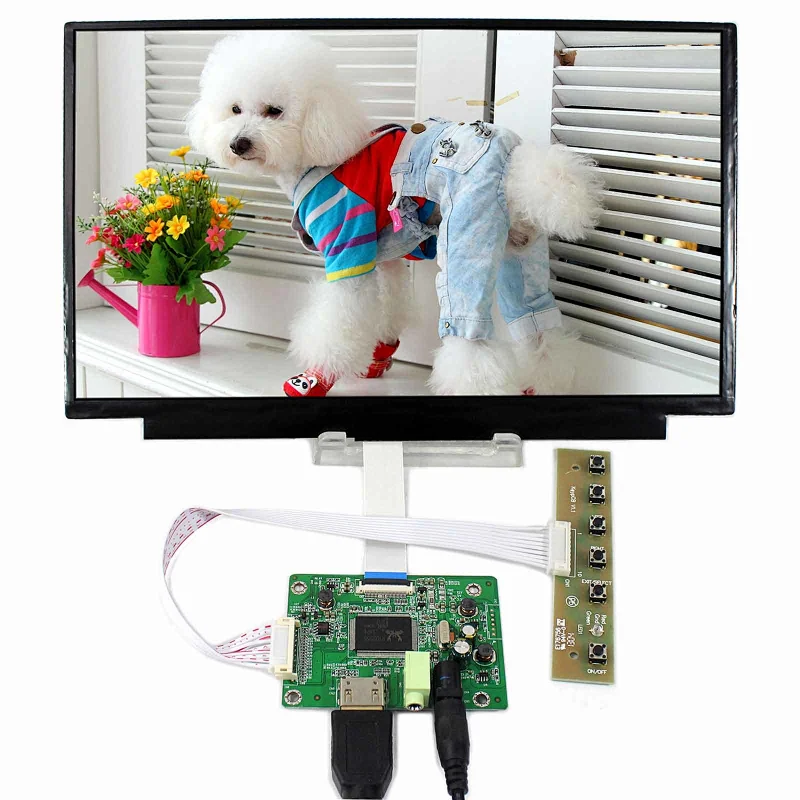

Packing list :
1× HDMI LCD Controller Board VS-RTD2556H-V1
1×11.6inch N116HSE-EJ1/EA1 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
