Model NO.
K002136-VST56+MV238FHM-N10
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

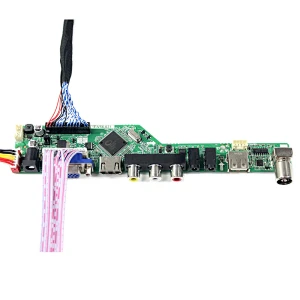

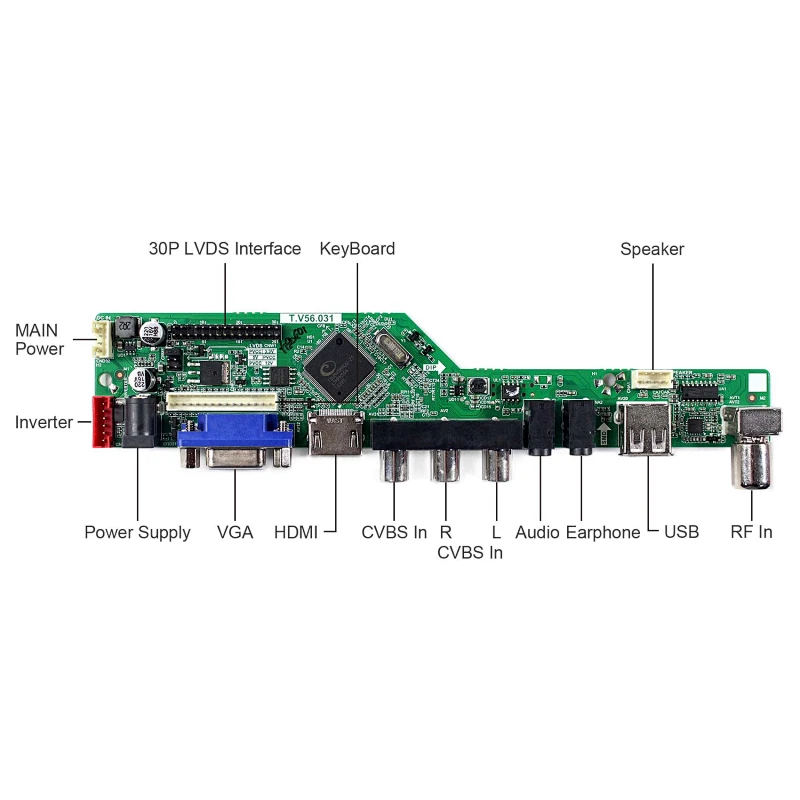

LCD Controller Board:
HDMI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 123mm x 63mm x 15mm

23.8" MV238FHM 1920X1080 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 543 ×317.4×11.4 (H×V×D)
Display Area 527.04 ×296.46(H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

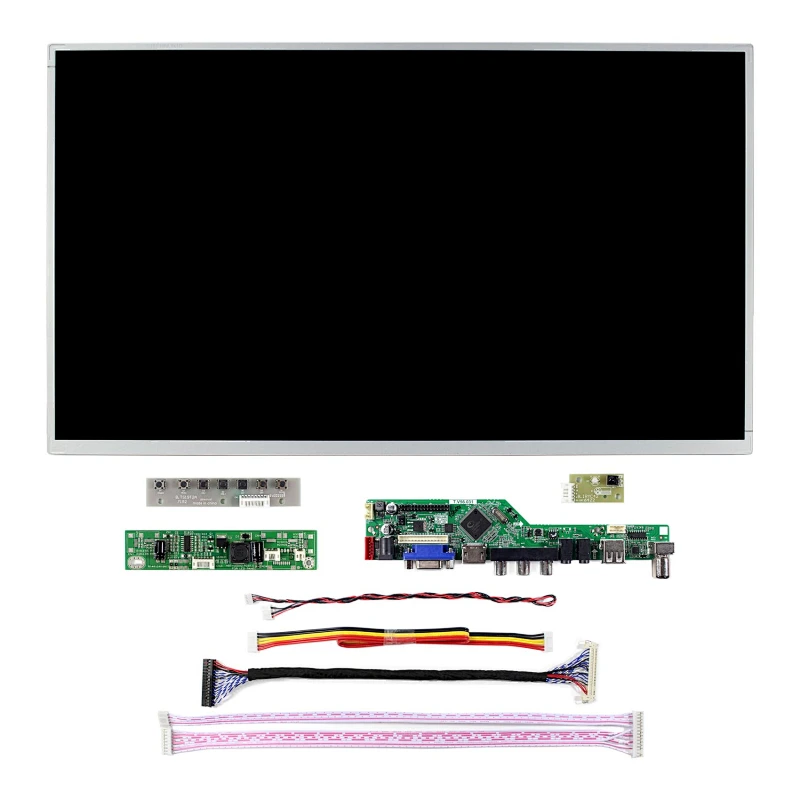

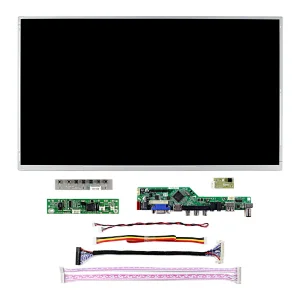

Packing list :
1× HDMI VGA LCD Controller Board VS-W58CDT9-AV7
1× 23.8inchMV238FHM-N10 1920X1080IPSLCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
