  5. HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
Print This Page
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02
HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02

HD-MI USB-C Type-C LCD Controller Board with 15.6inch B156AHN02 1920x1080 IPS LCD Screen 15.6inch B156AHN02 1920x1080 B156AHN02 1920x1080 1920x1080 lcd monitor B156AHN02

Model NO.
K002736 -VS-RT2556T2K+15.6" B156HAN01.1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

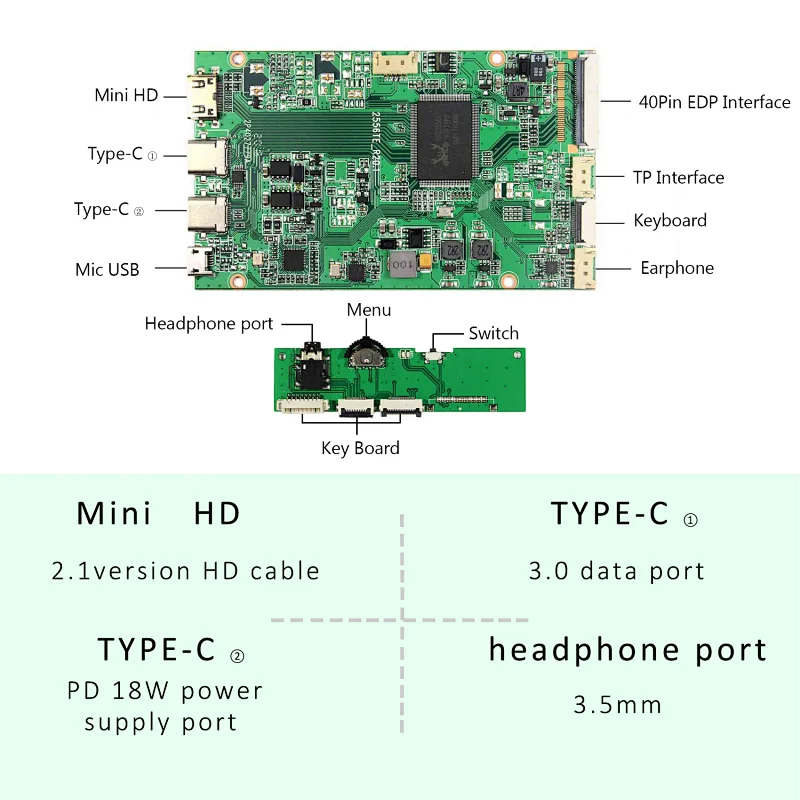

LCD Controller Board:
HD-MI Type C Control Board Work for 40Pin EDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini HD-MI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese

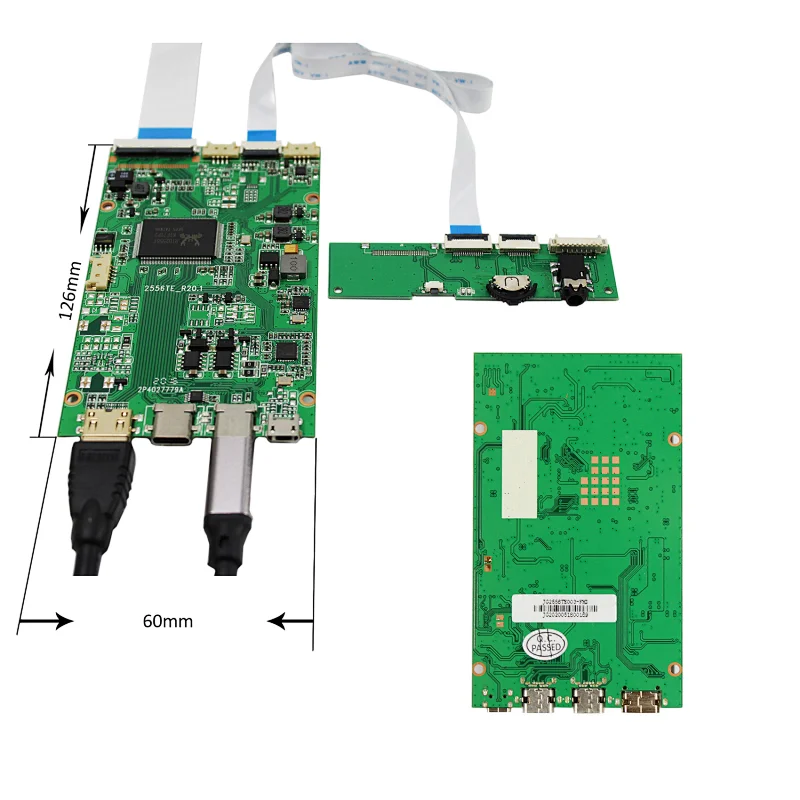

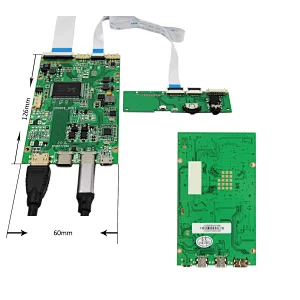

Board Size: 126mm x 60mm x 4mm

15.6"LCD Screen EDP 1920X1080:
Display Mode N, ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 359.5 × 223.8 × 3 (H×V×D)
Display Area 344.16 × 193.59 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

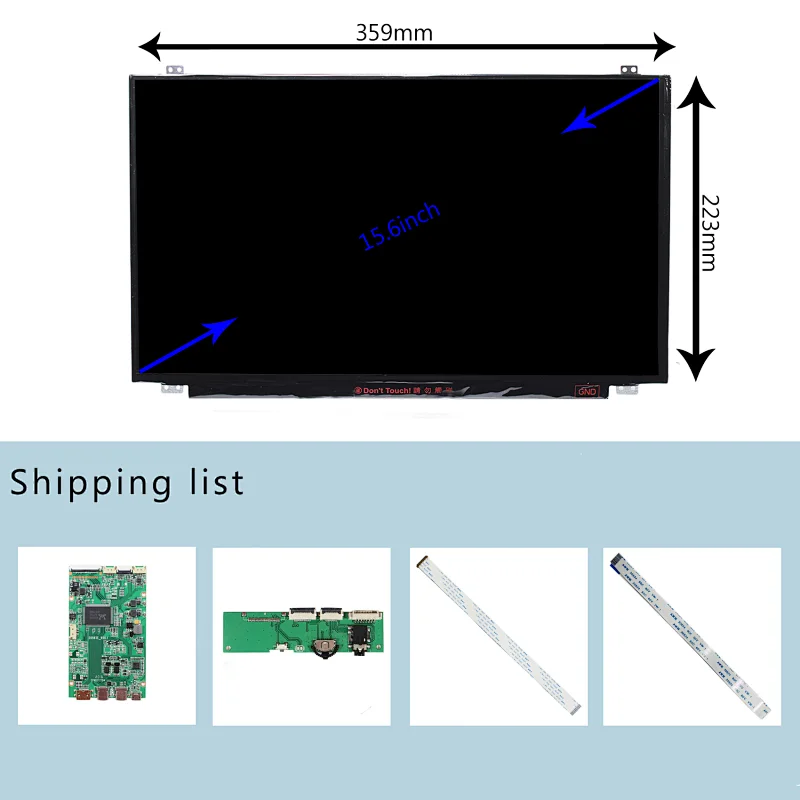

Packing list:
1× HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1× 15.6inch EDP 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
