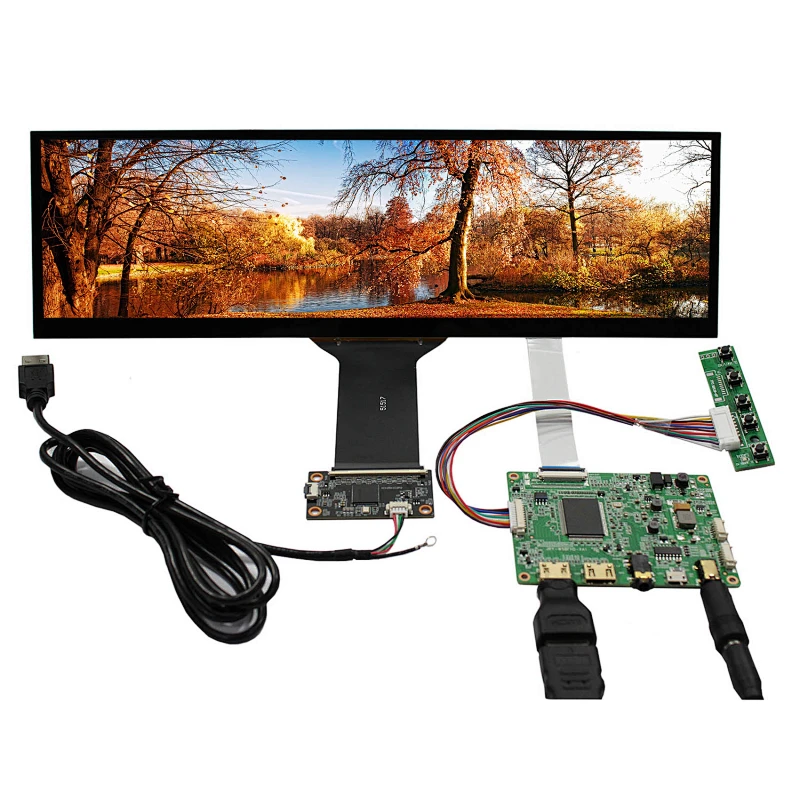

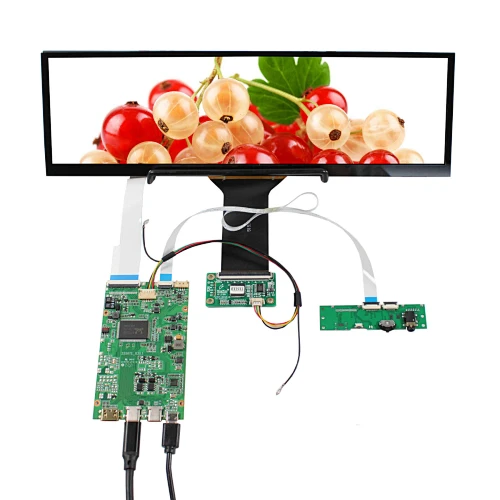

HD-MI Board Work for 30Pin 12.6" NV126B5M-N41 1920X515 EDP LCD Screen 12.6inch tft lcd screen edp 30pin lcd adapter 30pin ad board for lcd screen laptop lcd display 30pin hd mi board work for 30pin edp lcd NV126B5M-N41 1920X515 EDP LCD Screen

Model NO.
K002817 VS-JRYW5BFHD-V1-30pin+NV126B5M-N41 1920X515+TP
Delivery:
EXW or FOB Shenzhen
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:


LCD Controller Board:
HD-MI Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HD-MI Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 82mm x 60mm x 5mm


12.6"NV126B5M-N41 1920X515 LCD Screen:
DisplayNew ModeADS, Normally Black, Transmissive
Resolution 1920RGB)×515
Outline Size 315.61×94.02×5.3(H×V×D)
Display Area 309.31×82.97 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes), Connector,40pins
Backlight  WLED
Input Voltage 3.3V (Typ.)

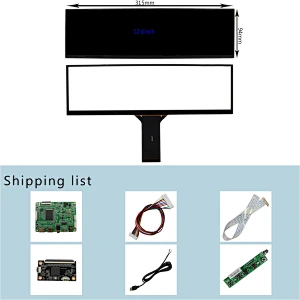

Packing list:
1× 2 HD Mini LCD Controller VS-RTD2556HM-V1
1× 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen to touch screen
1× Signal Cable
1× Keyboard With Cable
