15inch tft lcd with controller board 15" LQ150X1LW94 1024X768 LCD Screen HD-MI.USB Controller Board

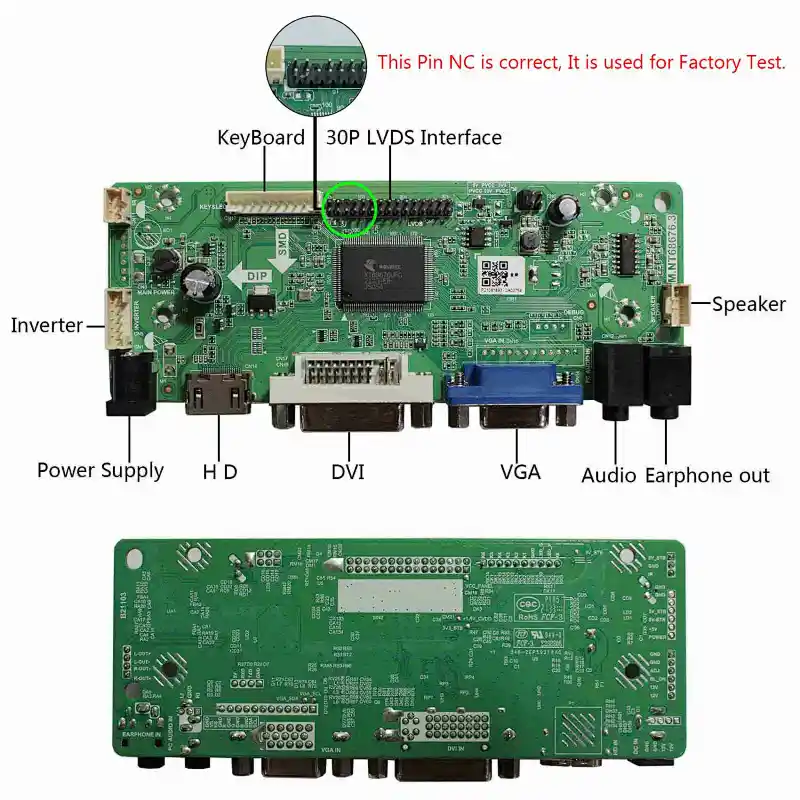

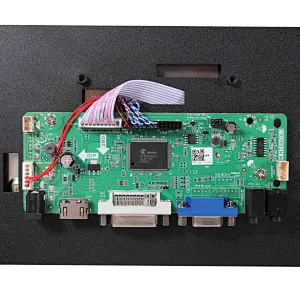

LCD Controller Board:

HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD-MI DVI VGA

Audio Input: HD-MI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 53mm x 17mm

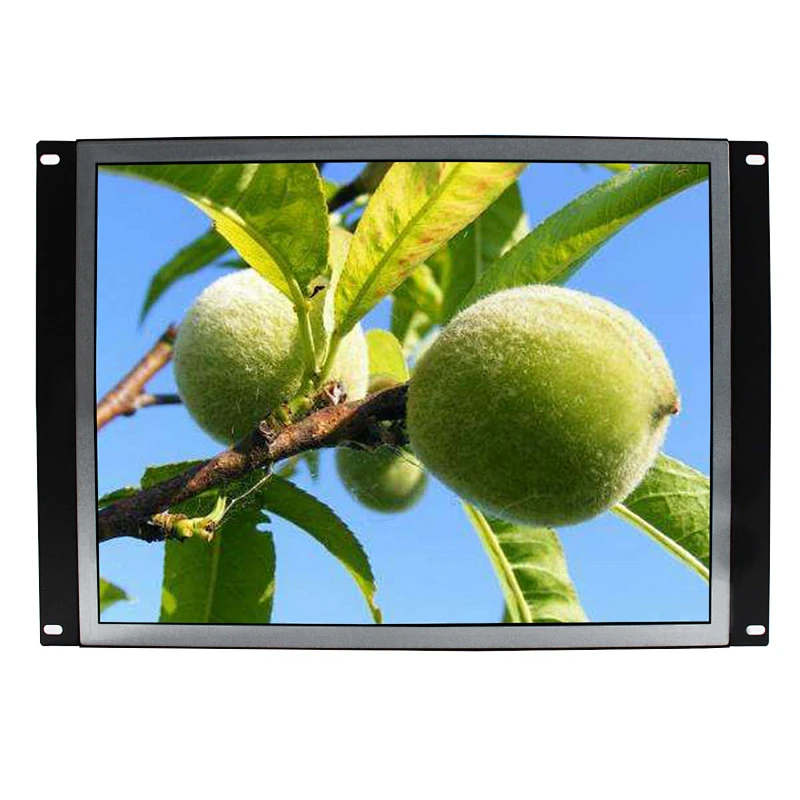

15"LQ150X1LW94 1024X768 LCD Screen:

Display Mode ASV, Normally Black, Transmissive

Resolution 1024（RGB)×768

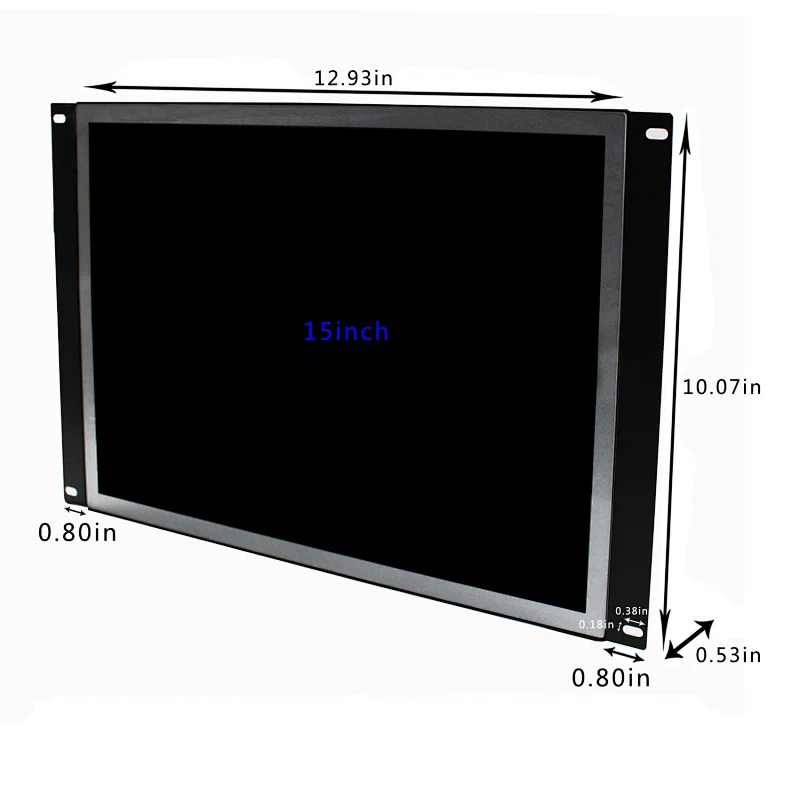

Outline Size 326.5× 253.5×10(H×V×D)

Display Area 304.1 × 228.1 (H×V)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 1500:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list :

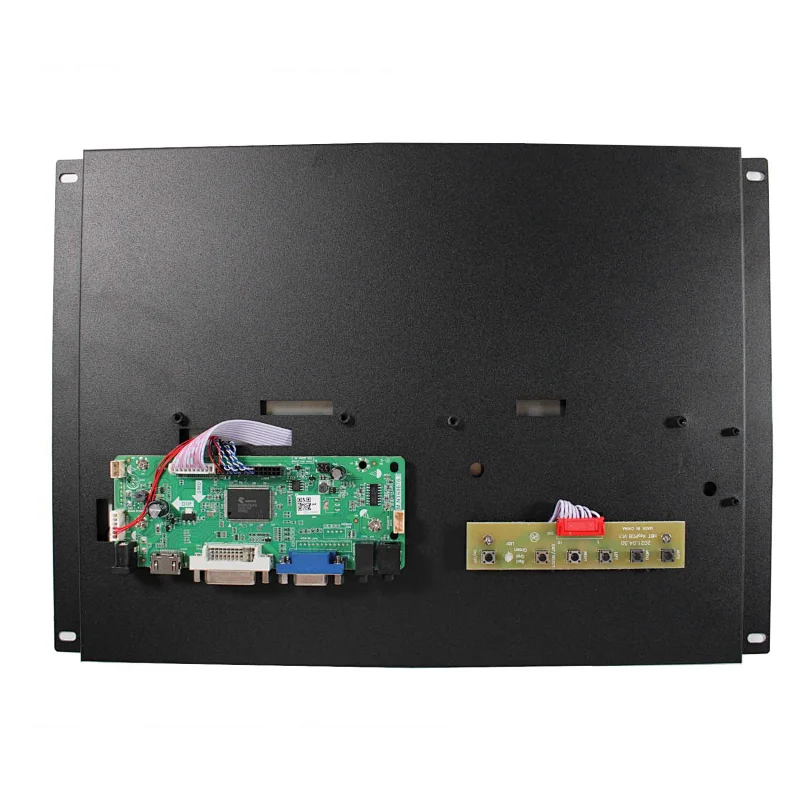

1× 15"1024X768 LCD Screen With HDMI DVI VGA LCD Controller Board
