15.0" G150XGE-1000nits 1024X768 LCD Screen with HD-MI DVI VGA AUDIO LCD Board

LCD Controller Board:

HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD-MI DVI VGA

Audio Input: HD-MI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 53mm x 17mm

15.0"G150XGE-1000 1024X768 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1024（RGB)×768

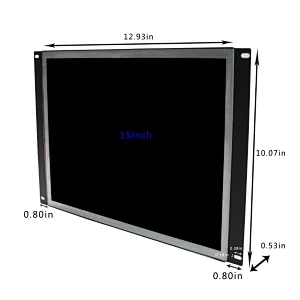

Outline Size 326.5x 253.5 x 12(W x H x D)

Display Area 304.128 x 228.096(W x H)

Brightness 1000 cd/m²(Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 80/80/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list :

1× 15"1024x768 1000nit Brightness LCD Screen With HDMI DVI VGA LCD Controller Board
