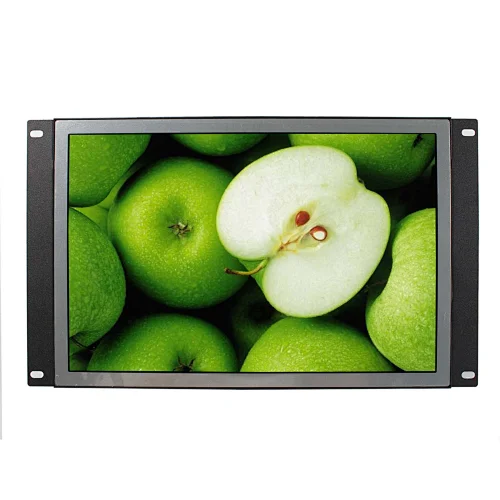

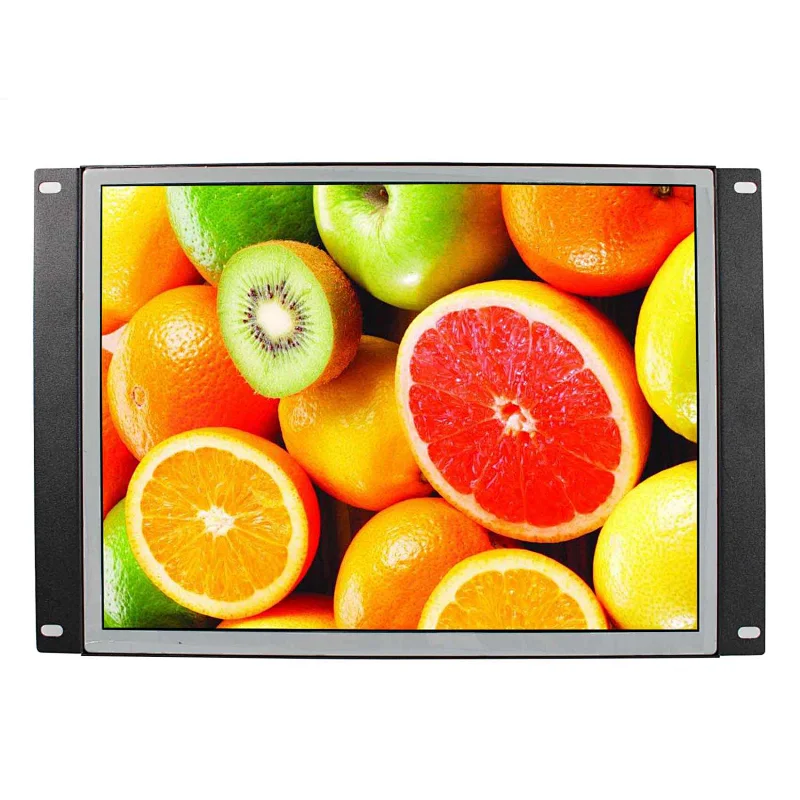

12.1" LQ121S1L75 800X600 LCD Screen with HD-MI DVI VGA AUDIO LCD Board

LCD Controller Board:

HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD-MI DVI VGA

Audio Input: HD-MI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:125mm x 53mm x 17mm

12.1"LQ121S1L75 800X600 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 800（RGB)×600

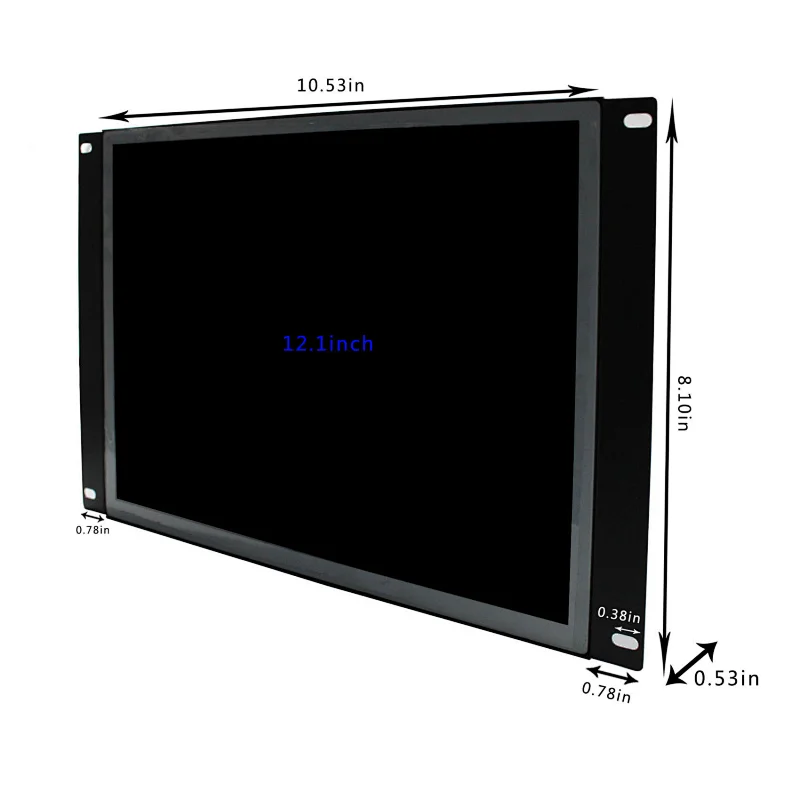

Outline Size 265× 205×10 (H×V×D)

Display Area 246 × 184.5 (H×V)

Brightness 330 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list :

1× 12.1"800x600 LCD Screen With HDMI DVI VGA LCD Controller Board
