HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface 12.1" AA121TD02-1000 1280X800 LCD ScreenLCD Screen

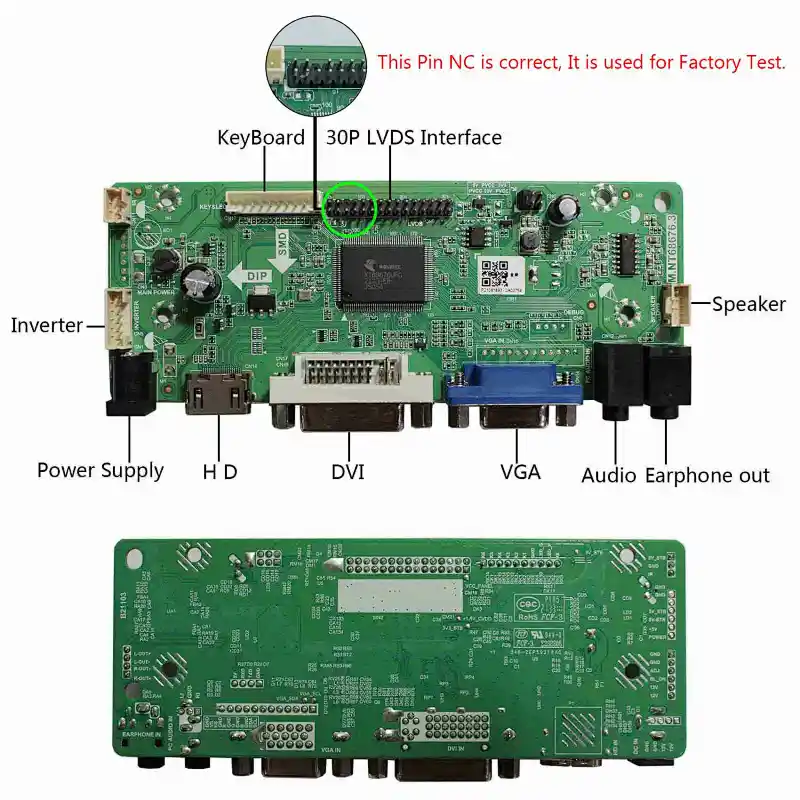

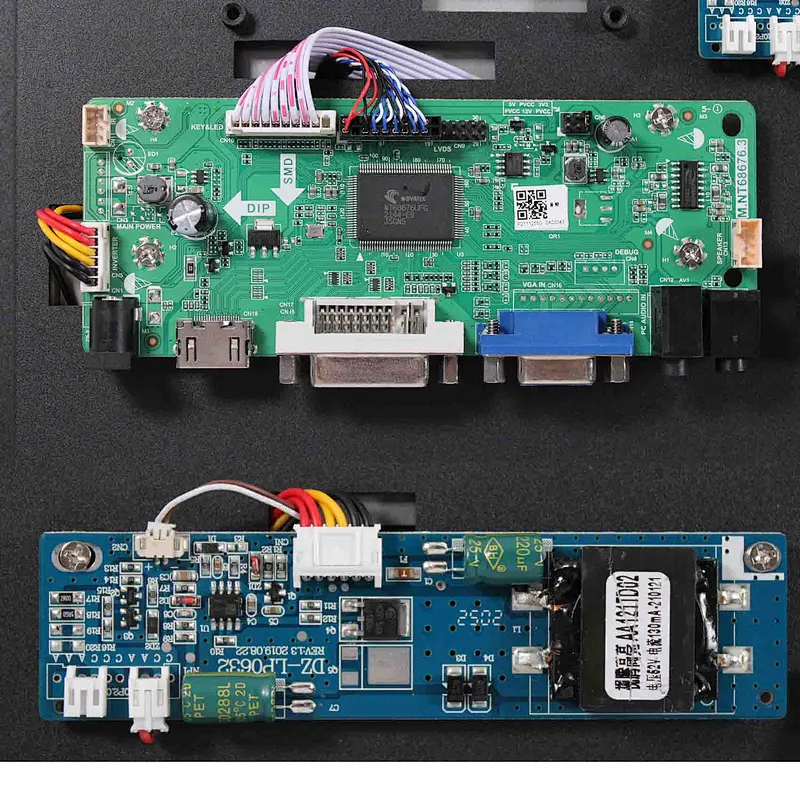

LCD Controller Board:

HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI DVI VGA

Audio Input: HDMI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 53mm x 17mm

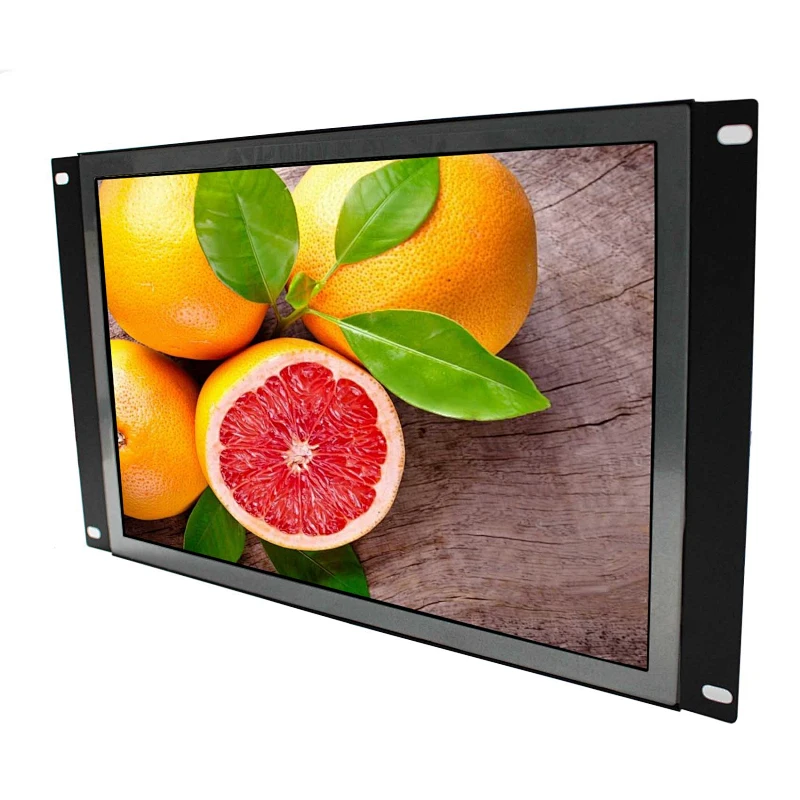

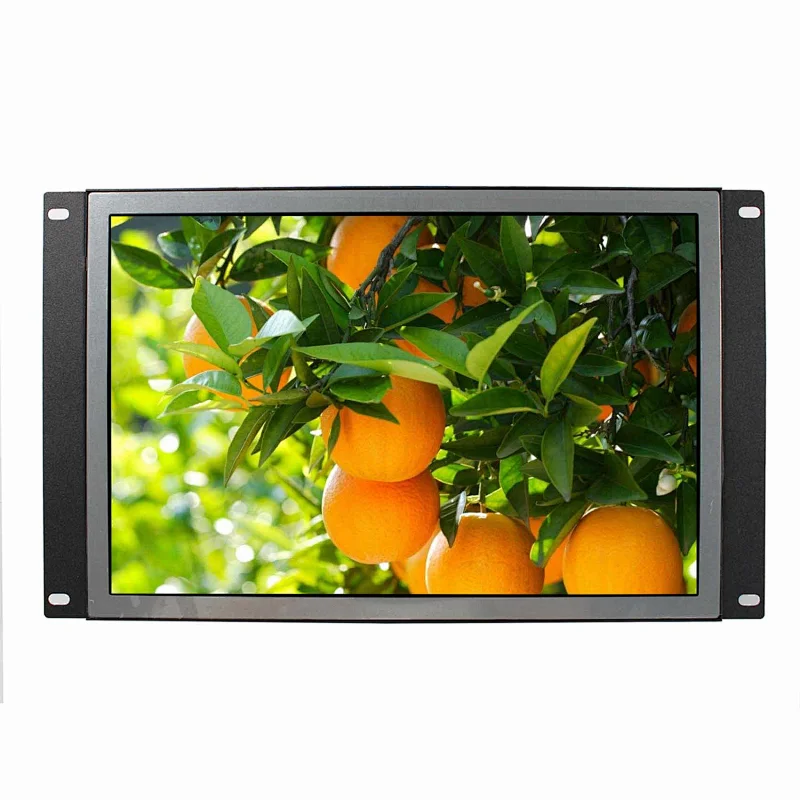

12.1"AA121TD02-1000 1280X800 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1280RGB)×800

Outline Size 283× 185.1×10(H×V×D)

Display Area 216.12 × 163.2 (H×V)

Brightness 1000 cd/m²(Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list :

1× 12.1"1280x800 1000nit Brightness LCD Screen With HDMI DVI VGA LCD Controller Board
