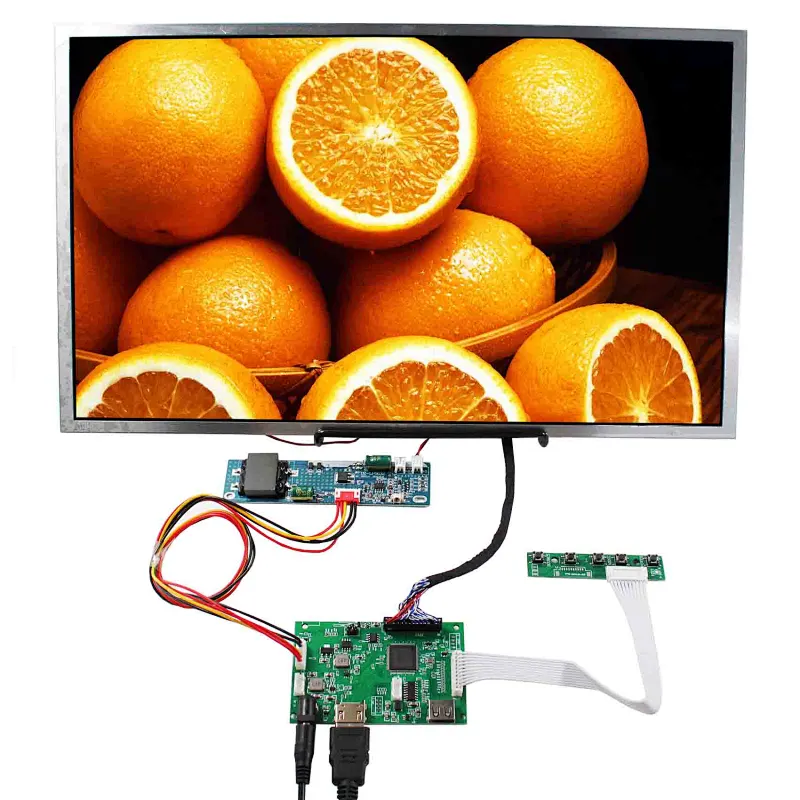

HDMI.USB LCD Board for 30Pin LVDS TFT LCD 17.3" VS173GF-1000nits 1920X1080(G173HW01.V0) tft lcd screen

 LCD Controller Board:

HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 5A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel： 3.3V 5V 12V (Jumper optional)

Video Input: HD-MI USB

HD-MI: Support HD-MI 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

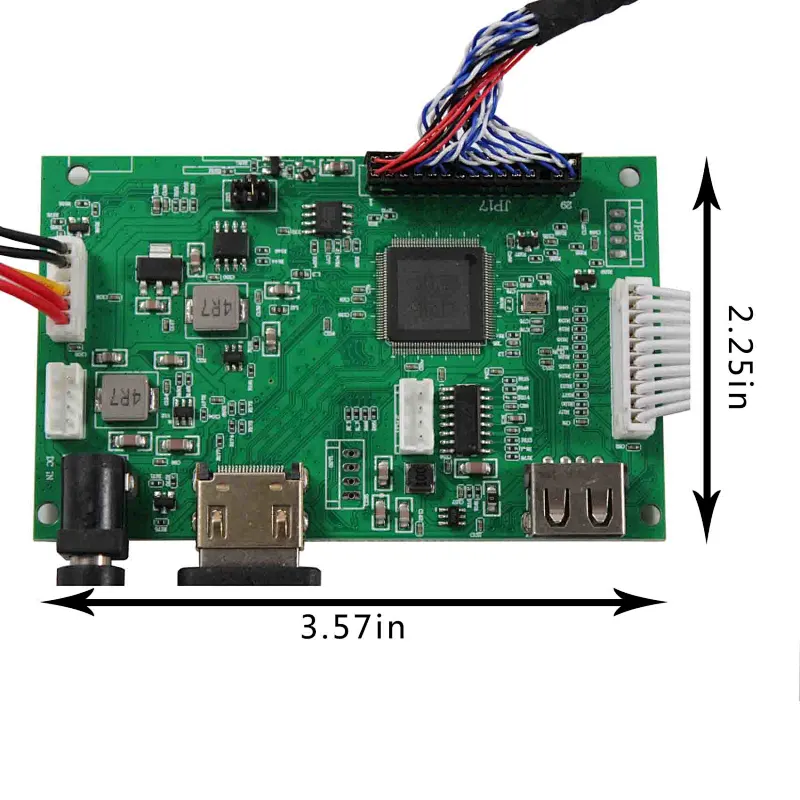

Board Size: 90.7mm x 57.3mm x 14mm

17.3"VG173GF -1000 1920x1080 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1920X（RGB)×1080

Outline Size 403×240×13 mm (H×V×D)

Display Area 381.888× 214.812 mm (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 80/80/609/80 (Typ.)(CR≥10

Signal Interface Parallel LVDS (2ch, 8-bit) ,30 pins ,

Backlight WLED

Input Voltage 5V (Typ.)

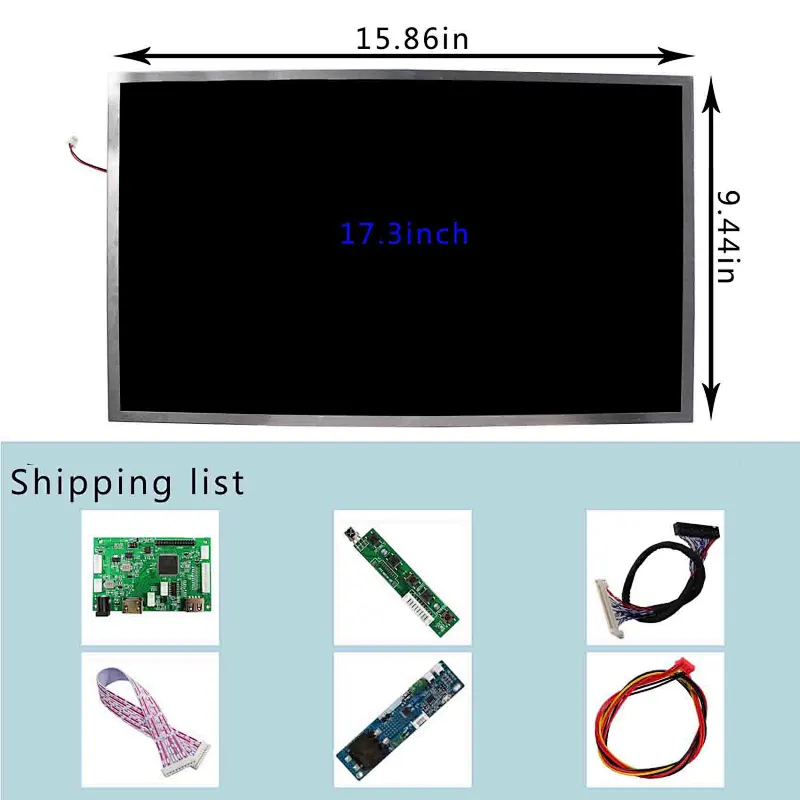

Packing list:

1× HD-MI USB LCD Board for 30Pin VS-TY2660HU-823

1× 17.3inch VS173GF -1000 1920x1080 LCD Screen

1× Inverter Board

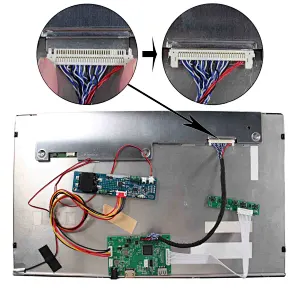

1× LVDS Cable

1× Keyboard With Cable
