HDMI VGA DVI Controller board with 18.5" tft lcd panel VS185DF-1000nits 1366x768(MV185WHB-N20)

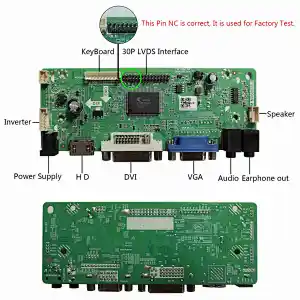

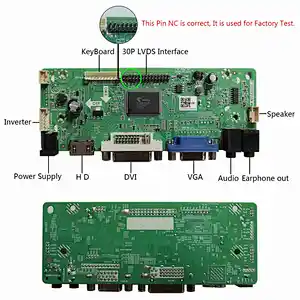

 LCD Controller Board:

HD DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD DVI VGA

Audio Input: HD

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 53mm x 17mm

18.5"VS185DF-1000 1366x768 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1366X(RGB)×768

Outline Size 430.4×254.6×10.8mm (H×V×D)

Display Area 409.8× 230.4 mm (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 85/85/809/80 (Typ.)(CR≥10

Signal Interface Parallel LVDS (1 ch, 8-bit) ,30 pins ,

Backlight WLED

Input Voltage 5V (Typ.)

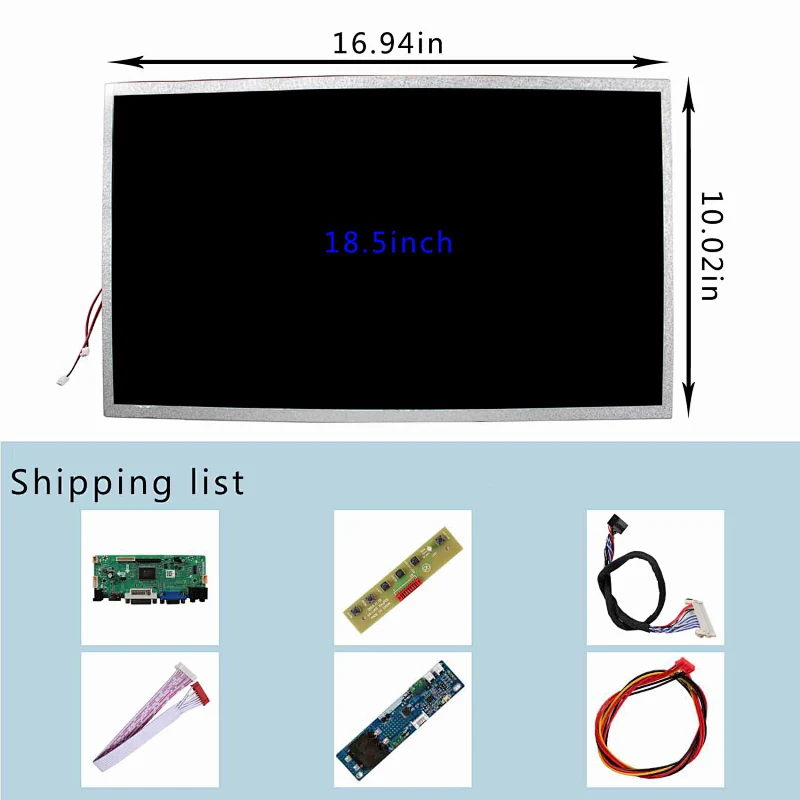

Packing list:

1× HD VGA DVI LCD Controller Board M.NT68676

1× 18.5inch VS185DF-1000 1366x768 LCD Screen

1× Inverter Board

1× LVDS Cable

1× Keyboard With Cable
