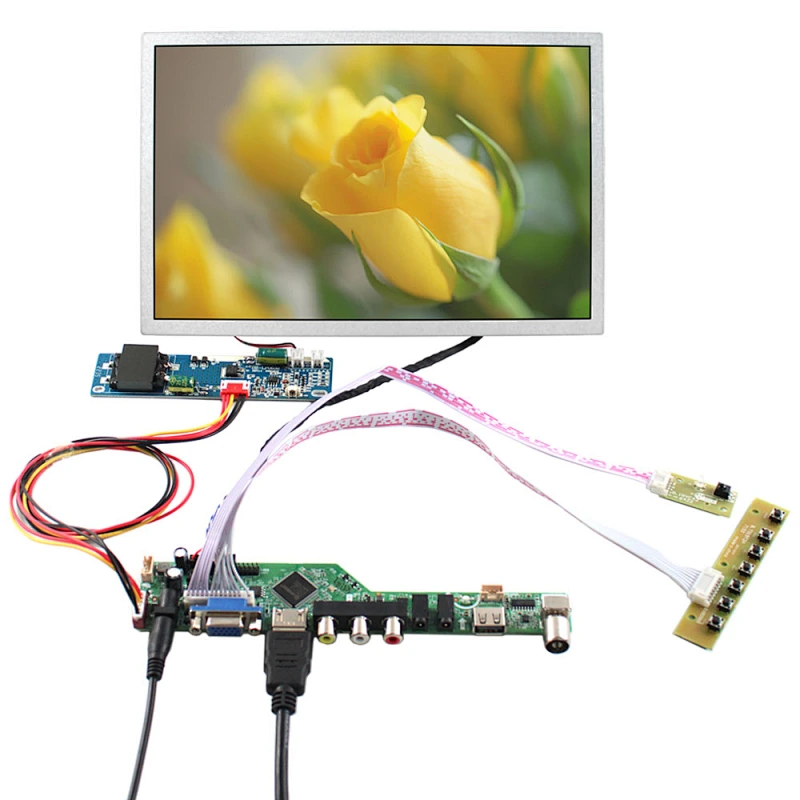

HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen 10.1" 1280x800 lcd display module

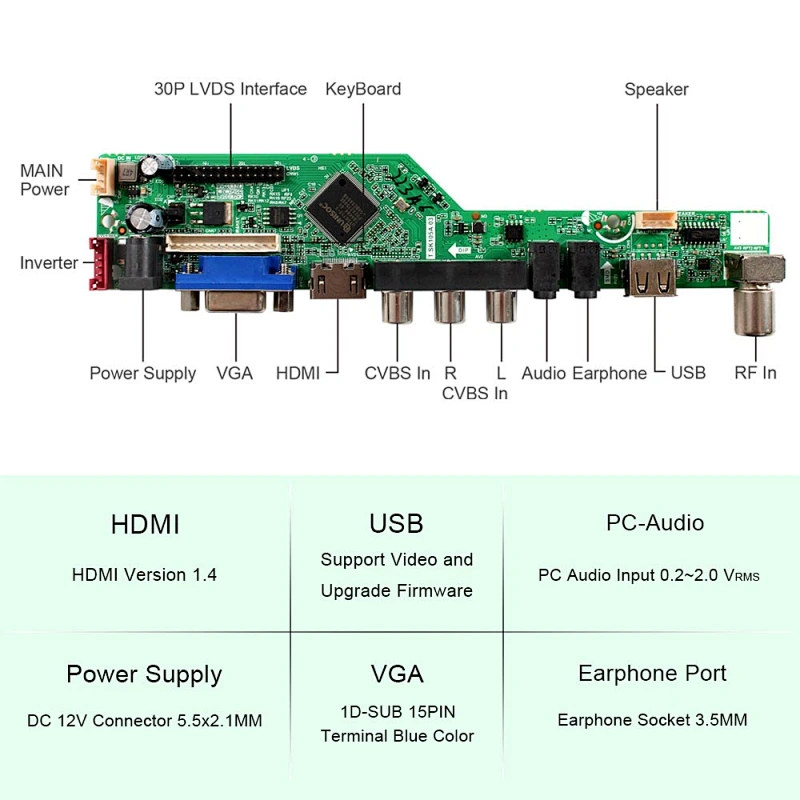

 LCD Controller Board:

HD VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2

USB Support Video

AV Compatible With PAL

Video Input: HD VGA AV USB RF

Audio Input: HDMI PC-Audio

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

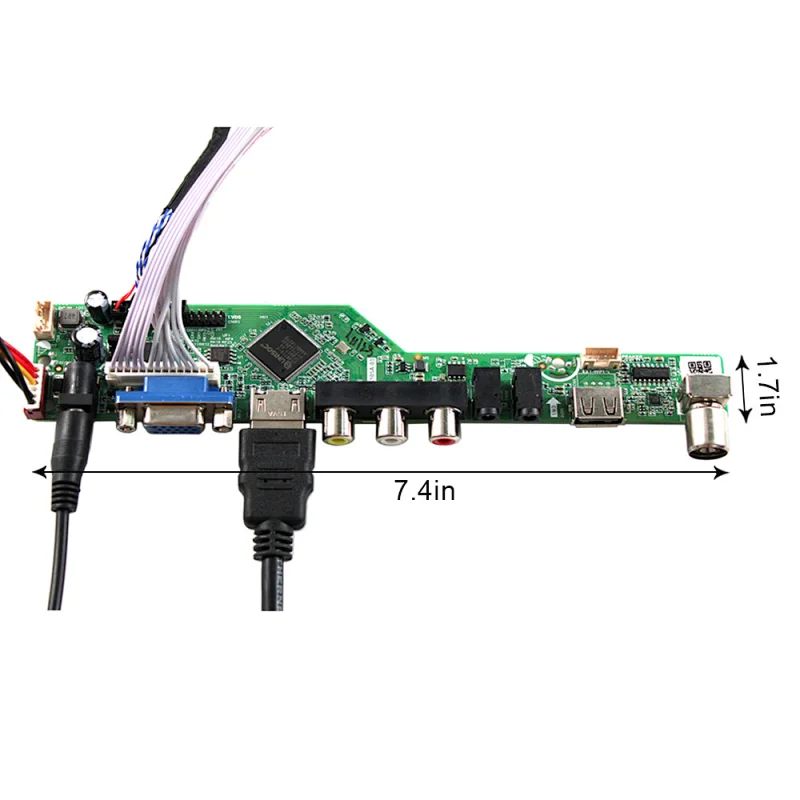

Board Size:188mm x 43mm x 17mm

10.1"EV101WXM-1000 1280X800 LCD Screen::

Display Mode TN, Normally White, Transmissive

Resolution 1280(RGB)×800

Outline Size 233.2 × 152.9×10.4 (H×V×D)

Active Area 216.96× 135.6(H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 900:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel LVDS (1 ch, 8-bit) , 20 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

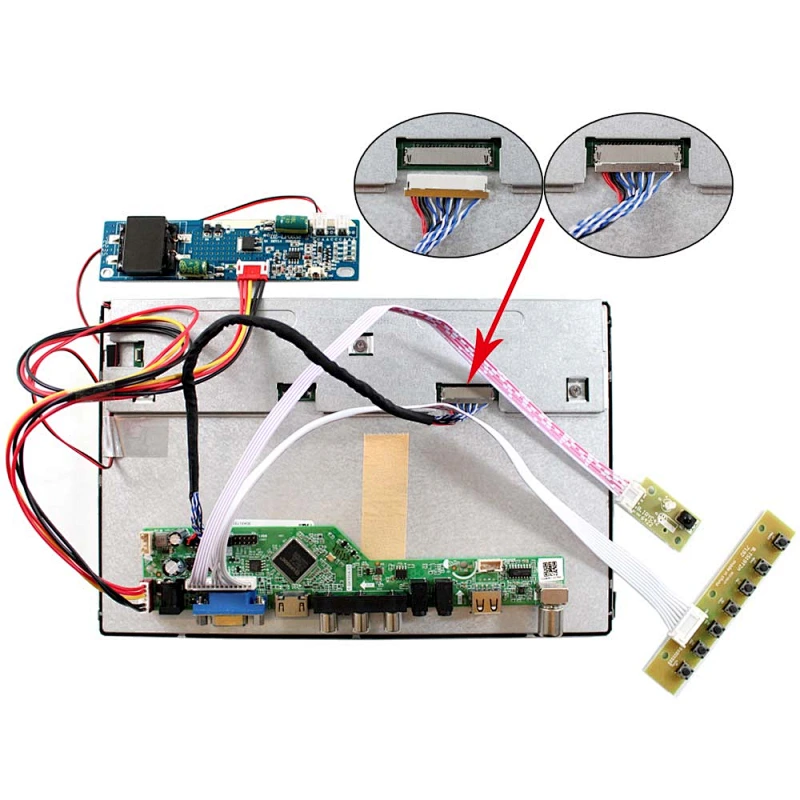

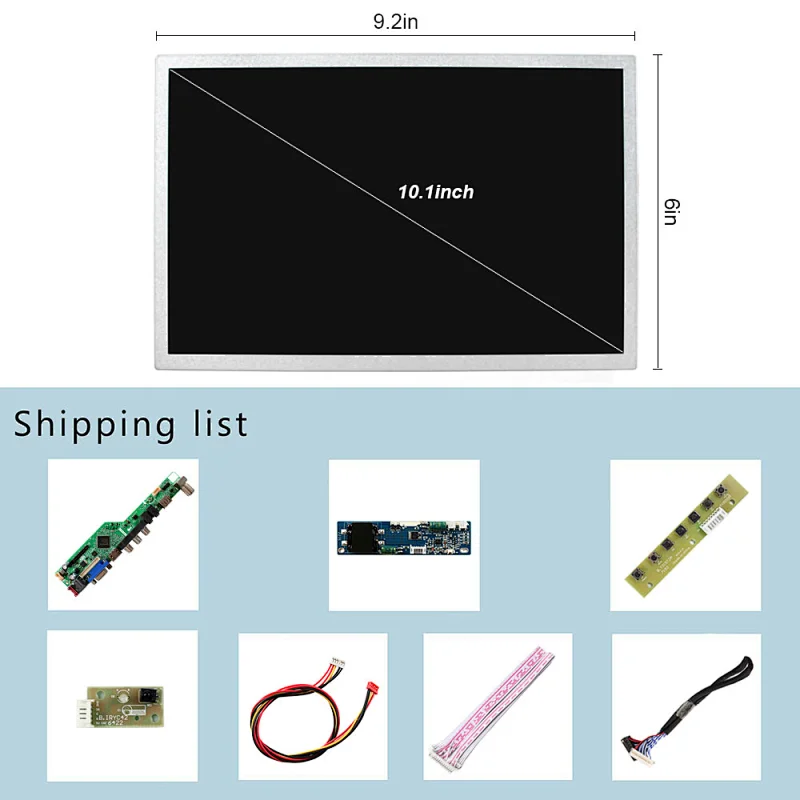

Packing list:

1× HD VGA AV USB RF LCD Controller Board T.SK105A.03

1x 10.1inch 1280x800 1000dc LCD Screen

1× Inverter Board

1× Converter Board

1× Keyboard With Cable
