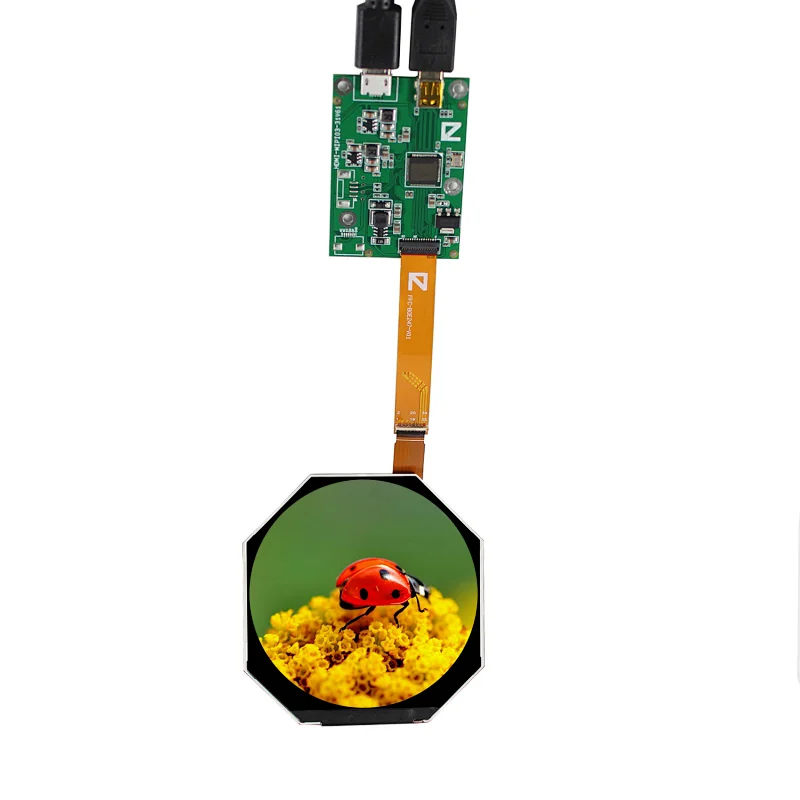

2.5inch VS025Z6M round LCD Screen to Micro HD Board hd lcd board hd lcd tv board hd lcd control board hd lcd screen round lcd screen 2.5inch lcd screen

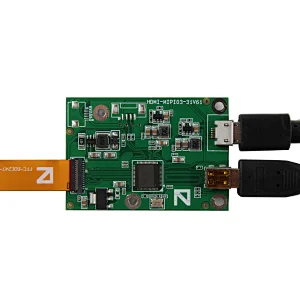

LCD Controller Board:

Micro HD Board Work for 30Pin Mipi LCD Screen

Input Power Adapter: 5Vdc More than 0.3A.

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Audio Input: Micro HD

Board Size: 50mm x 35mm x 5mm

2.5"VS025Z6M  480X480 LCD Screen:

DisplayNew Mode2, Normally Black, Transmissive

Resolution 480RGB)×480

Outline Size 69.19×71.74×3.9(H×V×D)

Display Area 62.64× 62.64(H×V)

Brightness 400 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface MIPI, 30 pins ,FPC

Backlight  WLED

Input Voltage 1.8/3.3 V (Typ.)

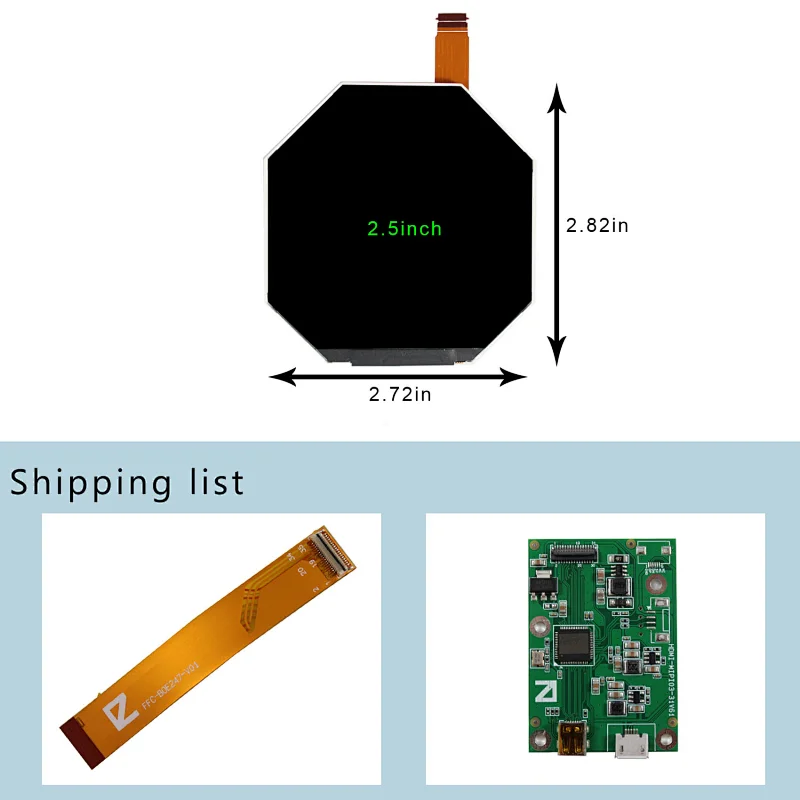

Packing list :

1× 2.5inch VS025Z6M LCD Screen to Micro HD Board
