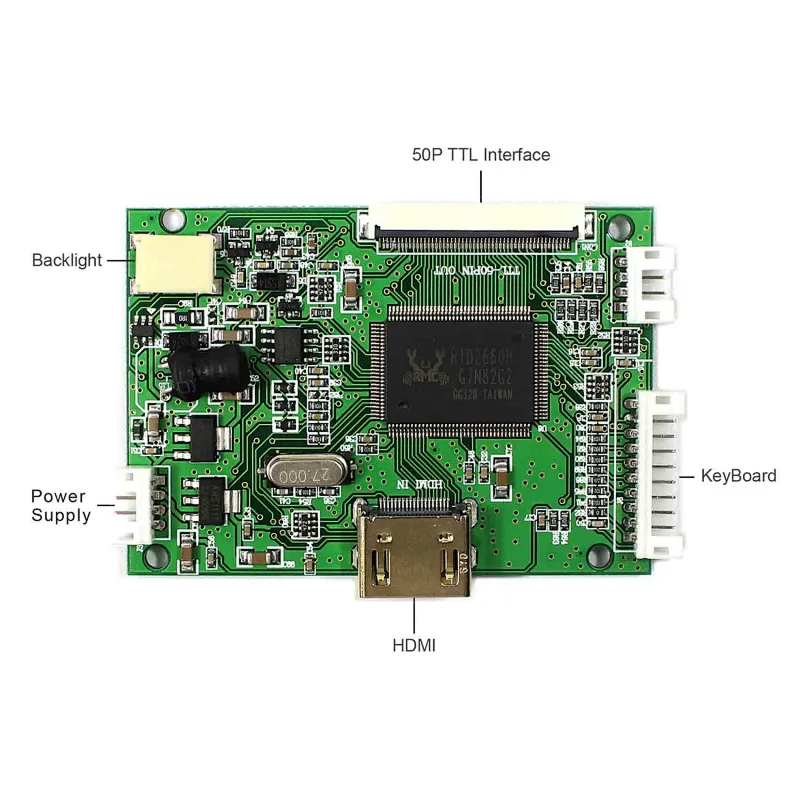

LCD Controller Board:

HDMI LCD Board Work for 50Pin TTL LCD Screen

Input Power Adapter:5Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:70mm x 50mm x 8mm

4.3"VS043IPS-V1 480X272 LCD Screen:

Display Mode  IPS, Normally White, Transmissive

Resolution 480RGB)×272

Outline Size 105.5 × 67.2×3.1 (H×V×D)

Display Area 95.04 × 53.86 (H×V)

Brightness 500 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC

Backlight  WLED

Input Voltage  3.3V (Typ.)

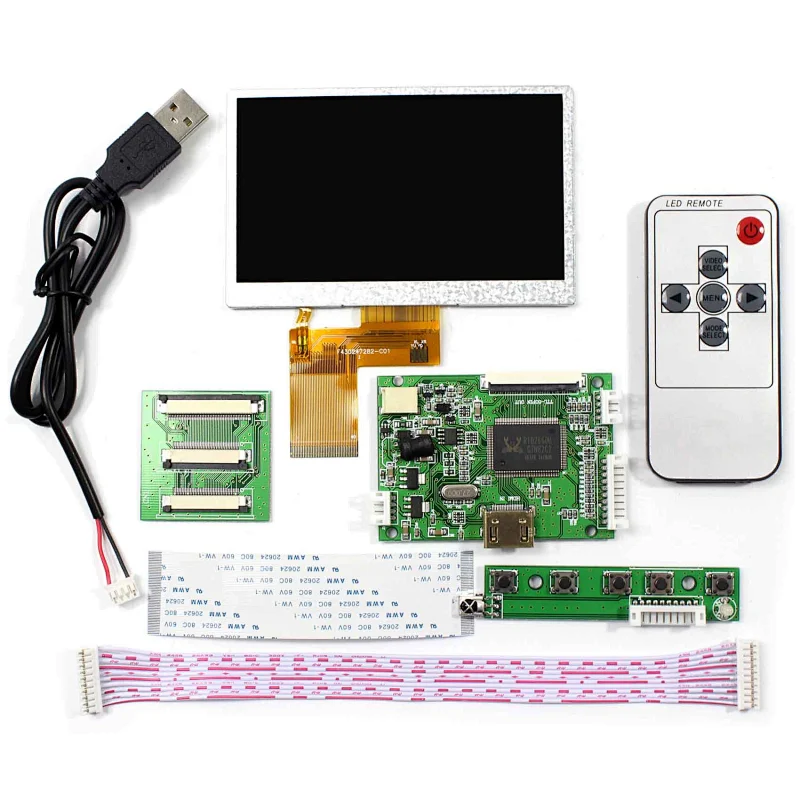

Packing list :

1× HDMI LCD Controller Board VS-TY50-V2

1× 4.3inch VS043IPS-V1 480X272 LCD Screen

1× 50Pin To 40Pin Converter Board

1× Power Supply Cable

1× Keyboard With Cable

1× Remote Control(Battery Not included)
