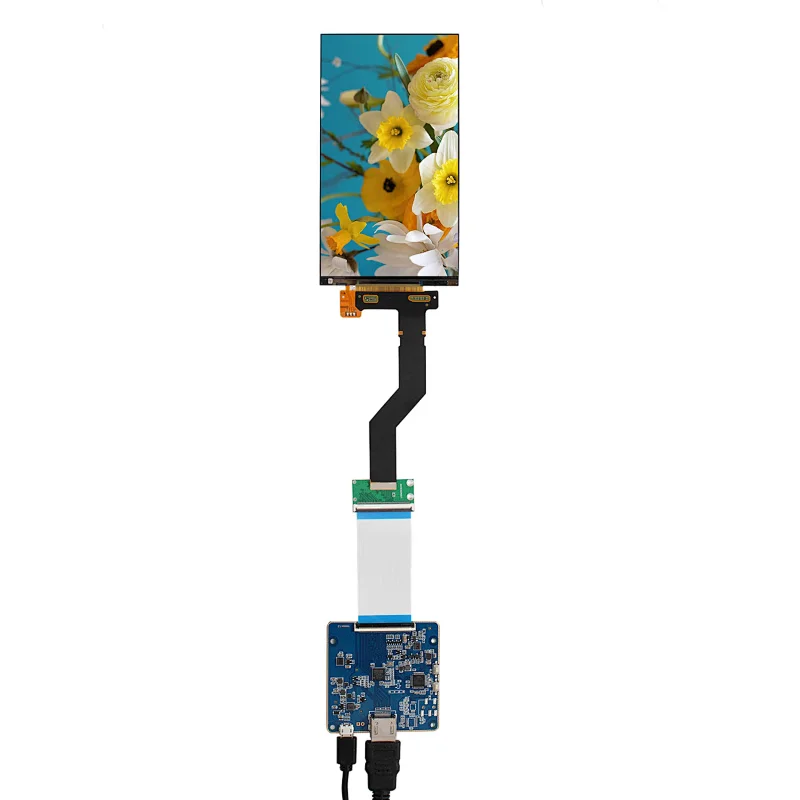

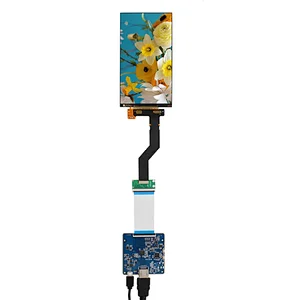

6.0" LS060R1SX02 1440X2560 50pin MIPI LCD Screen with HDMI Control Board 50pin mipi lcd screen hdmi lcd board lcd controller board hdmi lcd tv board hdmi hdmi lcd controller board LS060R1SX02 6.0" MIPI LCD Screen

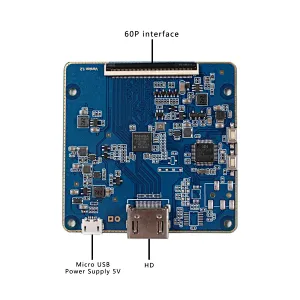

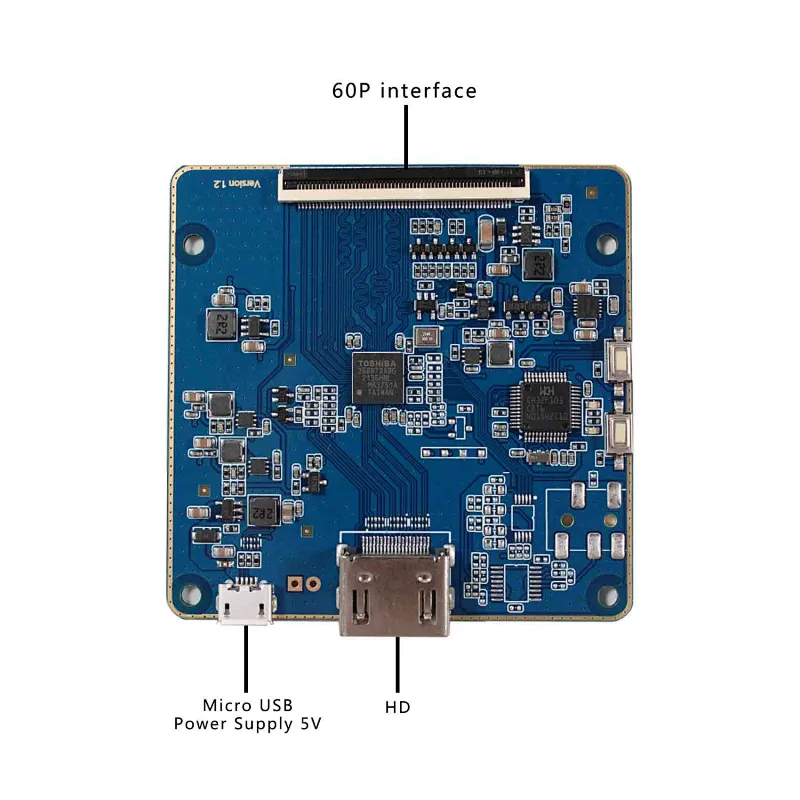

LCD Controller Board:

HDMI Board Work for 50Pin Mipi LCD Screen

Input Power Adapter: 5Vdc More than 1A.

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Audio Input: HDMI

Board Size: 65mm x 64mm x 3mm

6.0"LS060R1SX02 1440X2560 LCD Screen:

DisplayNew Mode2, Normally Black, Transmissive

Resolution 1440(RGB)×2560

Outline Size 76.92 ×140.13×1.35(H×V×D)

Display Area 74.52× 132.48 (H×V)

Brightness 450 cd/m² (Typ.)

Contrast Ratio 1300:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface MIPI (2 ch, 4 data lanes) , 50 pins , Connector

Backlight WLED

Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

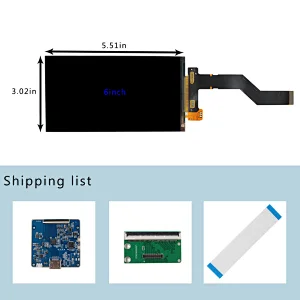

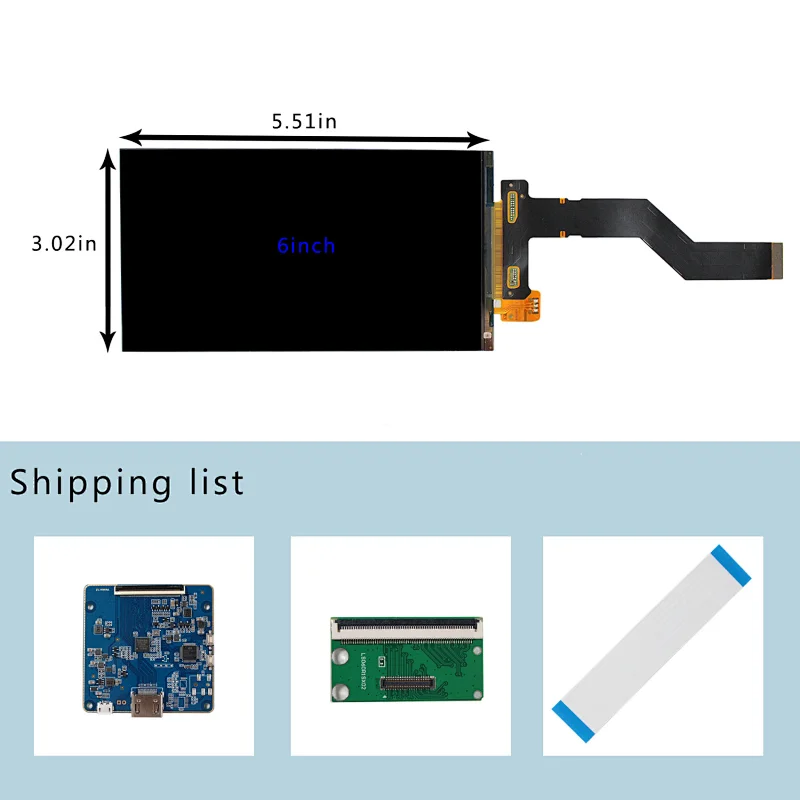

Packing list :

1× HDMI To Mipi LCD Controller Board VS-HDMITMIPI-V1 60Hz

1× 6.0inch LS060R1SX02 1440X2560 LCD Screen

1× Signal Cable

1× Converter Board

Instruction:

1. When HDMI signal is not accept. It shows black Image and LED flashing on main board. Please change HDMI source for test.

2. When HDMI accept. It shows correct image and LED is blue.

This Board work with PC and Raspberry Pi. The image not support Scaling. It shows image depend on HDMI input source.

Turn On：

a、Connect Converter Board With LCD Screen Interface

b、Connect Converter Board With 60Pin Cable

c、Connect Main Board With 60Pin Cable

d、Insert HDMI Type Cable

e、Turn On 5Vdc or USB as Power Supply

Turn Off：

a、Turn Off 5Vdc or Remove USB Power Adapter

b、Remove HDMI Cable

c、Disconnect Main Board With 60Pin Cable

d、Disconnect Converter Board With 60Pin Cable

e、Disconnect 60Pin Cable With LCD Screen

For PC:

1. Most of MIPI screen for vertical display.Need to adjust computer graphics mode.

2. Replication Mode - Extended mode - Vertical and Horizontal adjustment.

For Raspberry Pi

1. The Main Board Four Locating Holes Compatible With Raspberry Pi.

2. Different Raspberry Pi are set differently. Please connect with Raspberry Pi Technical support.
