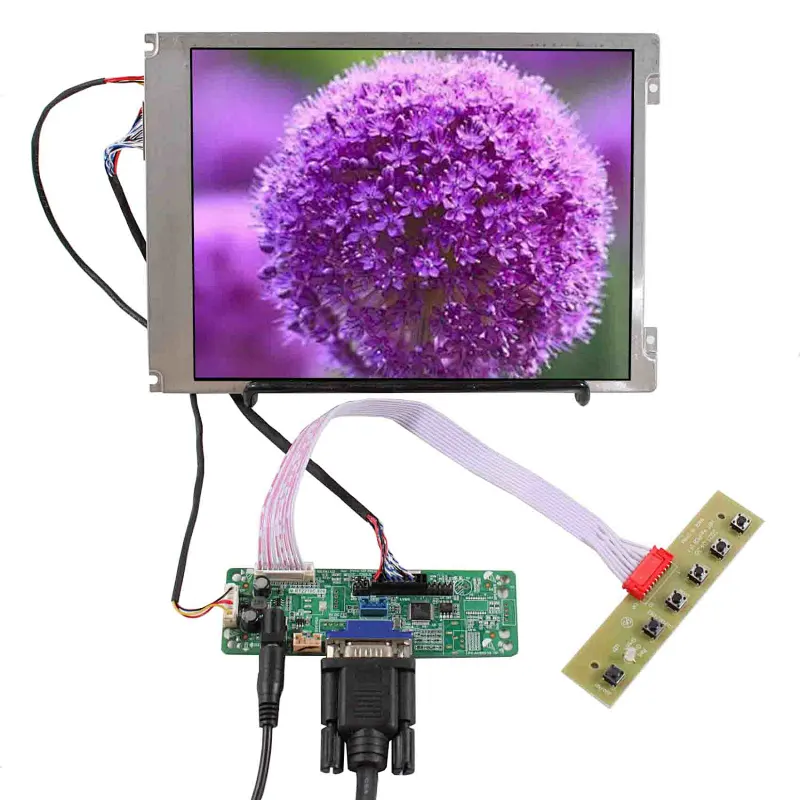

8.4" G084SN05 V9 800x600 LVDS LCD Screen with VGA Controller board lcd screen lvds g084sn05 lvds lcd controller board vga lvds controller 8.4" lvds lcd screen

Model NO.
K003071 RT2270C-806+8.4寸 G084SN05 V.9 800x600
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
FOB SHENZHEN
Stock Time:
3-7 Days
Quantity:

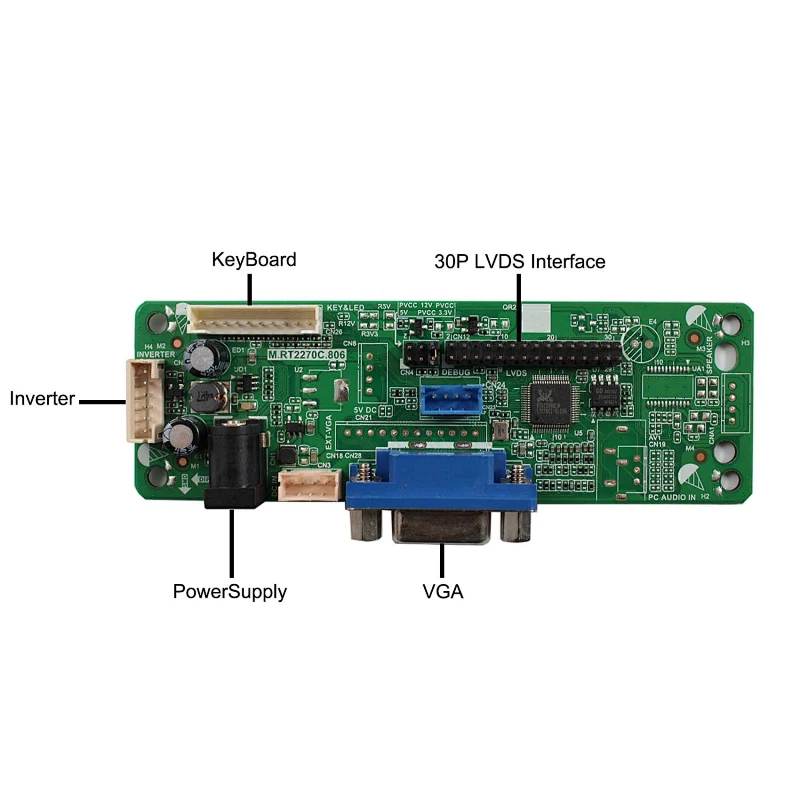

  • LCD Controller Board:

    VGA LCD Board Work for LVDS Interface LCD Screen

    Input Power Adapter: 12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <1W

    Video Input: VGA

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

    Board Size: 107mm x 37mm x 18mm

  • 8.4"G084SN05 V9 800x600 LCD Screen:

  • Display Mode IPS, Normally Black, Transmissive

    Resolution 1280(RGB)×800

    Outline Size 203× 142.5×8mm (H×V×D)

    Display Area 170.4×127.8mm (H×V)

    Brightness 450 cd/m² (Typ.)

    Contrast Ratio 600:1 (Typ.) (TM)

    Viewing Angle 80/80/80/60 (Typ.) (CR≥10) [Left / Right / Up / Down]

    Signal Interface LVDS (1ch 6bit) 20Pin

    Backlight WLED

    Input Voltage 3.3V (Typ.)

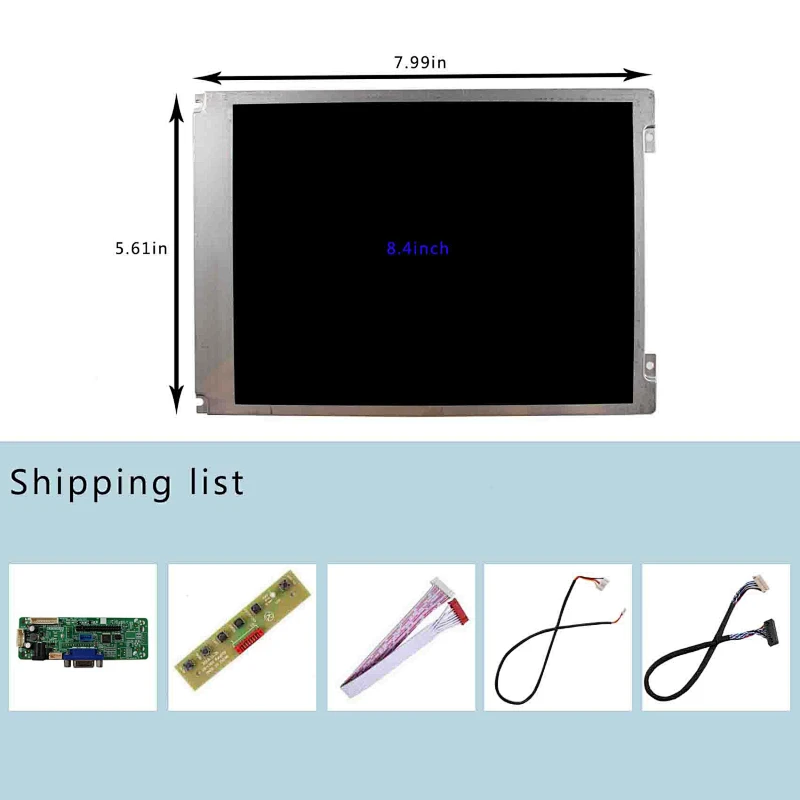

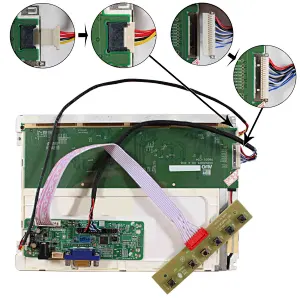

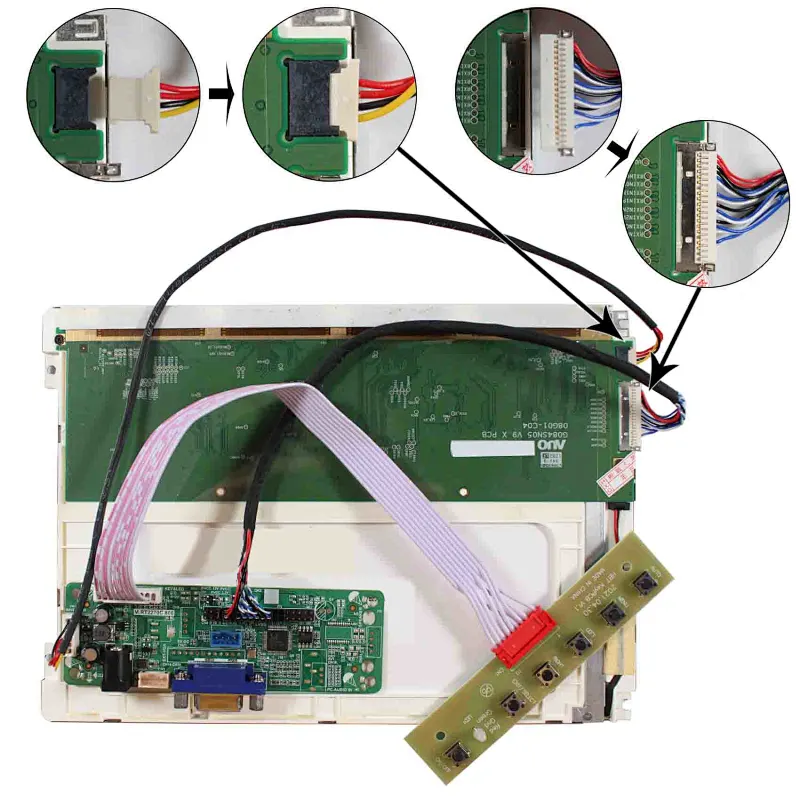

  • Packing list :

  • 1× VGA LCD Controller Board RT2270C-806

    1× 8.4"G084SN05 800x600 LCD Screen

    1× LVDS Cable

    1× Keyboard With Cable
