10.4" G104SN03 800X600 LCD Screen with HDMI VGA Controller Board lcd controller board hdmi 800x600 lcd hdmi 800x600 vga g104sn03

HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:91mm x 66mm x 12mm

DisplayModeTN, Normally White, Transmissive

Resolution 800RGB)×600

Outline Size 236 × 174.3×4.9 (H×V×D)

Display Area 211.2 × 158.4 (H×V)

Brightness 500 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector

Backlight  WLED

Input Voltage  3.3V (Typ.)

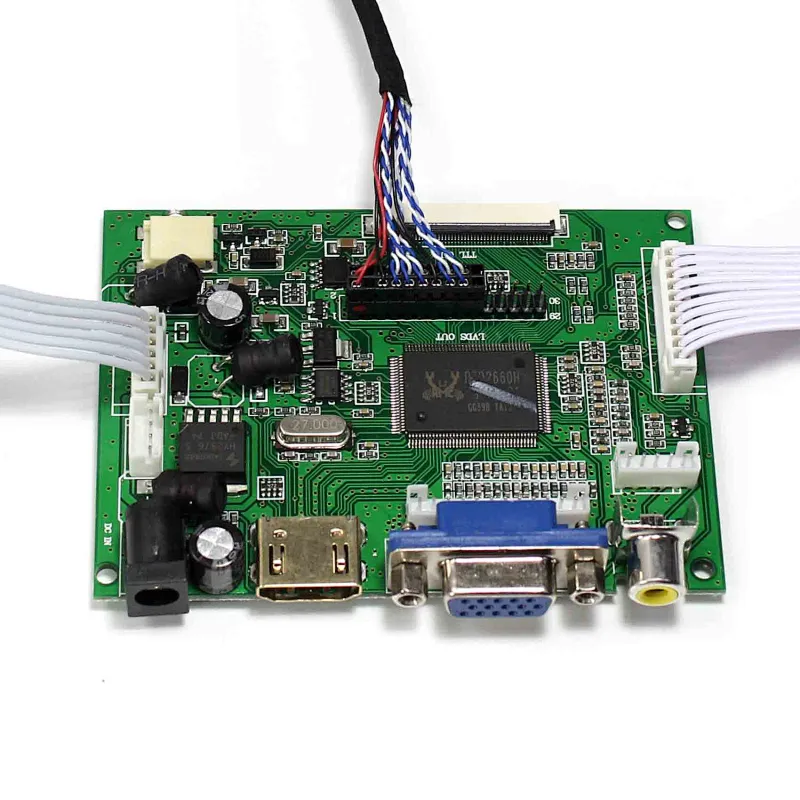

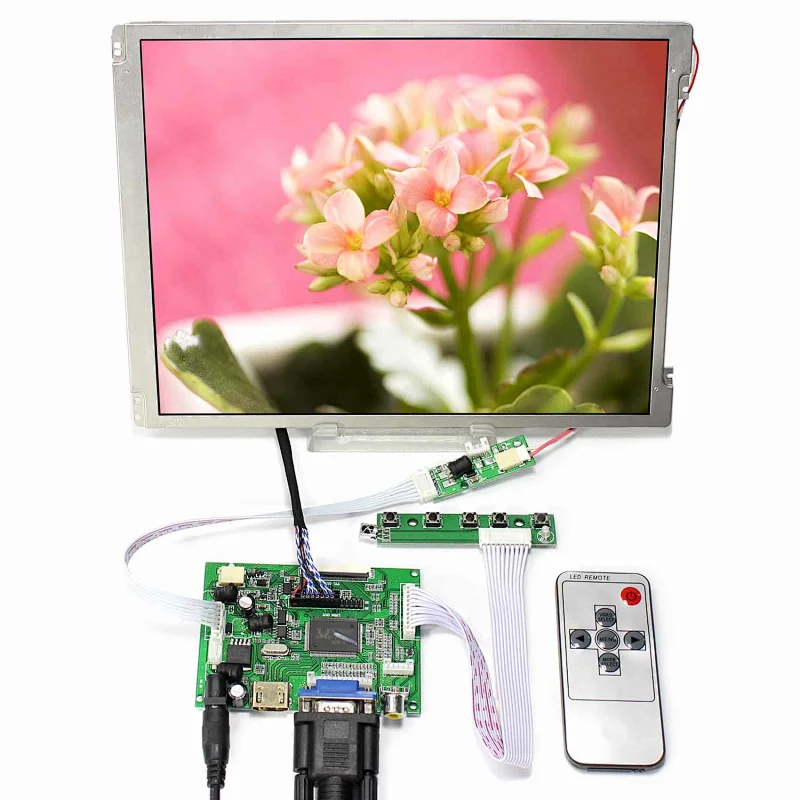

1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1

1× 10.4inch VS104T-001A 800X600 LCD Screen

1× Converter Board

1× LVDS Cable

1× Keyboard With Cable

1× Remote Control(Battery Not included)
