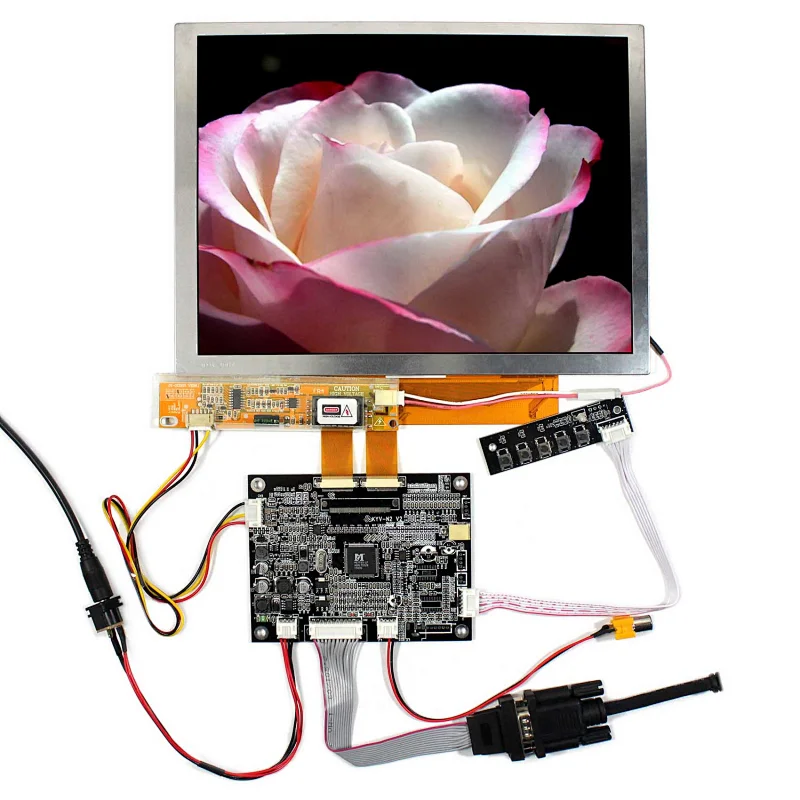

10.4" LB104S02-TD01 800X600 60pin TTL LCD Screen with VGA Driver Board 800x600 ttl 800x600 driver vga ttl driver 800x600 vga 800x600 driver LB104S02 ttl lcd screen 60pin TTL LCD Screen

Model NO.
K000549 KYV-N2 V2+LB104S02-TD01 800x600
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

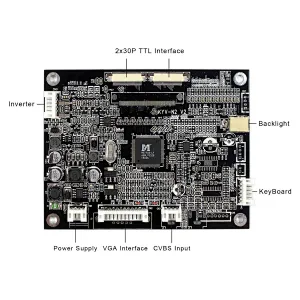

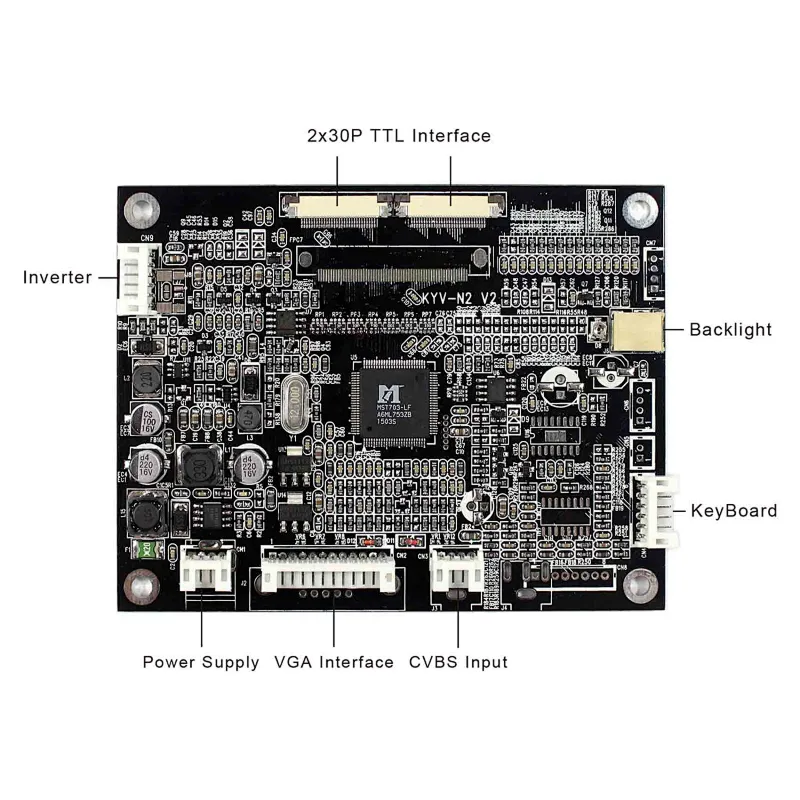

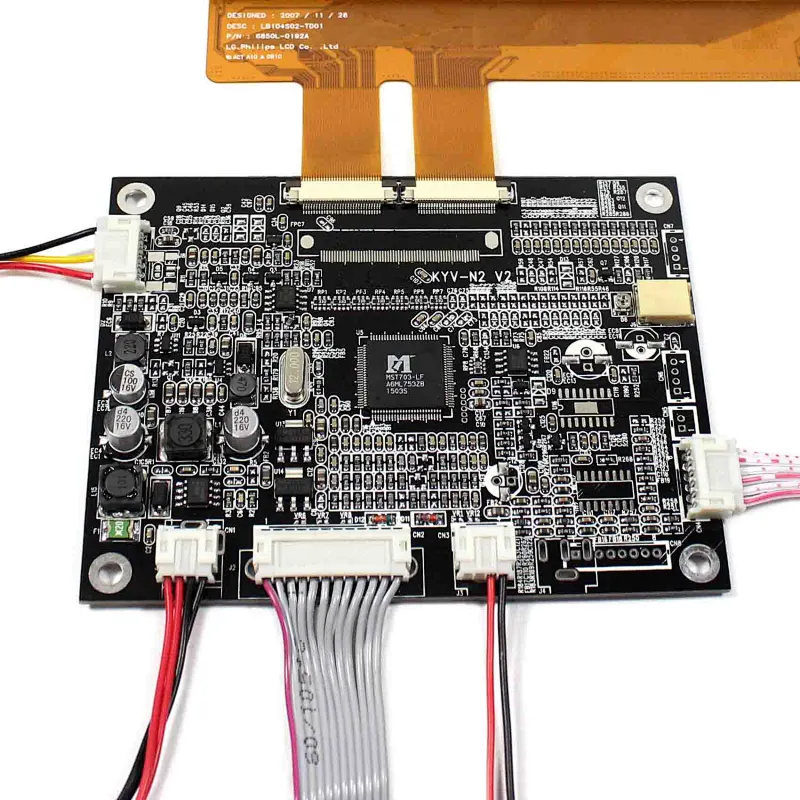

  • LCD Controller Board:

    VGA AV LCD Board Work for 60Pin TTL LCD Screen

    Input Power Adapter:12Vdc More than 1A.

    Come In Standby Model When Not Input Signal

    Standby Model <0.3W

    Video Input: VGA AV

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

    Board Size:110mm x 85mm x 10mm

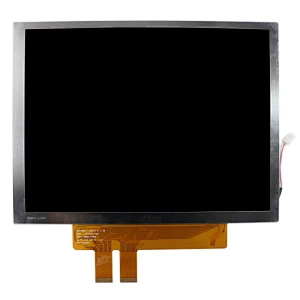

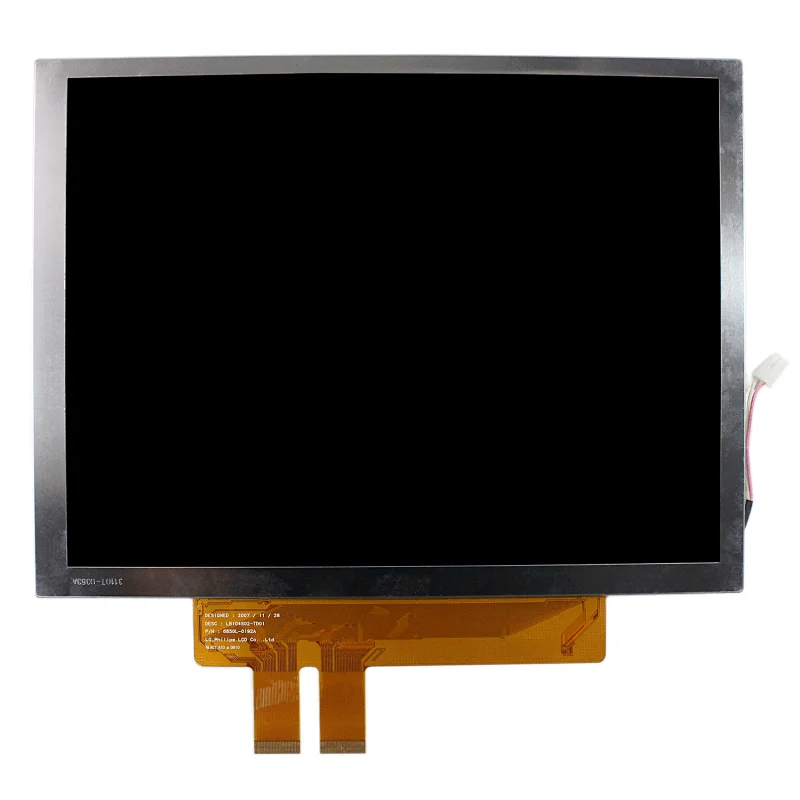

  • 10.4"LB104S02-TD01 800X600 LCD Screen:

    Display Mode  TN, Normally White, Transmissive

    Resolution 800（RGB)×600

    Outline Size 234.7 × 178.6×6.3(H×V×D)

    Display Area 211.2× 158.4 (H×V)

    Brightness 250 cd/m² (Typ.)

    Contrast Ratio 400:1 (Typ.) (TM)

    Viewing Angle 65/65/45/65 (Typ.)(CR≥10) [Left / Right / Up / Down]

    Signal Interface Parallel RGB (1 ch, 6-bit) , FPC , 60 pins

    Backlight  1 CCFL

    Input Voltage  3.3V (Typ.)

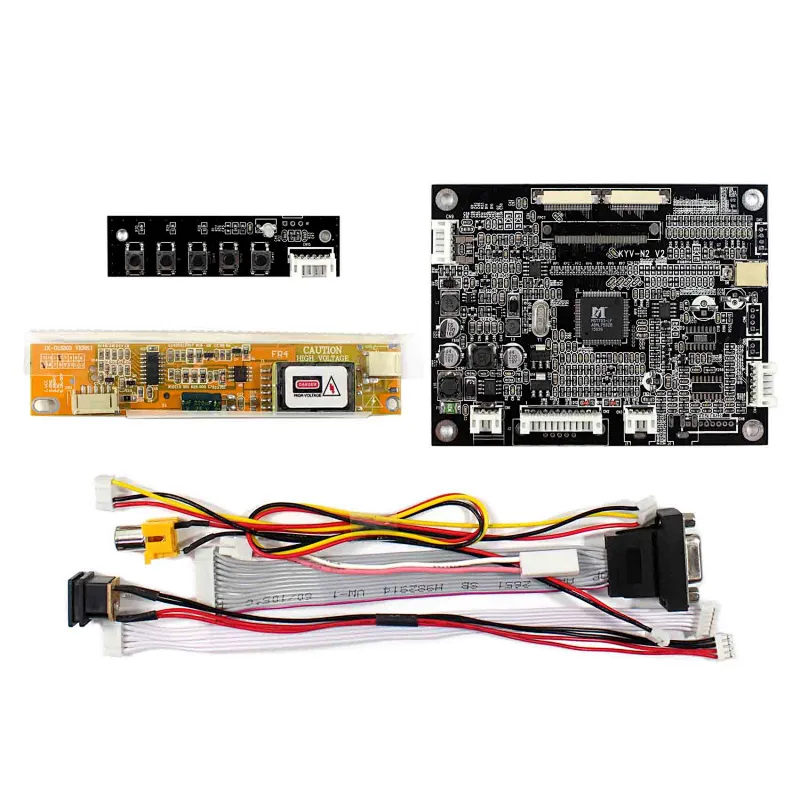

  • Packing list :

    1× VGA+AV LCD Controller Board KYV-N2 V2

    1× 10.4inch LB104S02-TD01 800X600 LCD Screen

    1× Inverter Board

    1× Power Supply Cable

    1× VGA Cable

    1× AV Cable

    1× Keyboard With Cable
