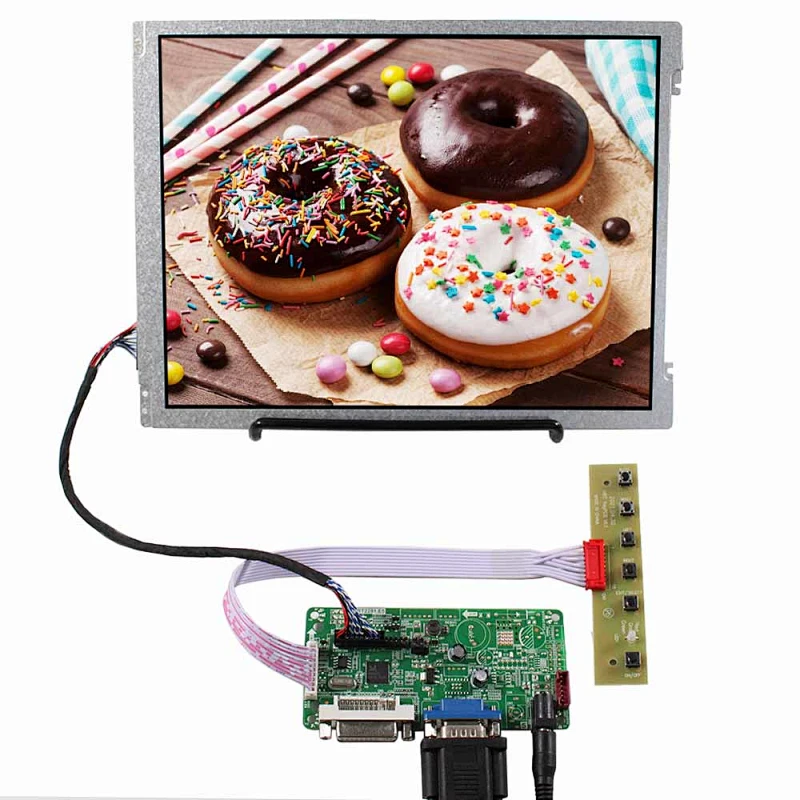

10.4" M104GNX1 1024X768 LCD Screen with DVI VGA Driver Board 1024x768 dvi lcd dvi vga 1024x768 vga M104GNX1 10.4" lcd screen

Model NO.
K001154 RT2281+M104GNX1 1024x768
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

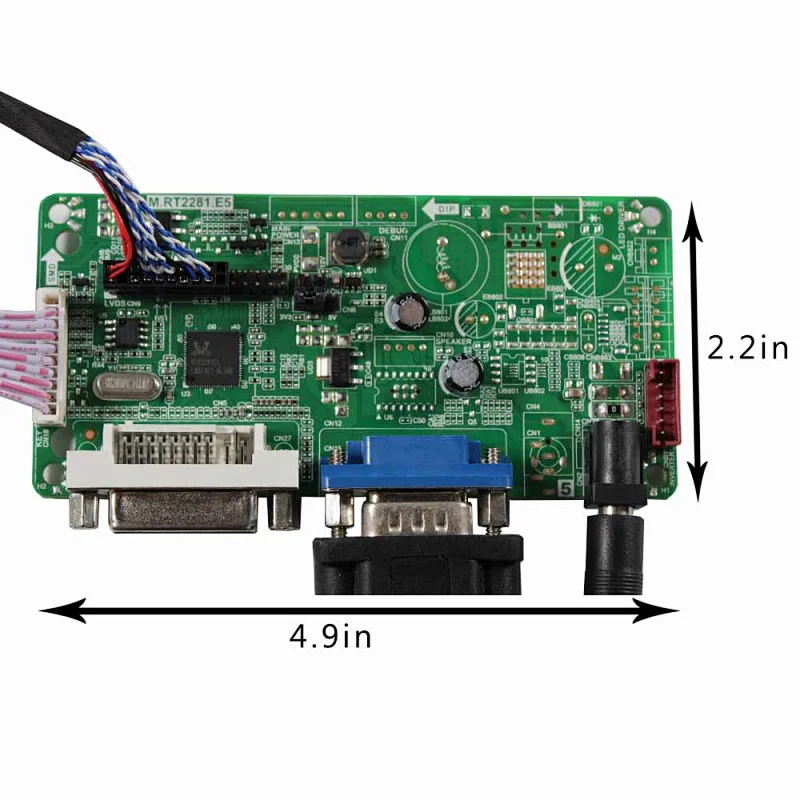

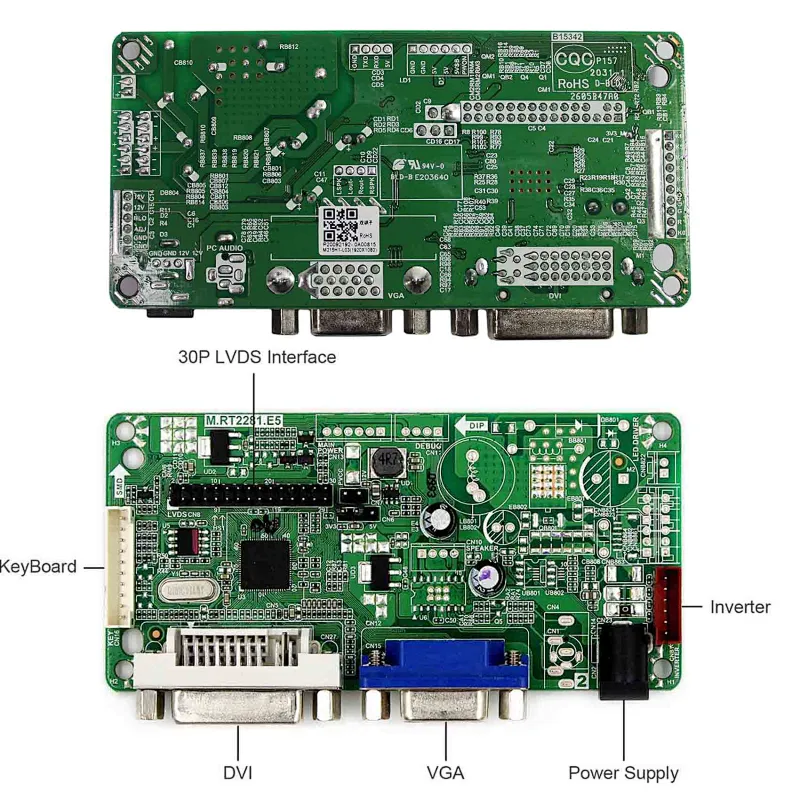

  • LCD Controller Board:

    DVI VGA LCD Board Work for LVDS Interface LCD Screen

    Input Power Adapter:12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <1W

    Video Input: DVI VGA

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

    Board Size:125mm x 58mm x 17mm

  • 10.4"M104GNX1 1024X768 LCD Screen:

    DisplayModeTN, Normally White, Transmissive

    Resolution 1024RGB)×768

    Outline Size 236× 176.9× 6.3(H×V×D)

    Display Area 211.2× 158.4(H×V)

    Brightness 350 cd/m² (Typ.)

    Contrast Ratio 800:1 (Typ.) (TM)

    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

    Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector

    Backlight WLED

    Input Voltage 3.3V (Typ.)

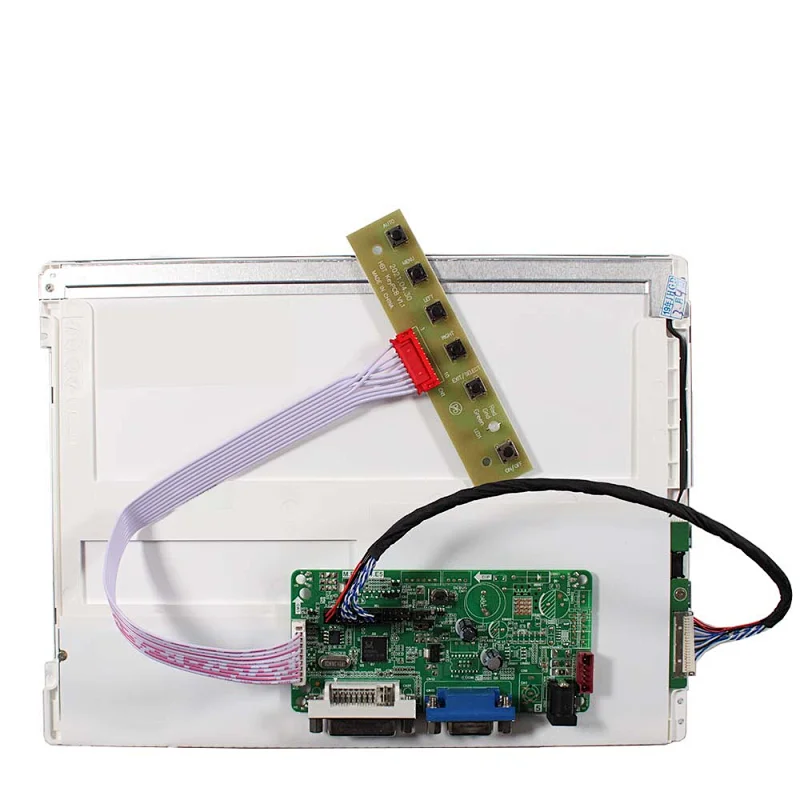

  • Packing list :

    1× VGA+DVI LCD Controller Board RT2281

    1× 10.4inch M104GNX1 1024X768 LCD Screen

    1× LVDS Cable

    1× Backlight Cable

    1× Keyboard With Cable
