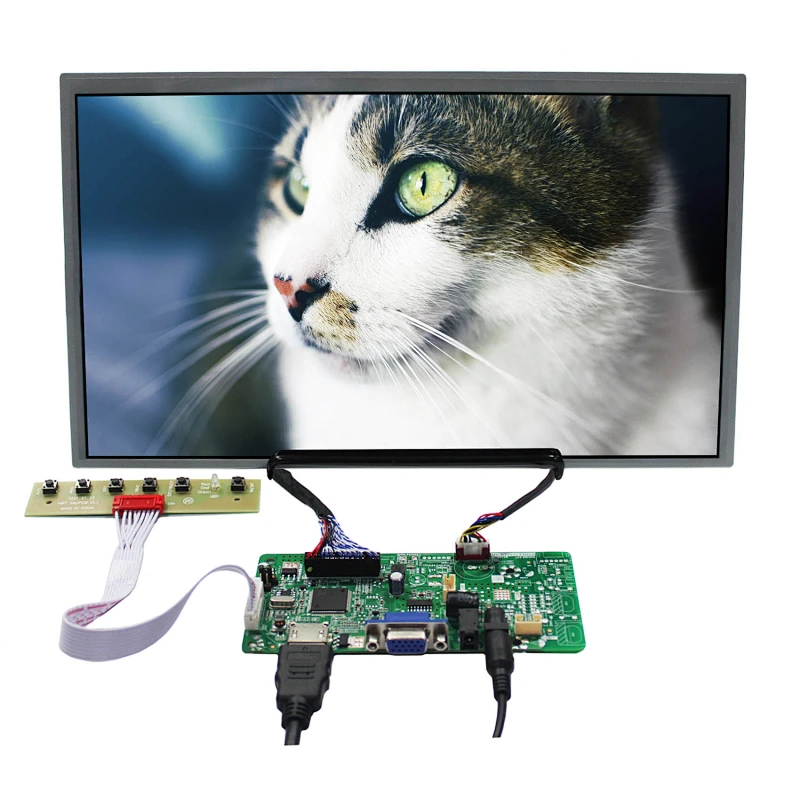

13.3" LQ133M1LW02 1920X1080 LCD Screen with HDMI VGA Board lcd screen with vga output hdmi lcd vga monitor hdmi vga lcd monitor vga with hdmi 13.3inch lcd screen LQ133M1LW02 1920x1080 lcd screen

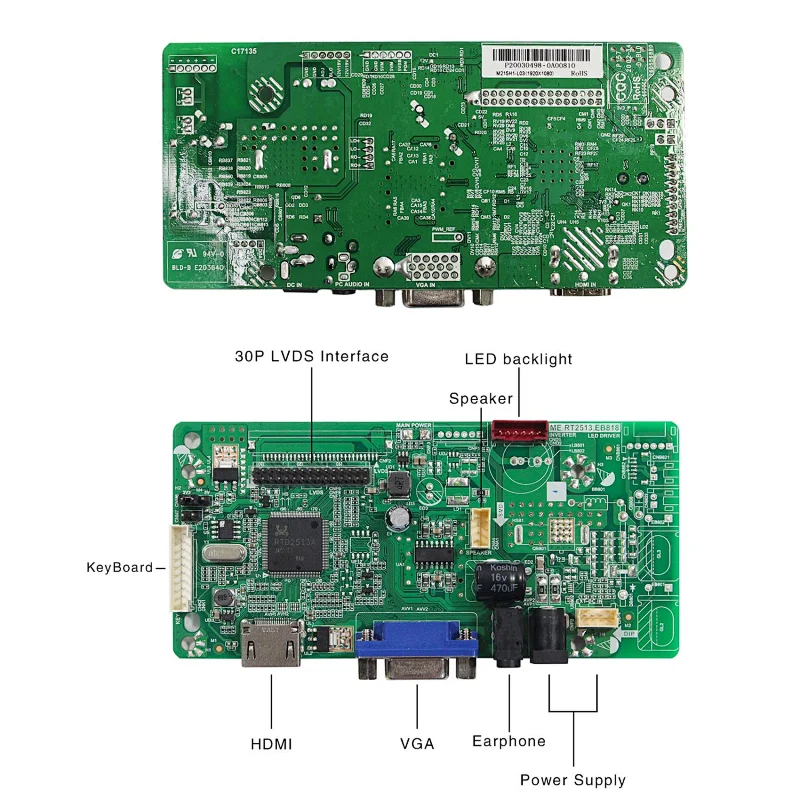

HD-MI VGA Audio LCD Board for 30Pin LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <0.2W

Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)

Video Input: HD-MI VGA

VGA: Earphone Input

HDMI: Support HD-MI 1.4

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 130mm x 61mm x 12mm

Display Mode IPS, Normally Black, Transmissive

Resolution 1920RGB)×1080

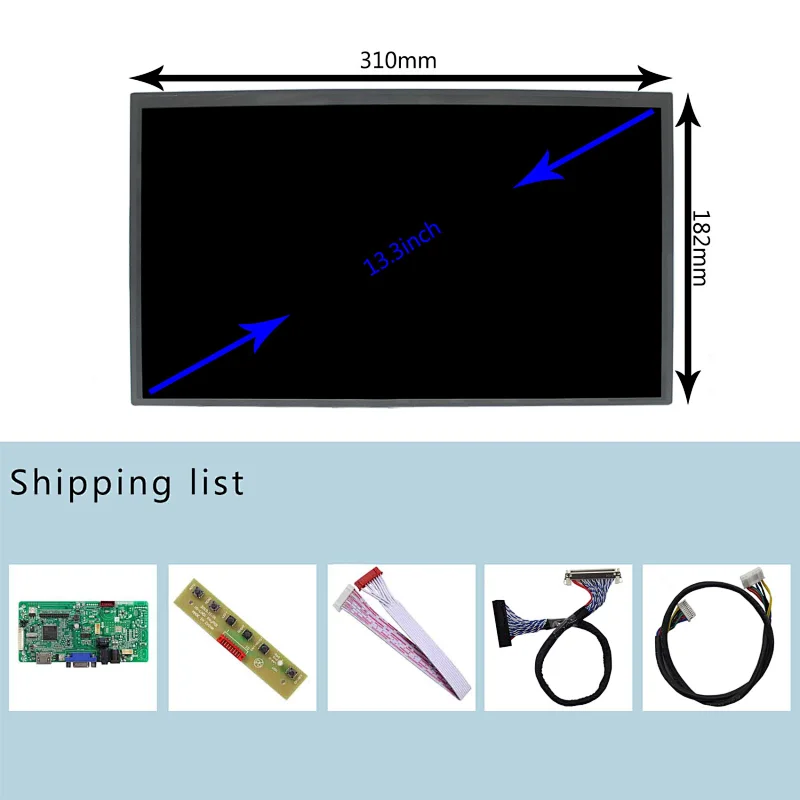

Outline Size 310.6 ×182.2×13.1 (H×V×D)

Display Area 293.76× 165.24 (H×V)

Brightness 400 cd/m² (Typ.)

Contrast Ratio 900:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface  LVDS (2 ch, 8-bit) , Connector , 30 pins

Backlight  WLED

Input Voltage  5.0V (Typ.)

1× HD-MI VGA LCD Controller Board RT2513-818

1× 13.3" LQ133M1LW02  1920X1080 LCD Screen

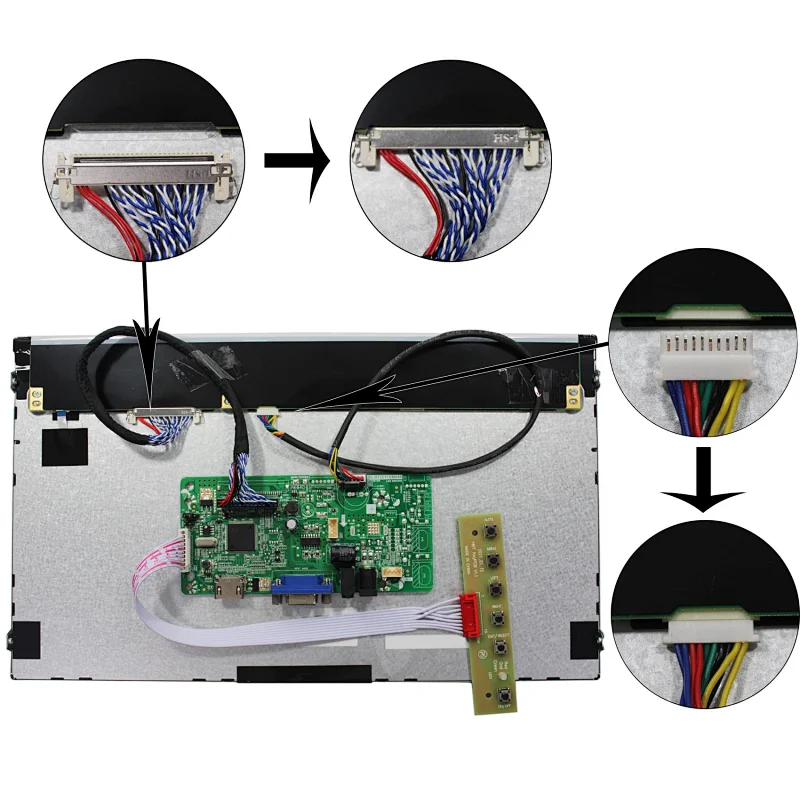

1× Backlight Cable

1× LVDS Cable

1× Keyboard With Cable
