13.3" 1920x1080 30pin EDP LCD Screen NV133FHM-N59 with HDMI Board 30pin to hdmi 1920x1080 edp lcd screen hdmi lcd board 30pin edp lcd screen NV133FHM-N59 13.3inch lcd screen

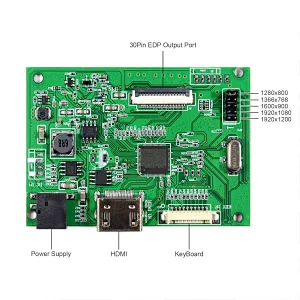

HDMI LCD Board Work for 30Pin eDP Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI Version 1.4

Audio Output: Support Speaker 4ohm 2W or 8ohm 1.5W

Firmware Change via Jumper Position

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 72mm x 51mm x 6mm

Display Mode  ADS, Normally Black, Transmissive

Resolution 1920RGB)×1080

Outline Size 300.56(W)×187.45(H) ×4(D) mm

Display Area 293.76(W)×165.24(H) mm

Brightness 400 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

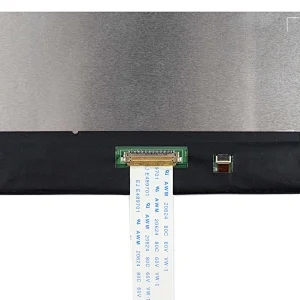

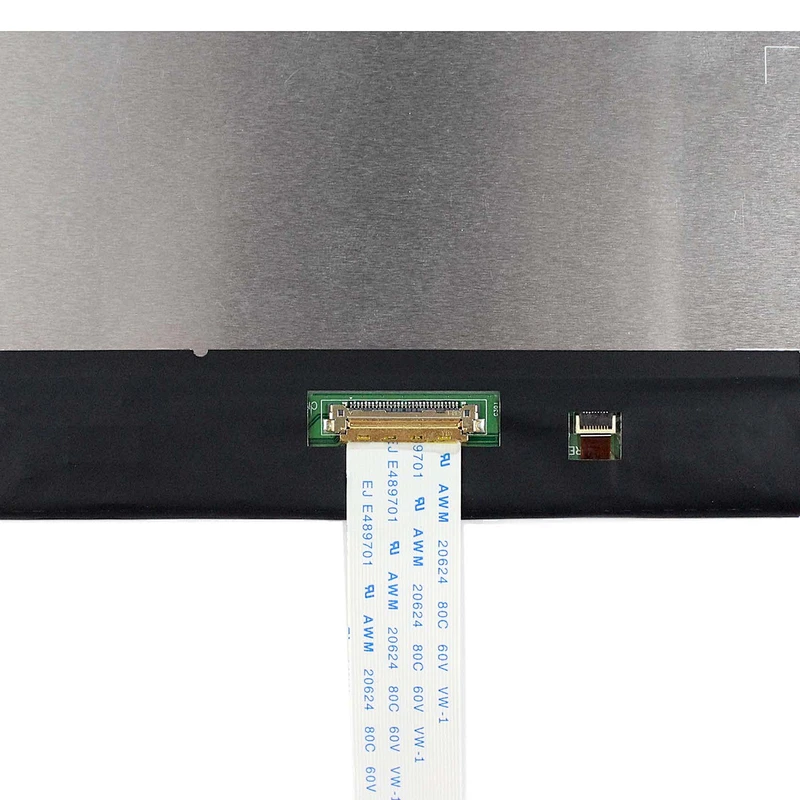

Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED

Input Voltage  3.3V (Typ.)

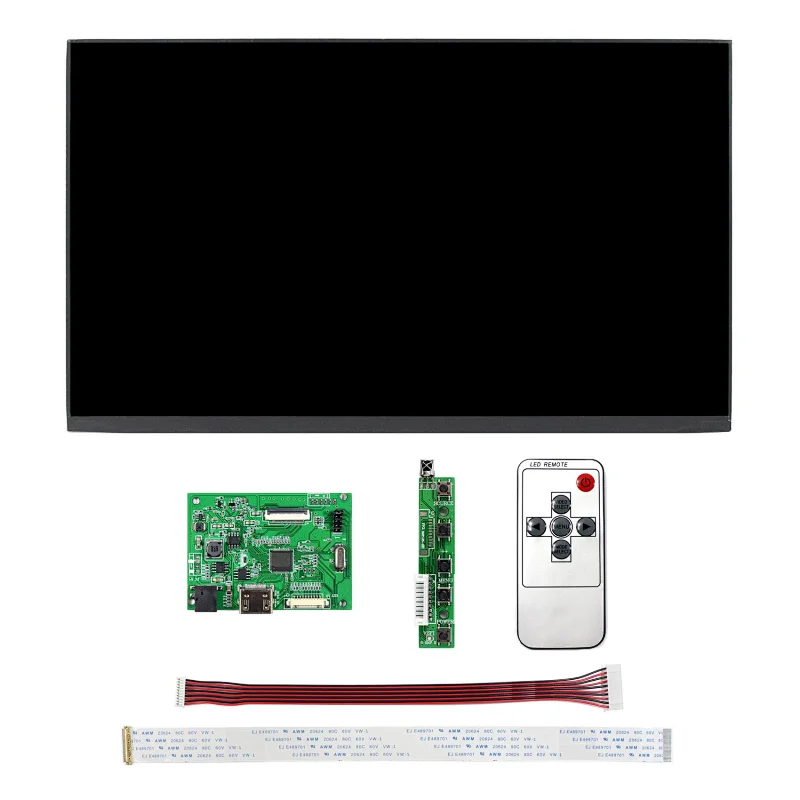

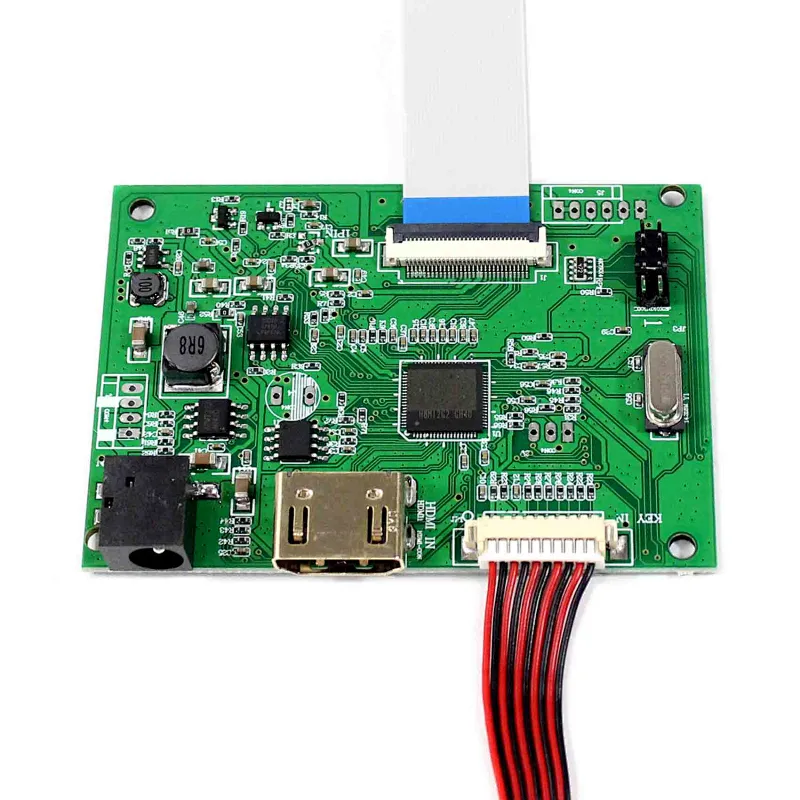

1× HDMI LCD Controller Board VS-TYEDP-V807

1× 13.3inch NV133FHM-N59 1920X1080 IPS LCD Screen

1× Signal Cable

1× Keyboard With Cable
