Model NO.
K002931 VS-RT2556T2K-40pin +VS133GF-Z001 1920x1080 LQ133M1JW03
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

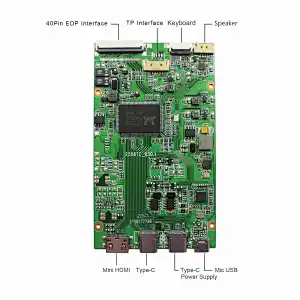

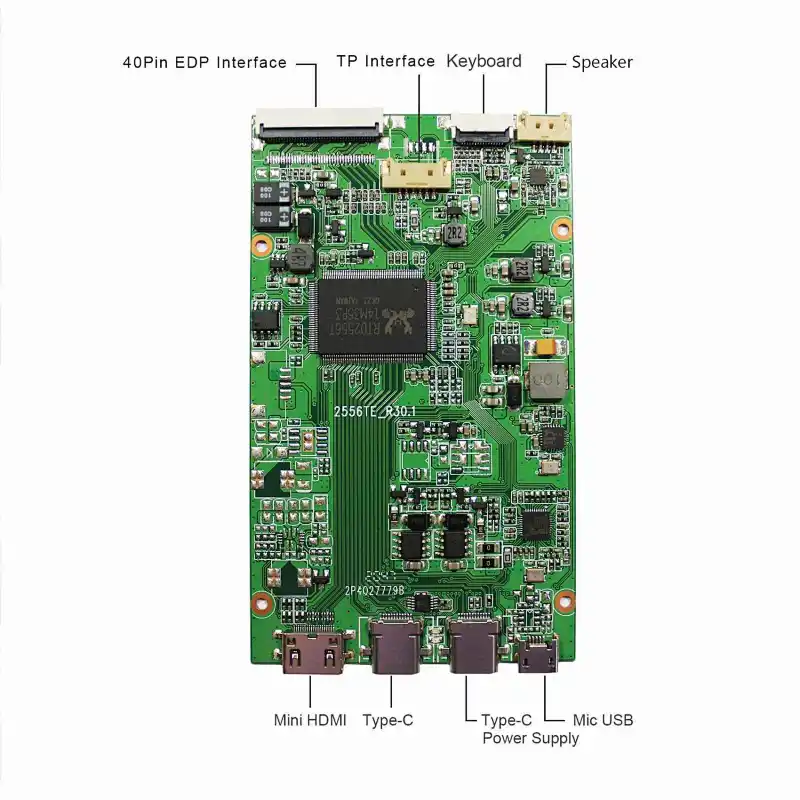

  • LCD Controller Board:

  • HD-MI Type C Control Board Work for 30Pin EDP LCD Screen

    Input Power Adapter: Type-C connector

    HDR: Support

    Come In Standby Model When Not Input Signal

    Standby Model <0.3W

    Input: Type-C Mini HD-MI

    Output: eDP USB (max 500mA)

    Audio Output: Speaker

    OSD: Brightness Contrast VOL+ VOL- Language And So On

    Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski

    Nederlands Korean Japanese

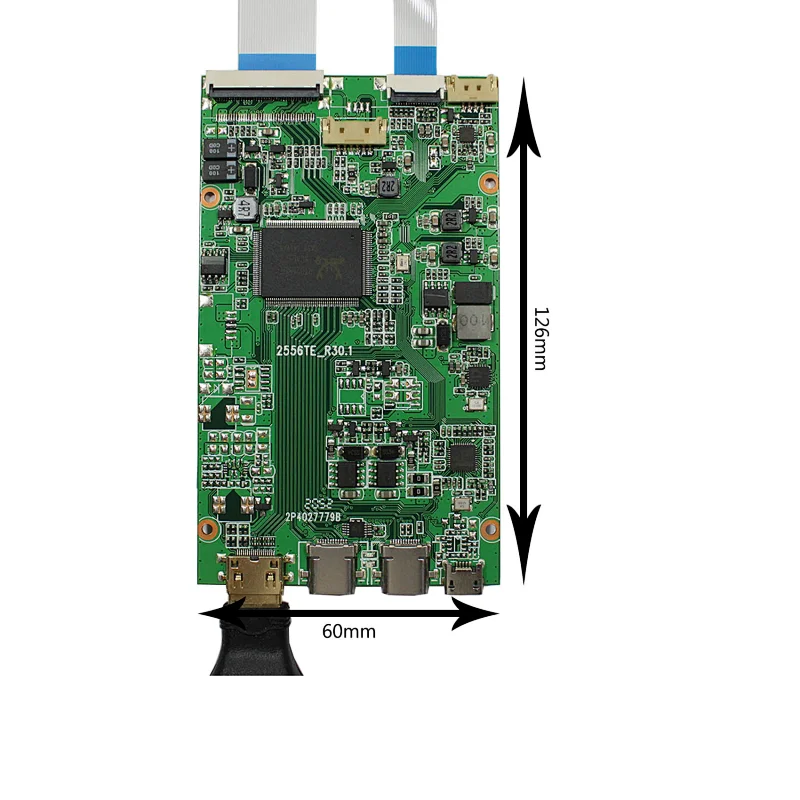

    Board Size: 126mm x 60mm x 4mm

  • 13.3"VS133GF-Z001 1920X1080 LCD Screen:

    Display Mode AAS, Normally Black, Transmissive

    Resolution 1920(RGB)×1080

    Outline Size 305.35×179.36×5mm(H×V×D)

    Display Area 293.7×165.2(H×V)

    Brightness 400 cd/m² (Typ.)

    Contrast Ratio 1000:1 (Typ.) (TM)

    Viewing Angle 88/88/88/88 (Typ.)(CR≥10) [Left / Right / Up / Down]

    Signal Interface eDP (4 Lanes), Connector, 30pins

    Backlight WLED

    Input Voltage 3.3V (Typ.)

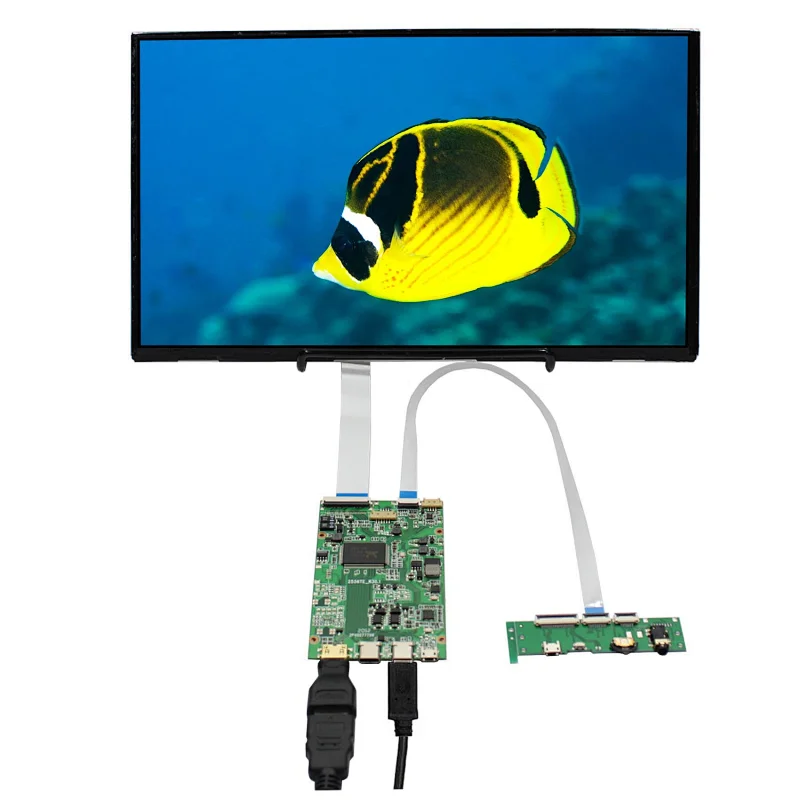

  • Packing list:
    1× 13.3inch VS133GF-Z001 1920X1080 IPS LCD

    1× HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2

    1× Signal Cable

    1× Keyboard With Cable
